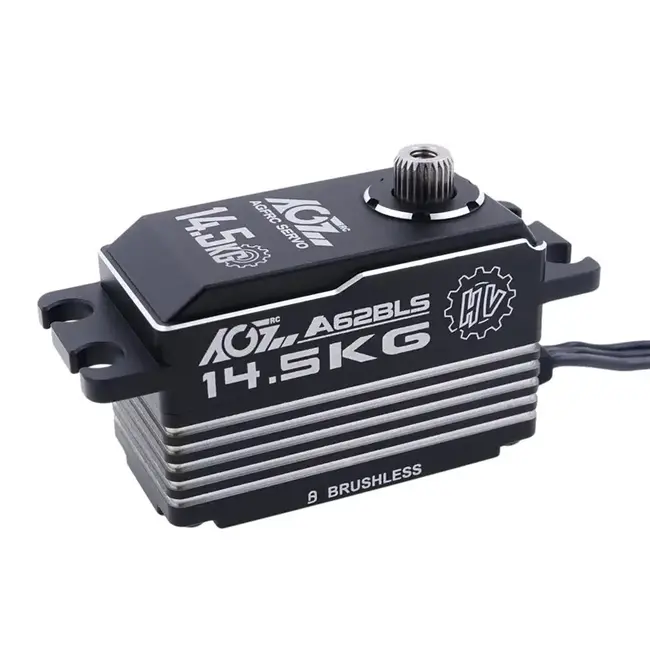

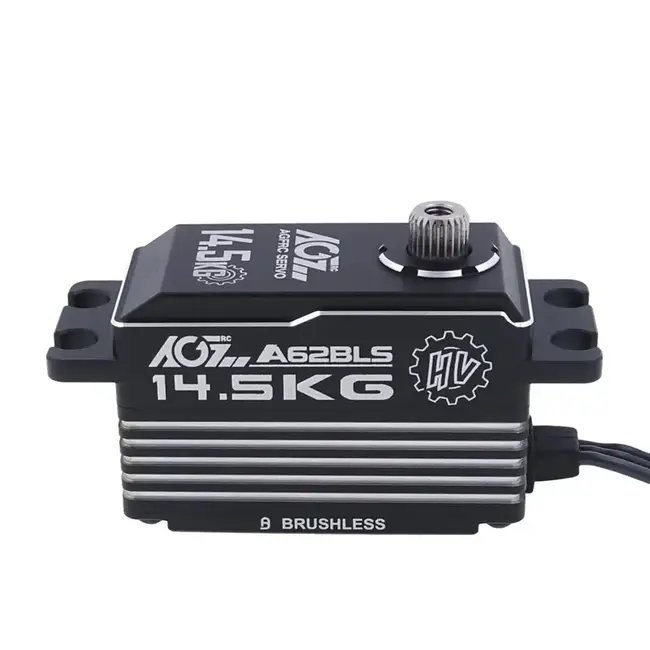

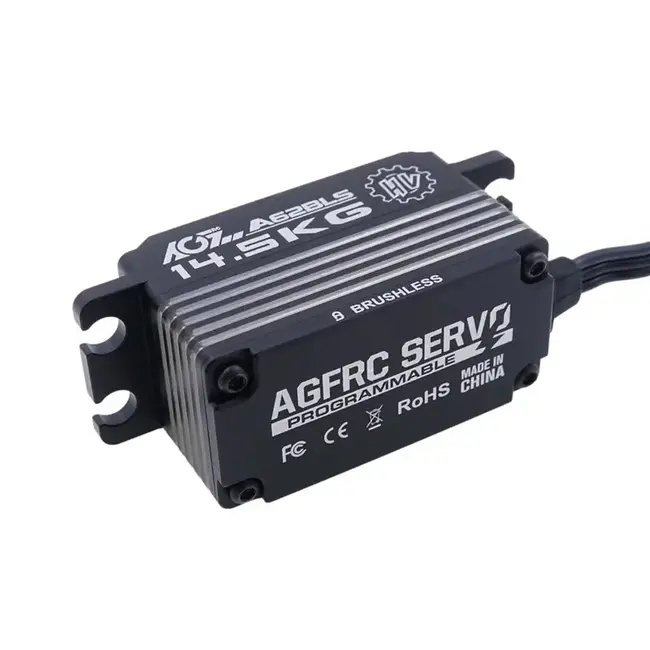

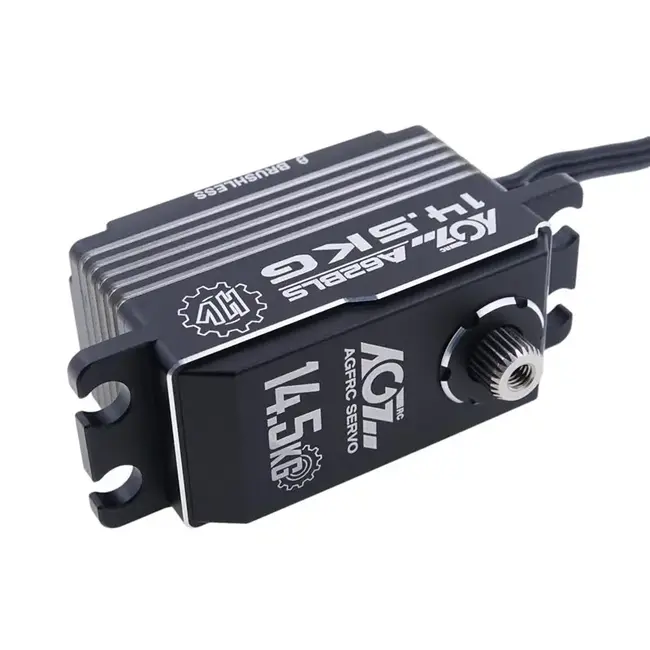

AGFrc 14.5KG Digital Low Profile Steering Servo High Speed Programmable Brushless RC Servo Full CNC Metal Gear for 1/10 RC Drift Racing Car Truck(A62BLS)

Feature

High performance Low Profile digital servo
High precision steel gears
High quality Brushless motor
Dual ball bearing

Full Aluminium Cooling Case

Water And Dust Resistance

Programmable Digital Circuit

Ideal for 1/10 1/12 on road, truck & plane, etc.

Stall Torque

• 10.0 kg-cm (139 oz-in) @ 4.8V
• 12.0 kg-cm (167 oz-in) @ 6.0V
• 13.5 kg-cm (188 oz-in) @ 7.4V
• 14.5 kg-cm (202 oz-in) @ 8.4V

Operating Speed

• 0.085sec/60° @ 4.8V
• 0.074sec/60° @ 6.0V
• 0.068sec/60° @ 7.4V
• 0.062sec/60° @ 8.4V

• Package Included
• Item 1:
• 1 x AGFRC A62BLS Low Profile Servo
• 1 x Accessory  Kit
•
• Item 2:
• 1 x AGFRC A62BLS Low Profile Servo
• 1 x AGF-SPV3 Servo Programmer
• 1 x Accessory  Kit
•
• Item 3:
• 1 x AGFRC A62BLS Low Profile Servo
• 1 x AGF-SPV3 Servo Programmer
• 1 x 25T Black Metal Servo Horn
•
• Note: Item 1 does not include the AGF-SPV3 servo programmer.
•

AGFRC

Item Name:

A62BLS

Control System:

Pulse width modulation control

Refresh Rate:

333Hz

Neutral Position:

1520uS

Signal Mode:

Digital

Dead band:

2 uSec

Operating Voltage:

4.8V ~ 8.4V

Operating Temperature:

-15C°~ +70C°

Bearing:

Dual Ball Bearing

Signal Range:

500 to 2500 uSec

Angle Sensor:

Potentiometer

Mechanical Angle:

220°

Motor Type:

Brushless

Motor Drive:

FET Drive

Horn Gear Spline:

25T-φ5.92mm

Programmable:

Yes

Bearing Material:

Metal

Gear Material:

Strength Steel+Titannium

Case Material:

AL6061T6

Certification:

CE,FCC,RoHs

Product Size:

40.8*20.2*26.5mm (1.61*0.80*1.04 inch)

Wire Guage:

JR 180mm /22AWG

Net Weight:

62g(2.19oz)
