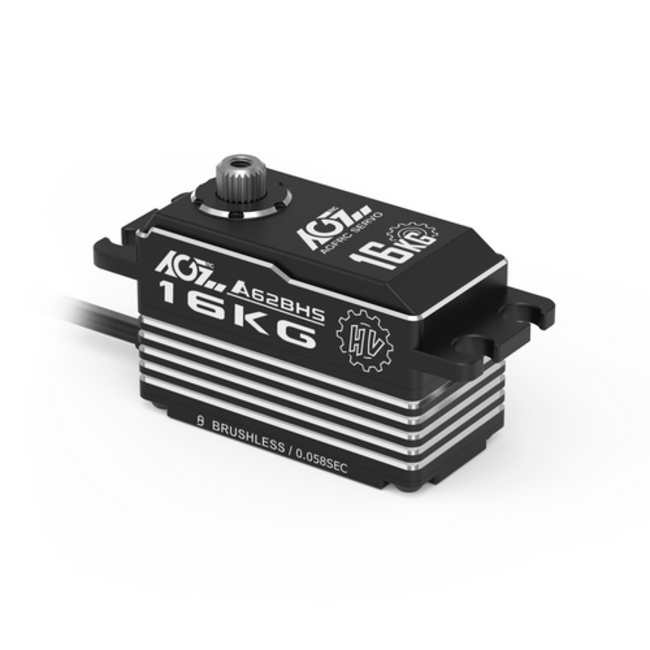

AGF A62BHS 10.0-16.0KG.CM 0.080-0.058sec/60° LOW PROFILE SERVO

The A62BHS digital brushless programmable low profile servo. This high-performance servo is designed with a heat sink CNC case, which can prevent hot and stuffy phenomena when the model is running. In addition, the long-life brushless motor and the smooth ball bearings support the operation of the internal structure of the servo, which can effectively work with the steel gear precisely.

Feature

High Performance Digital Servo

High Precision Steel Gears

Reliable Ball Bearings

Heat Sink Aluminum Case

Water And Dust Resistance

Programmable Digital Circuit

Ideal for Car, Boat, Airplane, Robot etc.

Specification

Item: A62BHS

Operating Voltage: 4.8-8.4V

Operating speed: 0.070sec/60° @ 6.0V

Operating speed: 0.065sec/60° @ 7.4V

Operating speed: 0.058sec/60° @ 8.4V

Stall Torque: 13.0 kg-cm (180 oz-in) @ 6.0V

Stall Torque: 14.5 kg-cm (201 oz-in) @ 7.4V

Stall Torque: 16.0 kg-cm (222 oz-in) @ 8.4V

Gear: Steel

Motor: BLS

Size: 40.8*20.2*26.5mm

Weight: 57.2g

Connector Wire: TYU 200mm / 22AWG
