AGFRC B24CLM 6KG 0.08Sec Titanium Gear High Speed Coreless Mini Wing 22g Micro Digital Waterproof Servo For 1/16E-Revo Slash 4WD

AGFRC B24CLM 6KG 0.08Sec Titanium Gear High Speed Coreless Mini Wing 22g Micro Digital Waterproof Servo For 1/16 E-Revo Slash 4WD

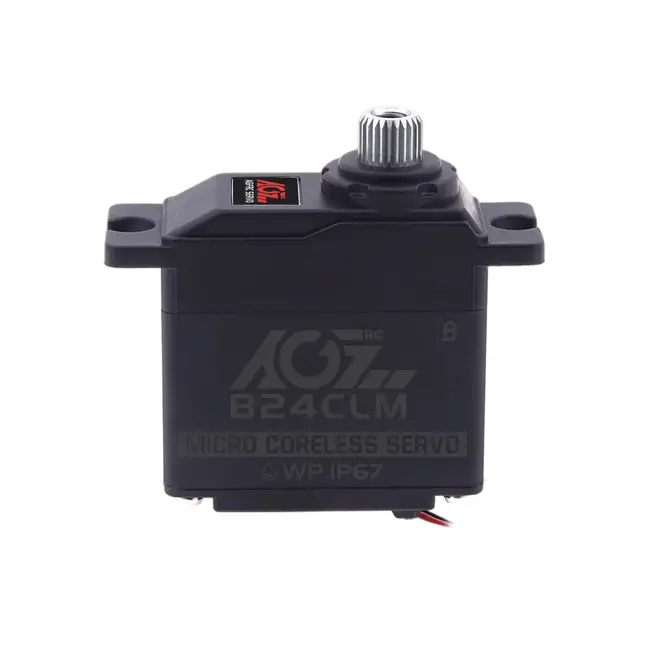

AGFRC released B24CLM IP67 waterproof mini servo, which is a upgrade replacement of Traxxas T2080. With the support of this waterproof function, the rc model can run in different scenarios such as wet, muddy, drizzle, stream, snow, etc., breaking the limitations of ground operation. And it's small size and 22g plastic light weight case, it can easily accommodate rc models to save more space. It has 8.4V 2S high voltage compatibility, adopts long-life coreless motor and double bearings design, with high-precision titanium gears, the maximum torque can reach 6.0KG and the speed of 0.085Sec. Perfect for Traxxas 1/16 E-Revo, Slash, Summit, Ken Block Fiesta, Kyle Busch Trucks, Mustang Boss 302, Rally VXL, and other vehicles.

Feature

* High Performance Digital Mini Servo * High Precision Titanium Gears * High Quality Coreless Motor * Reliable Silky Double Bearings * IP67 Grade Waterproof Function * Support Programmable Parameter  * Small Size And Light Weight Save More Space * Ideal for 1/16 Scale RC Car E-Revo, Slash 4WD, Robot, Boat, Plane, Helicopter, etc.

Specification

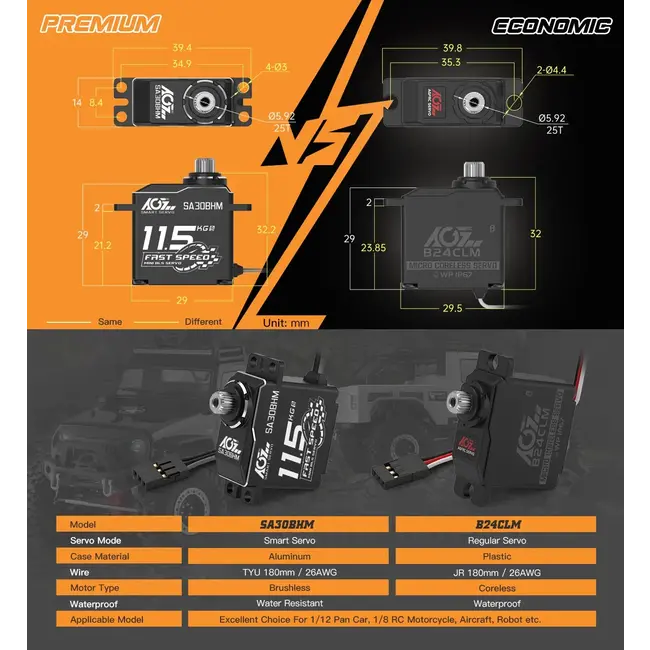

Model Name: B24CLM ​Operating Voltage: 4.8-8.4 V ​Operating speed: 0.140sec/60°@ 4.8V ​Operating speed: 0.115sec/60°@ 6.0V ​Operating speed: 0.100sec/60°@ 7.4V ​Operating speed: 0.085sec/60°@ 8.4V ​Stall Torque: 4.0 kg-cm (55.0 oz-in) @ 4.8V ​Stall Torque: 4.6 kg-cm (64.0 oz-in) @ 6.0V ​Stall Torque: 5.4 kg-cm (75.0 oz-in) @ 7.4V ​Stall Torque: 6.0 kg-cm (83.0 oz-in) @ 8.4V ​Gear: Titanium ​Motor: CLS ​Size: 30*10*30.5mm (1.18 x 0.39 x 1.20 in) ​Weight: 23g ​Connector Wire: JR 180 mm
