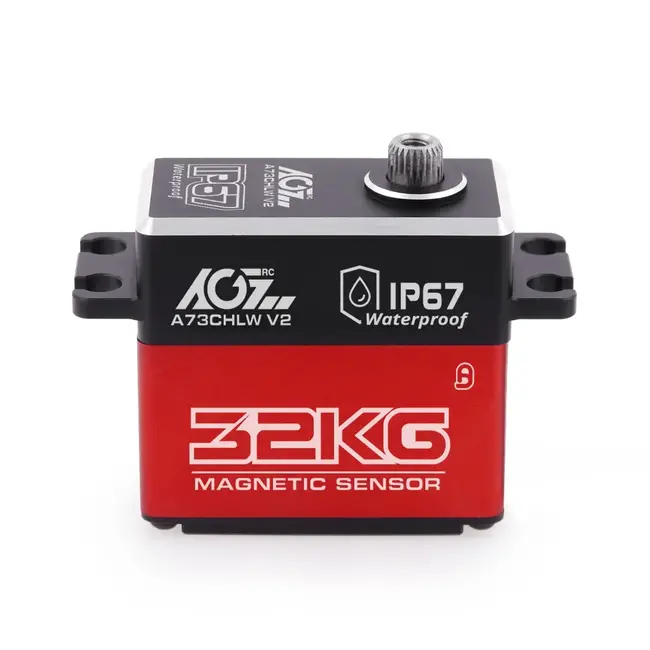

AGF 32KG High Torque Waterproof Programmable HV Digital Coreless Servo (A73CHLW V2)

AGFRC 32KG High Torque IP67 Waterproof Programmable Digital Coreless Servo with Magnetic Sensor for 1/10 Scale RC Car Boat, Control Angel 180°, (A73CHLW V2)

Affordable and practical programmable digital circuit IP67 waterproof standard servo A73CHLW V2 version is newly upgraded. It is more durable to be used in 10th scale rc models with harsh environments such as snow, rain, wet jungle, seaside, sand dunes, and mud, etc.

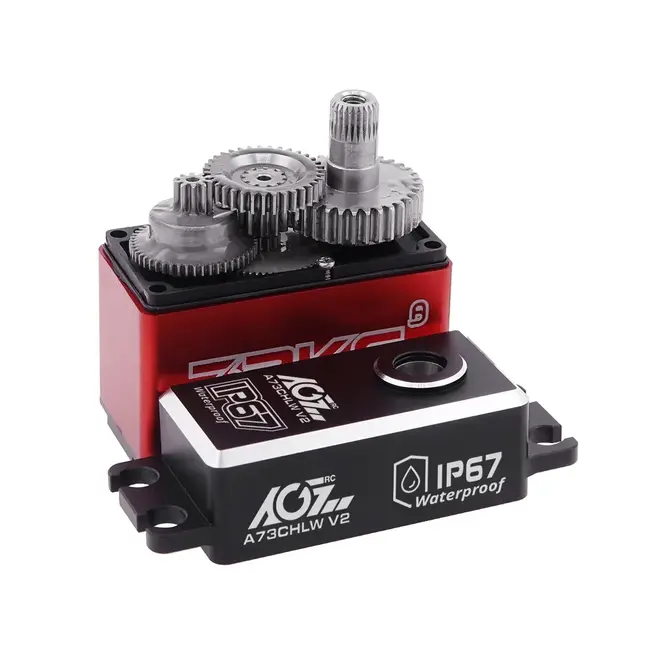

The A73CHLW V2 version is totally upgrade from motor to gear chain. Enhanced high-efficiency and long-life coreless motor, upgraded to the same powerful motor as A81 series coreless motor servo. Higher-precision and strong reinforced steel gears are used to effectively protect the internal structure of the servo. Thickened and strengthened to 2.0mm, which can resist the impact when the model is running, and the anti-collision performance is improved.

With these supports, the servos run more reliably and smoothly. In addition, The price of the V2 version is still very affordable, it can not only meet the requirements and applications of most enthusiasts, but also a budget servo with high cost performance.

Good idea for the remote control toy enthusiasts who want to DIY their RC models, also good choice for university professors and students who are interested in developing software for robot parts. It’s also a good choice for some of the industrial device applications.

Features

High Performance Standard Digital Servo

High Precision Magnetic Angular Position Sensor

Fully Waterproof Up To IP67 Grade

Reinforced Steel Gear And Pin Shaft

High Efficiency Coreless Motor

High Strength Dual Ball Bearings

Fast Cooling Aluminum Case

Ideal for 1/10 Rock Crawlers, Monster Trucks, Airplane, Helicopter and Engine etc.

Specification

A73CHLW V2

Operating Voltage: 4.8-8.4V

Operating speed: 0.160sec/60° @ 6.0V

Operating speed: 0.145sec/60° @ 7.4V

Operating speed: 0.135sec/60° @ 8.4V

Stall Torque: 26 kg-cm (361.07oz-in) @ 6.0V

Stall Torque: 29 kg-cm (402.73 oz-in) @ 7.4V

Stall Torque: 32 kg-cm (444.40 oz-in) @ 8.4V

Gear: Steel

Motor: Coreless

Size: 40*20*37.5mm (1.57 x 0.78 x 1.47 in)

Weight: 73.5g

Connector Wire: JR 300mm /22AWG
