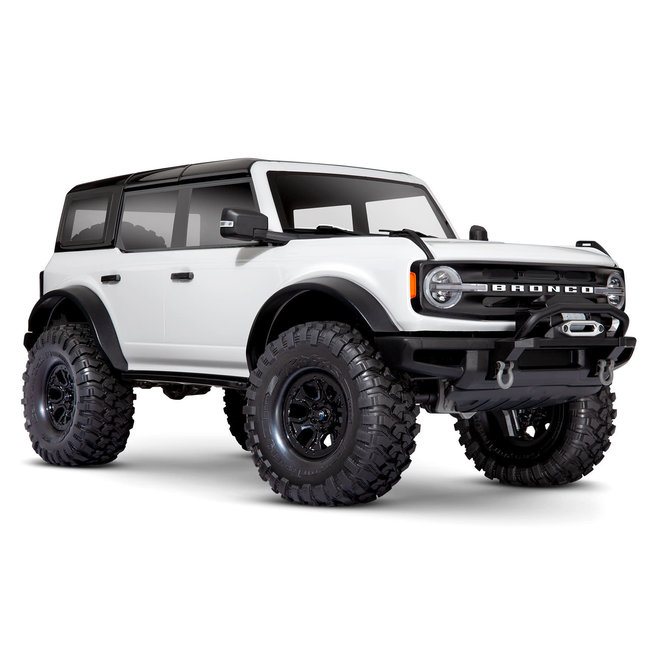

TRAXXAS TRX 4 2021 BRONCO WHITE REQUIRES BATTERY & CHARGER
The Legend Is Back!
After 25 years, the Bronco has returned as Ford’s top-performing 4X4 and America’s most sought-after SUV. Traxxas has captured the eagerly-anticipated Bronco in exacting detail with all the capability and versatility of the award-winning TRX-4. The Traxxas Bronco combines Ford-approved realism and class-leading performance for exciting off-road adventure no matter where the trail takes you.
A thick 1.5mm steel ladder frame with moulded cross members provides exceptional torsional rigidity to resist even the worst chassis twisting articulation. This extremely rigid backbone lets the suspension do the work it was designed to do. You’ll feel the difference on trails where the elimination of chassis flex allows for precise wheel placement when navigating technical terrain.
A heavy-duty metal servo horn comes standard on the TRX-4 Bronco.
The finer details matter so we incorporated wire retainers into the frame rails, which provide a clean look and keep the wiring more secure from off-road hazards.
TRX-4's main battery tray accommodates a full-length 5000mAh 3-cell LiPo or 7600mAh 2-cell LiPo for extended run times. A hinged battery strap provides quick and secure battery mounting without pins to lose in the field. The innovative strap flips over to adjust for different height batteries. A secondary front-mounted battery tray accepts smaller 1/16 scale Traxxas batteries to position weight directly over the front axle for maximum climbing traction on technical climbs.
Tough floor pans integrate with the wheel wells to enhance the scale appearance and keep debris out of the chassis.
Oil-filled coil-over GTS shocks were created exclusively for the TRX-4 chassis to smooth out even the roughest trails. These silver-anodized aluminum shocks deliver silky-smooth damping and feature threaded bodies for easy ride height adjustment. The convincing scale realism looks great and they perform even better with an O-ring cap seal and dual X-ring shaft seals.
Thick 5mm diameter steel links feature tough, fully-captured heavy-duty rod ends with steel hollow balls for exceptional strength and durability. This is one rig that won't strand you on the trail with a broken suspension link.
The TRX-4 uses tough hex hardware throughout for improved strength and easy servicing.
TRX-4 2021 Ford Bronco Specifications
- Vehicle Specs
- Motor Specs
- ESC Specs
- Features List
- What's Included
Length (overall): | 22.98 inches (584mm) |
Length (chassis): | 21.59 inches (549mm) |
Front Track: | 9.78 inches (249mm) |
Rear Track: | 9.78 inches (249mm) |
Ground Clearance: | 3.14 inches (80mm) |
Weight: | 6.42lb (2.91kg) |
Height: | 9.4 inches (239mm) |
Wheelbase: | 12.8 inches (324mm) |
Front Shock Length: | 3.54 inches (90mm) |
Rear Shock Length: | 3.54 inches (90mm) |
Front Wheels: | 1.9 x 1.02 inches (49 x 26mm) |
Rear Wheels: | 1.9 x 1.02 inches (49 x 26mm) |
Front Tires: | 4.64 x 1.89 inches (118 x 48mm) |
Rear Tires: | 4.64 x 1.89 inches (118 x 48mm) |
Approach Angle: | 52° |
Departure Angle: | 49° |
Breakover Angle: | 58° |
Hex Size: | 12mm |
Speed Control: | XL-5 HV |
Motor (electric): | 21T Reverse Rotation |
Transmission: | 2-speed Hi-Lo, Remote Shifting |
Gear Pitch: | 32P |
Differential Type: | 4 Gear, Remote Locking |
Chassis Structure / Material: | Steel Ladder Frame with Nylon Composite Crossmembers |
Brake Type: | Electronic “Hill Hold” |
Drive System: | Shaft Driven 4WD |
Steering: | Chassis Mounted Servo |
Servo: | 2075X Metal Gear |
Transmitter: | TQi™ 2.4 GHz 4-Channel Transmitter |
Receiver: | 6533 |
Skill Level: | 1 |
Battery Tray: | 158.75 L x 47 W x 23/26mm H |
Car | |
---|---|
Assembly Type: | Ready to Run |
Max LiPo Power: | 3S (11.1v) |
Size (Scale): | 1/10 |
Skill Level: | Intermediate |
Power Source: | Electric Brushed |
Chassis Type: | Rock Crawler |
On/Off Road: | Off Road |
Drivetrain: | 4WD |
Factory specs | |
---|---|
Max LiPo power: | 3S (11.1v) |
Battery connector: | Traxxas iD |
Front shock oil: | 30w |
Rear shock oil: | 30w |
Front differential oil: | 30,000w |
Rear differential oil: | 30,000w |
Pinion gear: | 11T 32dp/0.8Mod |
Spur gear: | 45T 32dp/0.8Mod |
Wheel hex size: | 12mm |
