The Ideal 1/10 Scale RC Car for Off-Road Adventures
Authorized by Toyota, this 1/10 Land Cruiser 80 from FMS Models adopts FCX10 simulation crawler chassis, which faithfully restores the off-road performance of the original car.

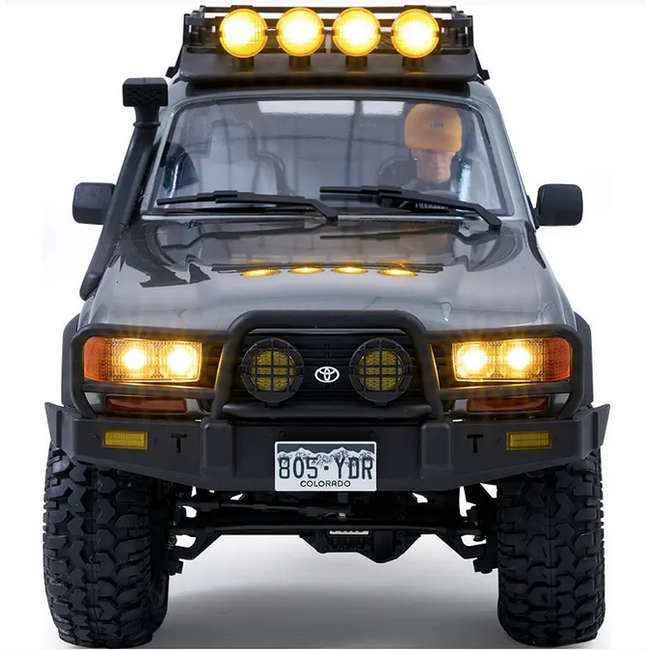

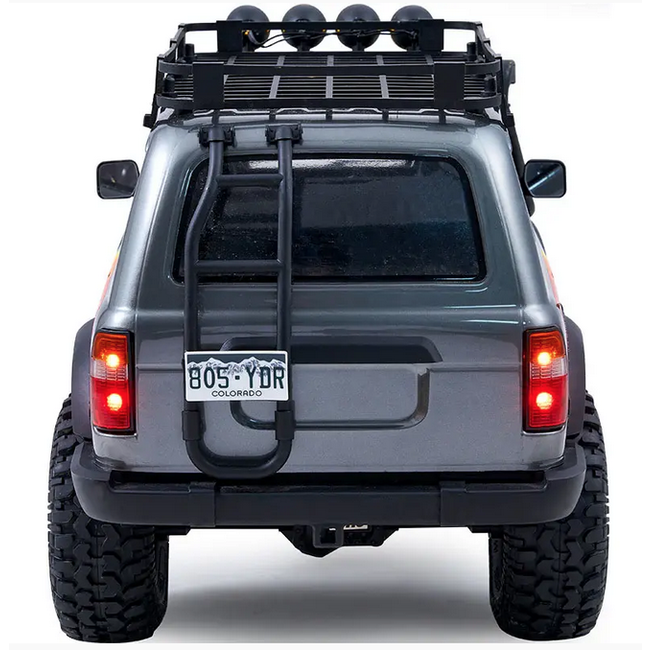

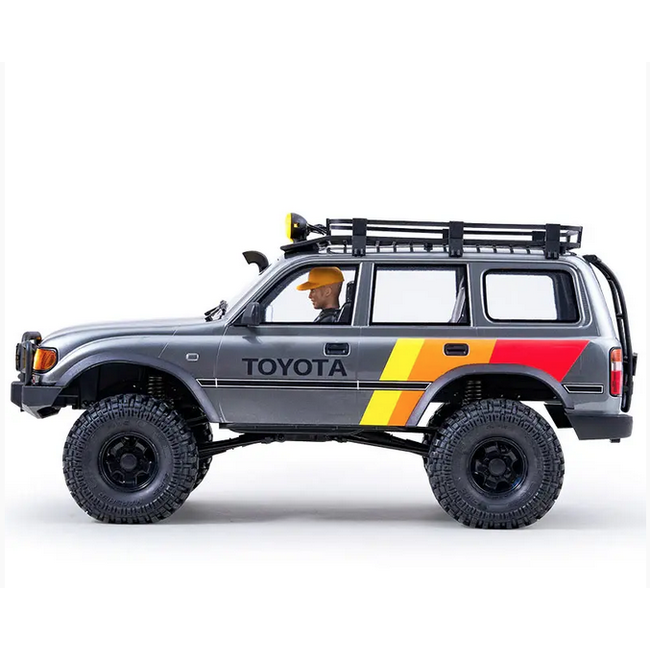

In terms of appearance, FMS still maintains a consistently high standard. The car body, made of durable PC material, features integrated mirrors and waders, enhancing its realistic look. Through the transparent window, you can see an incredibly detailed interior, featuring a realistic driver figure, a finely crafted dashboard and other meticulous interior details. The roof is equipped with a luggage rack and four off-road lights. There is a climbing ladder at the rear. The vehicle comes pre-installed with headlights, front turn signals, side turn signals, rear turn signals, reverse lights, and other lighting components. The car shell uses a magnetic interface to draw power from the chassis, allowing the lights of the entire vehicle to be activated with a single button on the radio control. Additionally, we also have pre-installed fenders to keep mud from spilling onto the body and chassis.

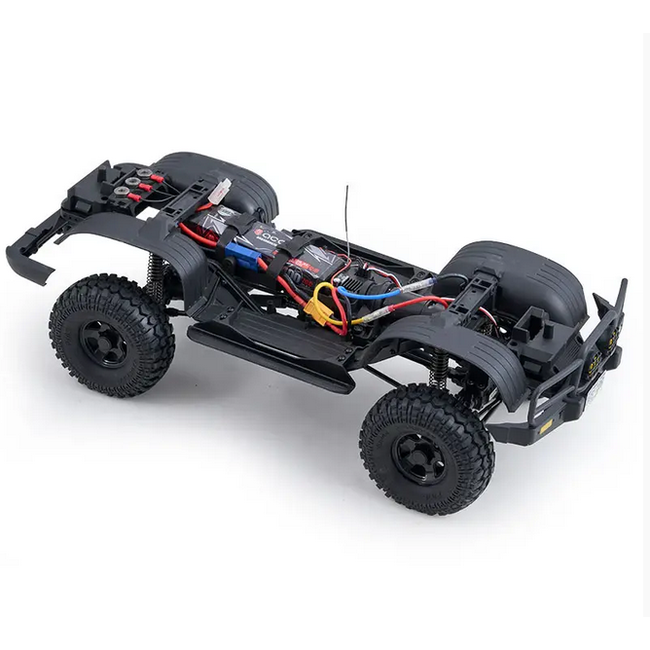

The whole chassis adopts the mainstream mid-front power layout, four-link suspension. To better restore the real car, the front and rear solid axle design is adopted, which is more conducive to improving the stability of control when driving. The mid-front motor and transmission, as an integrated unit, have a lower center of gravity compared to similar products, resulting in a lower rolling center and reduced likelihood of rollovers. Meanwhile, there is a metal-gear waterproof servo placed in the side of the battery compartment, responsible for switching high and low speeds.
In terms of the convenience of daily maintenance, FMS also gives you good consideration. The battery compartment can be flipped back or "quick release." All the electronic equipment is concentrated in the middle of the chassis, so it is very convenient for daily maintenance or removal and replacement. Thanks to our R&D capabilities, we have innovatively designed a knob-type quick release structure (this structure has been patented), and at the same time, the power and signal cables of the lights are perfectly integrated with the magnetic module.
Except for the adventurous heart, you don't need to prepare any other things. FMS will take you on an off-road journey!
Features:
- TOYOTA authorized car body
- Detailed interior
- Rich lighting effects
- LC80 exclusive wheel hub
- Offroad front bumper (daytime light included)
- High and low speed transmission
- Solid axle
- Quick release structure (patented)
- Magnetic light control
- Metal height adjustable shock absorber
- Metal gears
- Full ball bearing

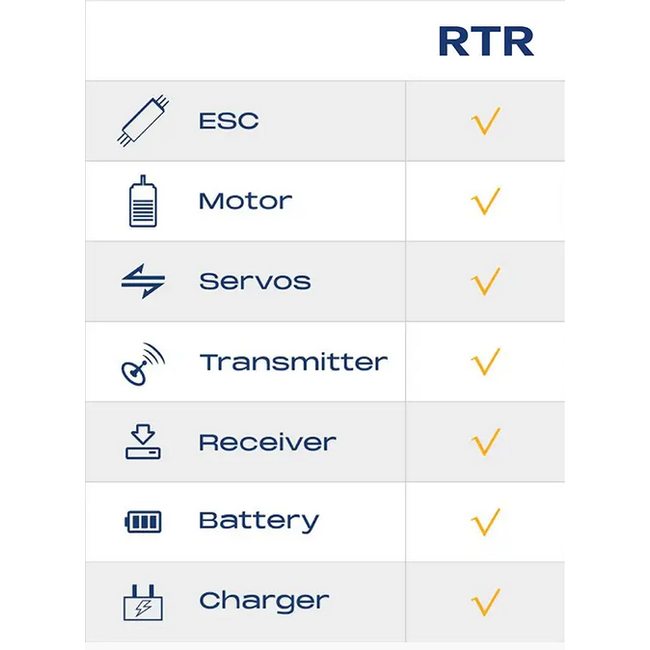

What's in the box:
- 1 x 1:10 FCX10 LC80 Toyota Land Cruiser 80 RS
- 1 x 2.4GHz MG6 Radio
- 1 x 2-in-1 R6D Receiver / 60A ESC (installed)
- 1 x Product Manual
Need to Complete:
- 4 x AA Batteries for Transmitter
- Battery & Charger for Kit (Recommended 2S 5000mAh, 3S 5000mAh XT60 plug)
Specification:
- Product Size: 572*251*288mm
- Steering Type: Front 2WS
- Drive System: 4WD
- Waterproof Class: Splash-proof
- Motor: 550 32T Brushed Motor
- Bearing: Full Bearing
- Driving Speed (Low & High Gear): 10km/h / 22km/h
- Steering Servo: 25KG Metal Gear 25.5Kg.cm (Waterproof)
- Shift/Differential Servo: 13g Metal Gear servo
- Remote Distance: 150m in clear space
- Battery Compartment Size: 140*47*40mm
- Play Time: 30min (3S 5000mAh 35C)
 - Wheel Base: 325mm
- Tread: 203mm
- Tire Size: D: 120mm, W: 46mm
- Wheelhub Size: D:66mm, W: 26mm
- Wheelhub Adaptor Size: 12mm
- Ground Clearance: 76mm
- Approach Angle: 51°
- Departure Angle: 42°
- Breakover Angle: 55°
- Maximum Steering Angle: 45°
- Maximum Climbing Angle: 60°(artificial turf)
- Motor Gear Pinion: 10T
- Motor Gear Pitch: 0.8P
- Spur Gear Pinion: 47T
- Spur Gear Pitch: 0.8P
