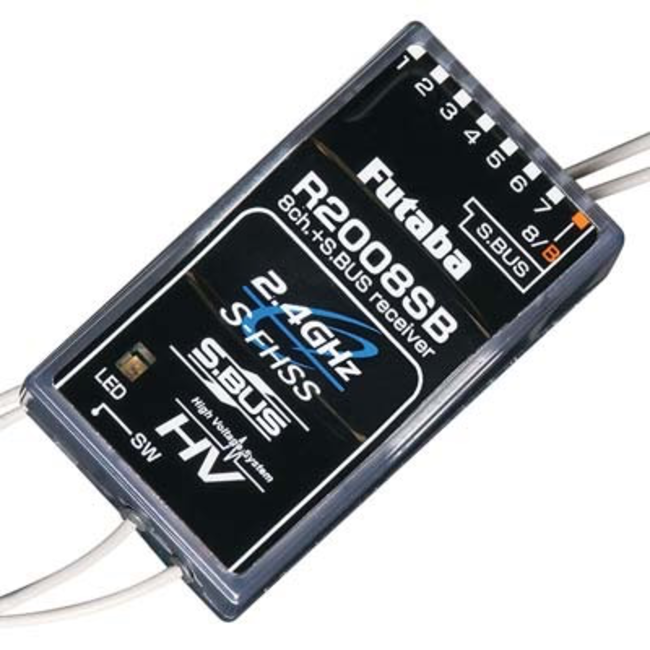

Futaba R2008SB S.Bus 8-Channel S-FHSS ReceiverFEATURES
For aircraft models
Dual Antenna Diversity
High voltage operation (4.8 - 7.4V)
Frequency hopping Spread Spectrum design
S.Bus system output port and conventional system channel outputs,
may also be used with conventional (non S.Bus) system servos
One year limited warranty through Hobby Services beginning at date of
purchase
INCLUDES
R2008SB 2.4GHz S.Bus S-FHSS 8 Channel Receiver with Instruction Sheet
SPECIFICATIONS
Modes: S-FHSS or FHSS
Voltage Input: 4.8V-7.4V battery or regulated output from ESC
Capable of 4 channels only in FHSS mode
Compatible Batteries: NiCd, NiMH, LiPo, LiIon or LiFe
Dimensions: 0.98 x 1.69 x 0.55 in (24.9 x 42.8 x 14.0 mm)
Weight: 0.34 oz (9.5 g)
