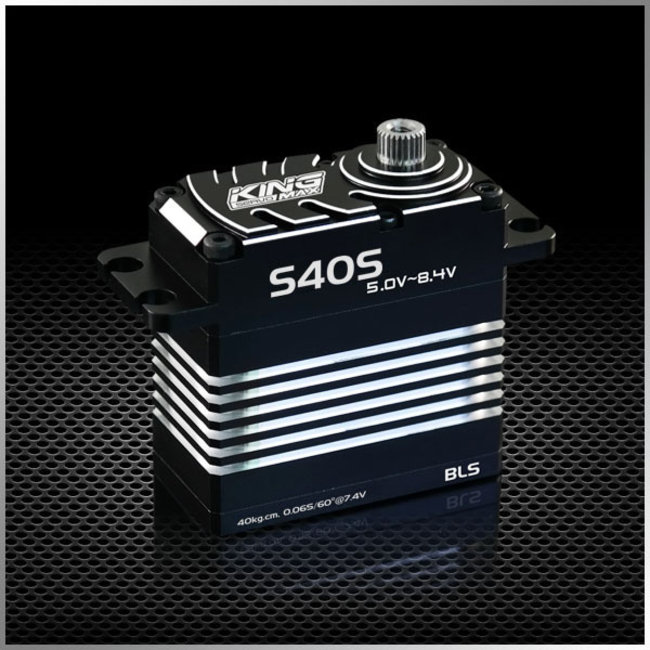

KINGMAX S40S--89g 40kg.cm,digital,steel gear standard servo AVAILABLE EARLY APRIL

FEATURE:

-- High performance, digital standard servo

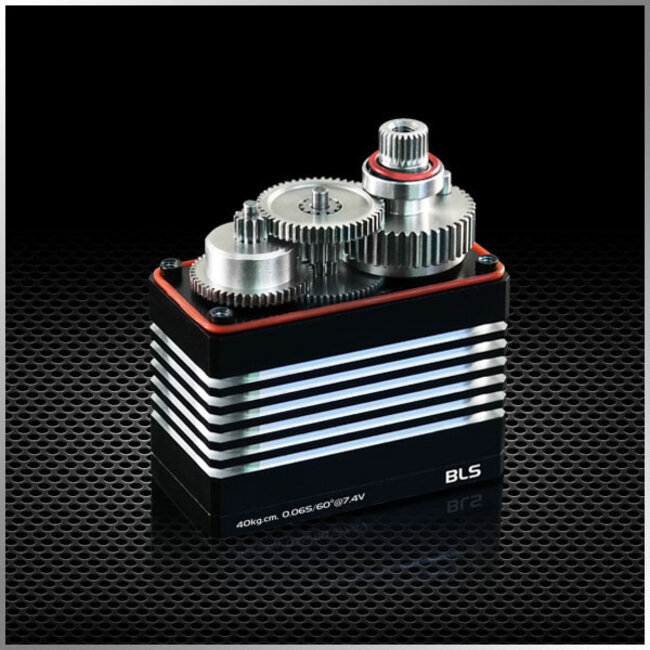

-- High-precision steel gears

-- Full CNC aluminium hulls and structure

-- High quality brushless motor

-- Dual ball bearings

-- Super long life

-- Waterproof

SPECIFICATIONS:

Operating Speed(5.0V):0.10sec/60degrees

Operating Speed(6.0V):0.08sec/60degrees

Operating Speed(7.4V):0.06sec/60degrees

Operating Speed(8.4V):0.05sec/60degrees

Stall torque(7.4V):40kg.cm(555.60oz/in)

Maximum working torque(7.4V):30kg.cm(416.70oz/in)

Rated working torque(5.0V):16.5kg.cm(229.18oz/in)

Rated working torque(6.0V):20.5kg.cm(284.74oz/in)

Rated working torque(7.4V):22.0kg.cm(305.58oz/in)

Rated working torque(8.4V):25.0kg.cm(347.25oz/in

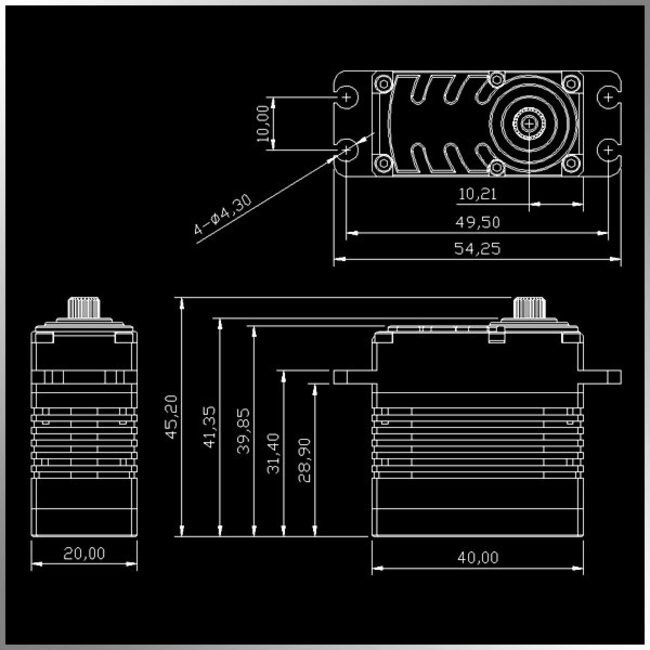

Dimensions:40*20*39.8mm/1.56X0.78X1.55in

Weight:89g(3.13oz)

Connector Wire Length:JR300mm(11.7in)

Packing Detail:

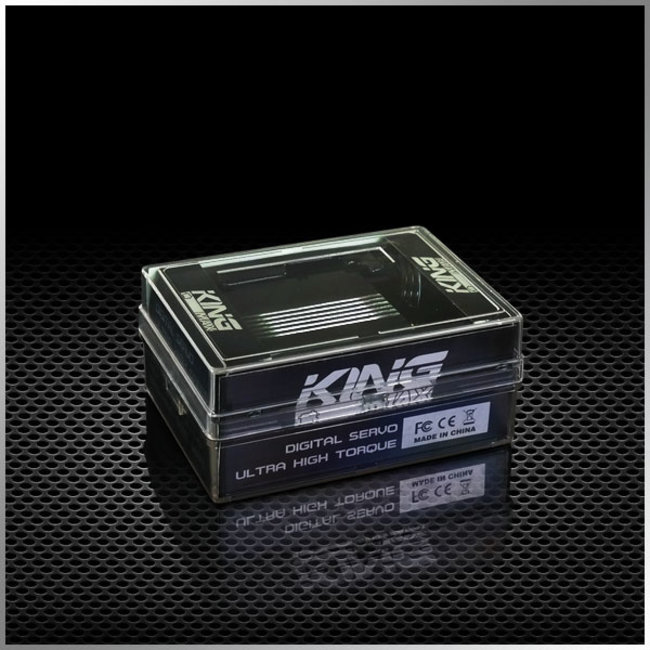

Transparent plastic box size: 83.5mmx63.5mmx37.5mm   weight: 141g

Carton box   size: 43x26.5x20.5cm   100sets/1CTN   Gross weight:14.55kg

Optional Accessories:

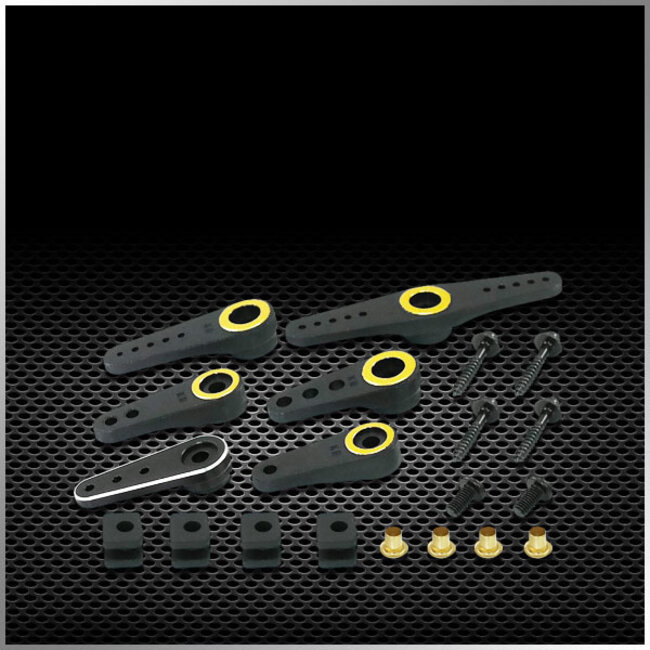

S40S-001:Offered accessories

S40S-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
