Description

Electric R/C Car Series no.691
1/10 R/C 1998 Ford Escort Custom (TT-02)
Item No: 58691

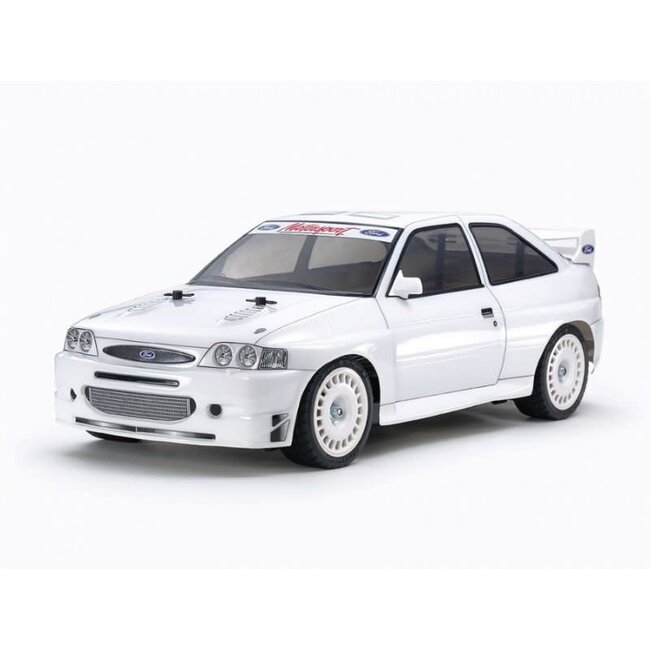

Length: 425mm. Image shows painted and assembled kit.

Custom Classic
This R/C model assembly kit recreates a three-door hatchback Ford Escort Mk.6 with customizations such as blister fenders, front spoiler and rear wing. The powerful form is captured by a lightweight and durable polycarbonate body, and stickers are included to add detail. The model is based upon the adaptable and user-friendly TT-02 chassis, which offers shaft-driven 4WD.

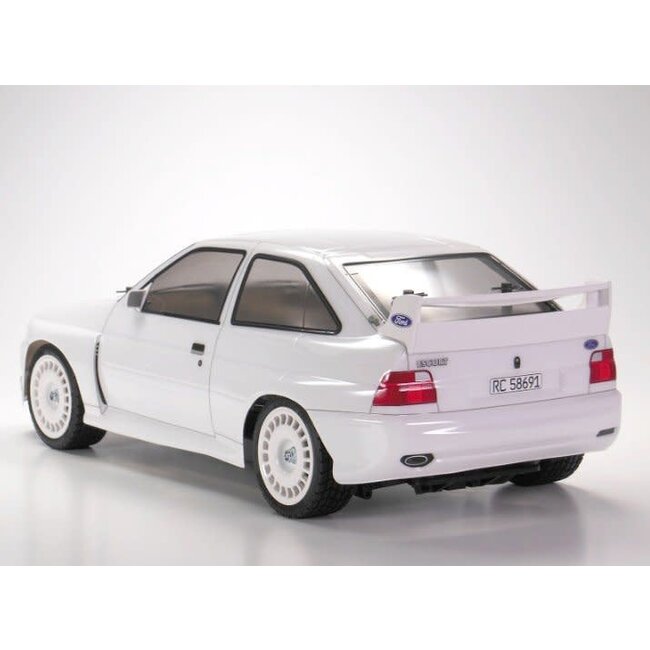

★Left: Take a look at the model from the rear, showing off the polycarbonate body's blister fenders and stylish wing.

★Right: Dedicated, separately injection molded parts are used to recreate the Escort's side mirrors.

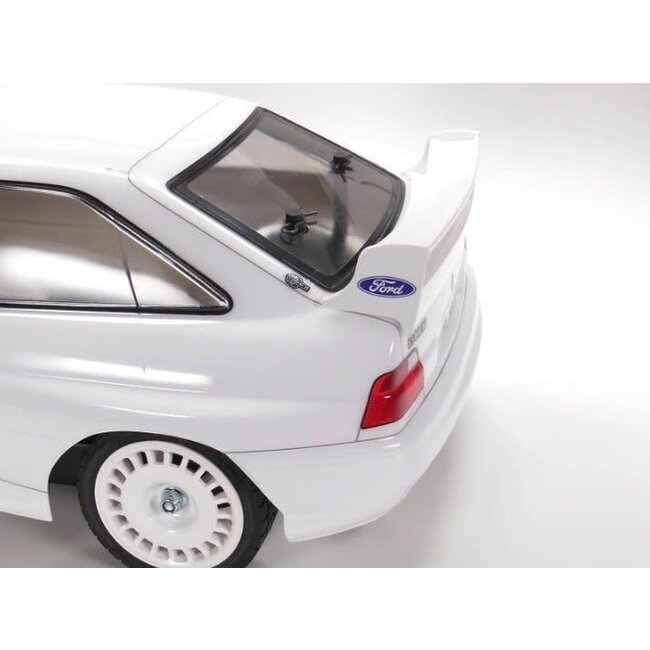

★Left: This image goes close-up on the mini wing at the rear, which is another separately molded component.

★Right: White dish wheels are in keeping with the simple look, and are paired with treaded tires.

TT-02: Adaptable, balanced shaft driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. White dish wheels use tread patterned semi-pneumatic tires.

★Left: Resin ball links in the steering linkage joints make for smooth, comfortable motion.

★Right: Wheel hubs are shaped to look like brake discs.

★Left: Motor cover includes removable cooling duct (not attached in image).

★Right: This image gives a closer look at the rear double-wishbone suspension with friction dampers.

Specifications
★Length: 425mm, Width: 189mm, Height: 145mm ★Wheelbase: 257mm　★Tire Width/Diameter: 27/67mm (Front & Rear) ★Bathtub-type Frame ★Shaft-Driven 4WD ★Front/Rear 4-Bevel Resin Differentials ★3-Piece Steering Tie-Rod ★4-Wheel Double Wishbone Suspension ★Front/Rear Friction Dampers ★Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions) ★Type 540 Motor ★Electronic Speed Controller (ESC) is sold separately.

Separately Required Items
★2-channel R/C system w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger

Information is current as of April 21, 2021. Specifications are subject to change without notice.
