Description

Special Edition R/C Product
1/10 R/C Plasma Edge II Gun Metal (TT-02B)
Item No: 47446

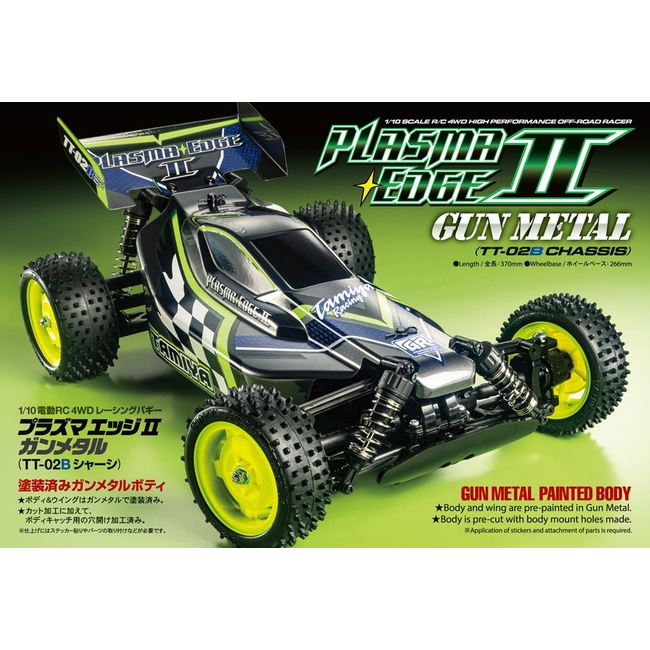

Image shows assembled kit.

Get an Edge on the Competition
This assembly kit creates a Gun Metal version of the Plasma Edge II, an exciting buggy capable of super offroad driving! Both the dynamic body and the large wing are pre-painted in gun metal, and come pre-cut for your convenience. Simply cut out and appply the dedicated stickers, and your body is ready! Fluorescent yellow star dish wheels and black CVA oil shocks round off its stunning looks.

Shaft-Driven 4WD and Superior Handling from the TT-02B
The shaft-driven 4WD TT-02B buggy chassis employs a skid-shaped frame. Its suspension setup uses 4-wheel independent double wishbone suspension with long arms, plus white CVA oil shock units, giving the car assured handling, while left/right suspension arms and uprights are identical to facilitate hassle-free assembly. Front/rear gearboxes include 4-bevel differentials for smooth operation, and are sealed to ensure that dust can't get inside. The tops can be removed simply by loosening a few screws, making maintenance a breeze. 4 different gear ratios can be applied with the use of 3 separately-sold types of pinion gear, allowing you to match the characteristics of your car setup to the conditions at any given time. Of course, this off-road chassis also includes receiver case and motor cover to protect them from dirt and debris thrown up off of the track.

Specifications
★Length: 370mm, Width: 250mm, Height: 160mm ★Wheelbase: 266mm ★Tread: 217mm (Front), 208mm (Rear) ★Bathtub-type Chassis Frame ★Shaft-Driven 4WD ★Front/Rear 4-Bevel Differentials ★3-Piece Steering Tie-Rod ★4-Wheel Double Wishbone Suspension ★Tire Width/Diameter: 32/82mm (Front), 41/82mm (Rear) (Square Spike Tires) ★CVA Oil Shock Units ★Gear Ratio=10.71:1 (with kit-included pinion gear) ★Type 540 Motor ★Requires an Electronic Speed Controller (sold separately)

★Left: Reliable shaft-driven 4WD is the hallmark of the TT-02B chassis, enhanced by sealed gearboxes with efficient differentials.

★Right: The double wishbone suspension uses long arms and black CVA oil dampers for plenty of stroke and a sure-footed drive.

★Left: Keep your motor and receiver protected from potentially damaging dust and dirt using the included cover.

★Right: A close-up on the rear suspension. Identical left/right uprights and arms make for easier maintenance.

Separately Required Items
★2-Channel R/C Unit with ESC★Battery Pack & Charger ★R6/AA/UM3 batteries for transmitter
