Requirements:

• 4 "AA" batteries
• Servos

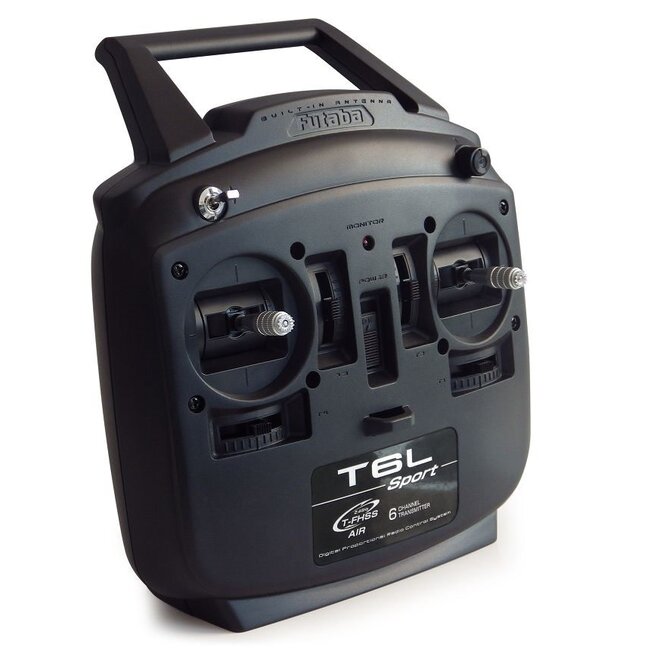

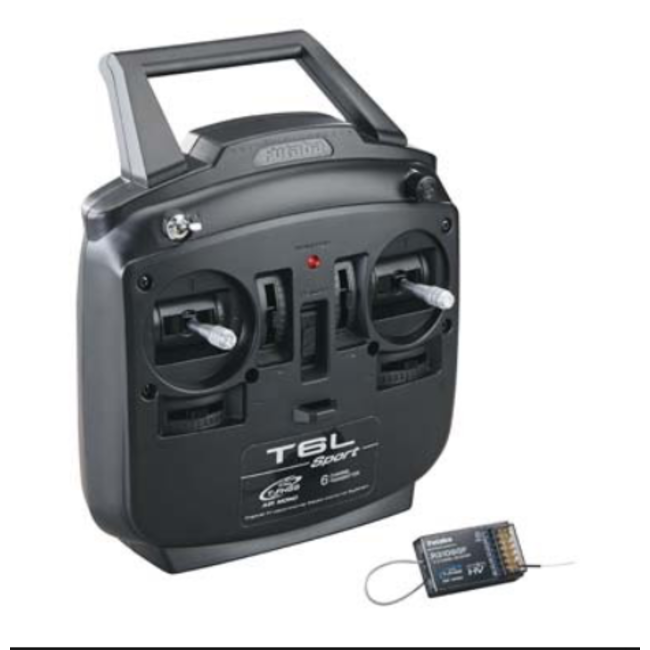

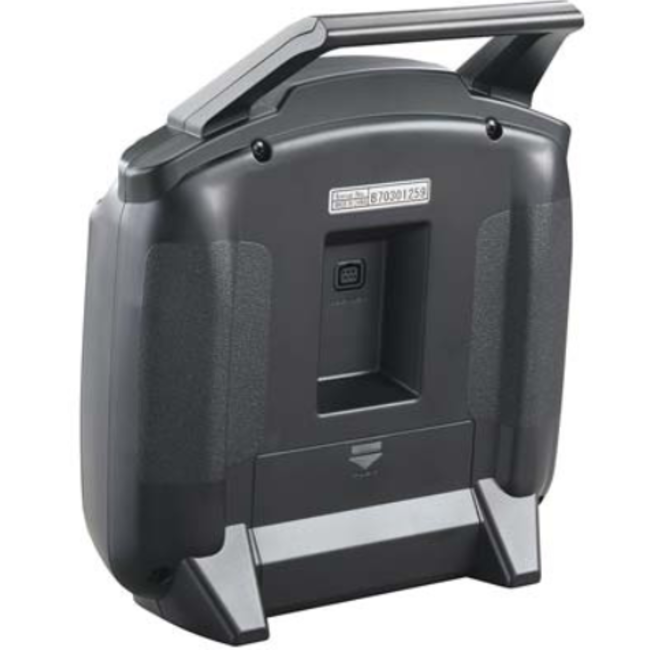

Transmitter Specifications:

Type

2-stick, T-FHSS Mono Directional 2.4GHz System

Transmitting Frequency

2.4GHz band

Channels

6

System

T-FHSS (Mono Dircetional), no telemetry

Power Supply

4 "AA" cells (required)

Low Battery Alarm

Yes

Mixes

Elevon, V-Tail, Flaperon

Modulation

Futaba T-FHSS Mono AIR

Receiver

R3106GF (Included)

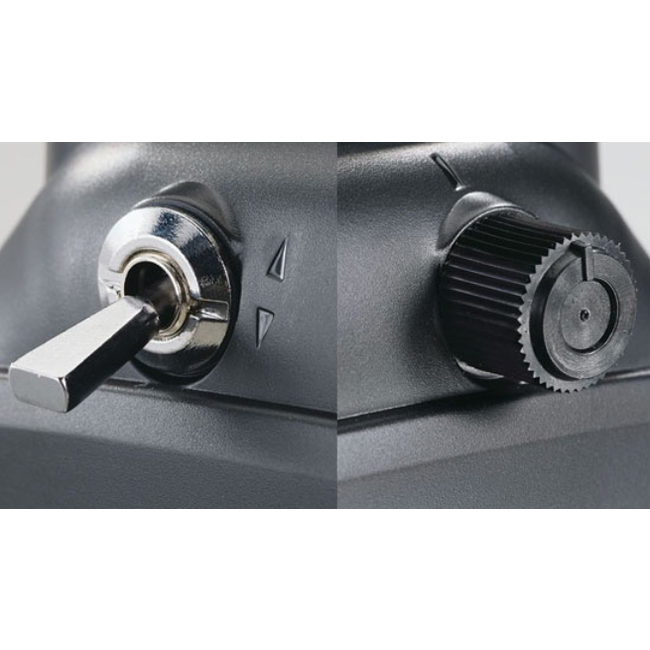

Switches

1

Telemetry

No

Trainer Connector

Student Only

Trims

4 Analog

Dials

1

Frequency

2.4GHz

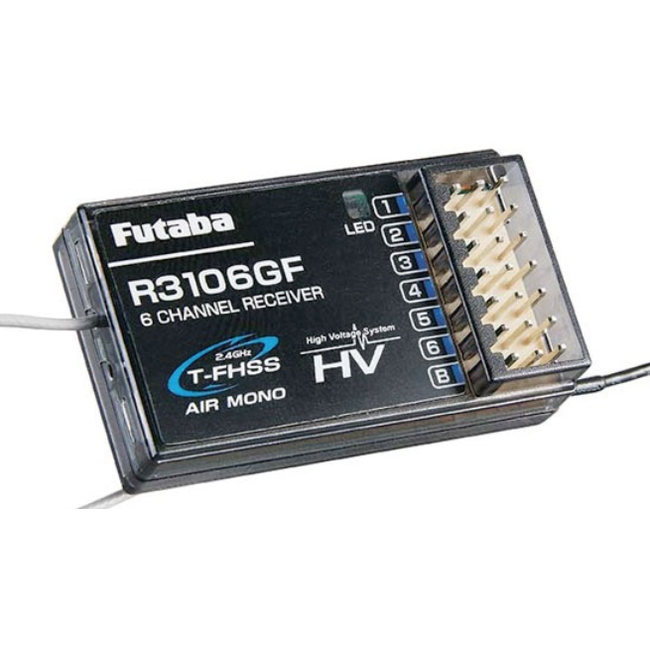

Receiver Specifications:

Type

T-FHSS Air (Mono directional)-2.4GHz system, no telemetry

Power requirement

4.8V-7.4V battery or regulated output from ESC, etc.

Dimensions

1.7 x 0.98 x 0.35 in (43.1 x 25.0 x 8.8 mm)

Weight

0.3 oz (7.8g)
