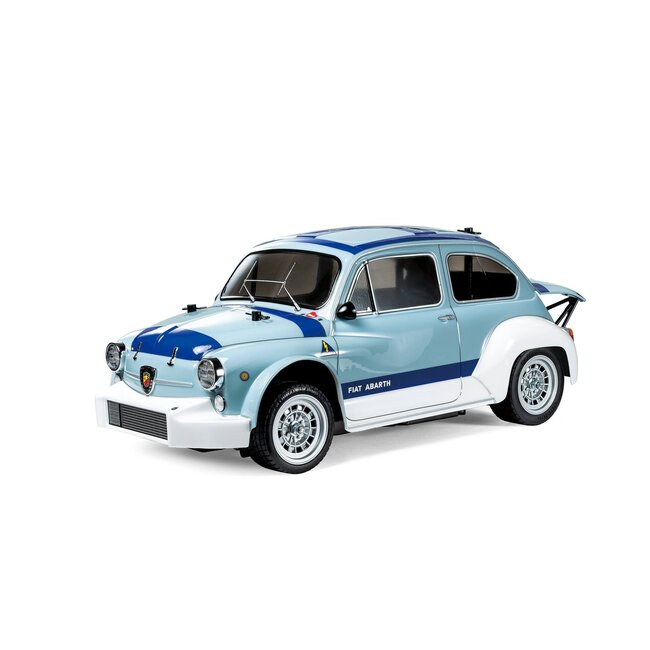

THIS IS A PRE PAINTED VERSION
The origin of M-chassis series history goes back to December 1994, and this series has been popular due to cost-effective kits with a wide choice of bodies, ease of maintenance and control for any level user. Enter, the all-new MB-01!
- Length: 322mm, width: 163mm. Wheelbase: 209mm (S) / 224mm (M) / 239mm (L) (*Fiat Abarth uses the LONG wheelbase setup).
- The multi-purpose, 2WD MB-01 chassis gives choices of three types of wheelbases (*), and front- or rear- wheel drive system. Six setups are available in total.
- Simply change attachment directions of final gears and steering linkage to switch between front- and rear- wheel drive; low or high motor position can be chosen for rear-wheel drive cars.
- Unitized sections such as motor mount and final gears facilitate ease of assembly and effective maintenance.
- The 4-wheel double wishbone suspension features symmetrical structure and friction dampers.
- While this is a 2WD model, multi-link suspension is compatible with tires featuring the same compound and rear tire with toe-in as 4WD models.
- Gear ratio: 5.83:1 (when using kit-standard 29T pinion gear)
- Features 55mm diameter front tires and 60mm diameter rear tires to authentically recreate the stance of the actual car.
- Many Hop-Up Option parts for M-chassis and TT-chassis cars can be used to fine-tune setup.
- Includes 540 motor
* Please note additional items required to complete this kit ESC/Radio Equipment/Battery and Charger
