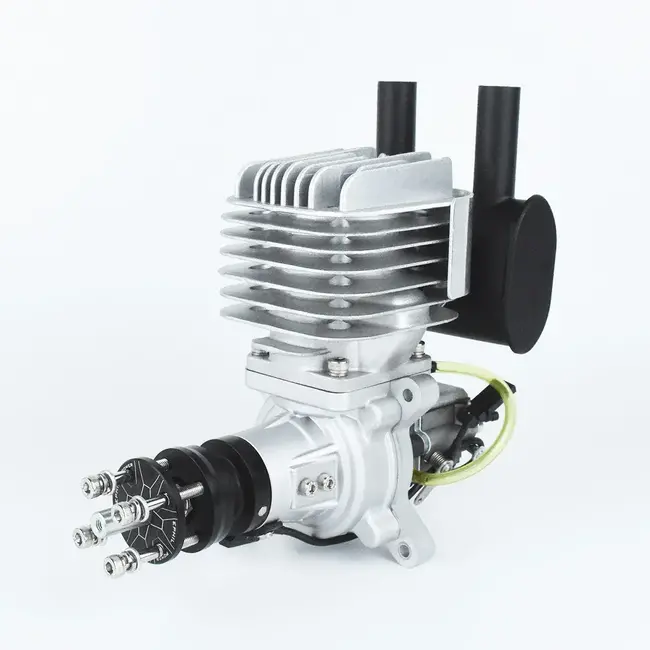

EPHIL 60cc-R Gasoline Engine w/ Spark Plug & Electronic Ignition

PLEASE NOTE THESE MAY NOT BE AVAILABLE INSTORE PLEASE CHECK WITH STAFF BY PHONE OR EMAIL

DELIVERY TIME IS 2-7 BUSINESS DAYS

60cc-R

Displacement: 60cc (3.66 cu in)

Performance: 6.2HP

Speed Range: 1800-6900 RPM (Test Propeller-24*9)

Bore: 47mm (1.85 in)

Stroke: 35mm (1.38 in)

Static Thrust: 15.6 kg @ 100 m ALT (21.8 lb @ 328 ft ALT)

Static Thrust: 13.6 kg @ 1800 m ALT (18.1 lb @ 5900 ft ALT)

Compression Ratio: 8:1

Lubrication Ratio: 30:1 (Fuel: 2-Stroke Motor Oil)

Ignition Voltage: 6-14 V

Spark Plug Type: CM6 Iridium Spark Plug

Recommended Propeller: 22x10; 23x8; 23x10; 24x8; 24x9

Weight of Main Engine: 1400g

Weight of Muffler Set: 135g

Weight of Engine Mount: 115g

Weight of Spark Plug: 13.5g

Weight of CDI (Ignition): 104g

Total Weight: 1768g (3.9 lb)
