FASSTEST SYSTEM:
The 18SZ transmitter has adopted the bidirectional communication system “FASSTest”. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels 2.4 GHz dedicated system.

COLOR TOUCH SCREEN LCD:
T18SZ has an HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.

S.BUS2 SYSTEM:
By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.

MODEL TYPES:
Multicopter. 8 swash types are available for helicopters. 7 types of main wings and 3 types of tail wings are available for airplanes and gliders. Functions and mixing functions necessary for each model type are set in advance at the factory.

LIFE BATTERY:
The 18SZ is operated by a 6.6 V/2,100 mAh Lithium Ferrite battery.

SD CARD (SECURE DIGITAL MEMORY CARD) *NOT INCLUDED:
Model data can be saved to an SD card (SD: 32MB – 2GB, SDHC: 4GB-32GB). When T18SZ transmitter software files are released, the software can be updated by using an SD card update.

EDIT BUTTON:
Two edit buttons are provided, and the operating screen can be immediately “Returned” to the HOME screen during operation. Setting operation can be performed easily by combining this button with a touch sensor.

VIBRATION FUNCTION:
Selects a function that alerts the operator to various alarms by vibrating the transmitter in addition to sounding a buzzer.

SPEECH FUNCTION:
A function is equipped which allows the system to provide telemetry data audibly. This function can also be utilized with commercially available earphones.

• T18SZ Transmitter
  – Air Version includes ratcheting throttle
  – Helicopter Version includes smooth throttle
• R7008SB  Receiver

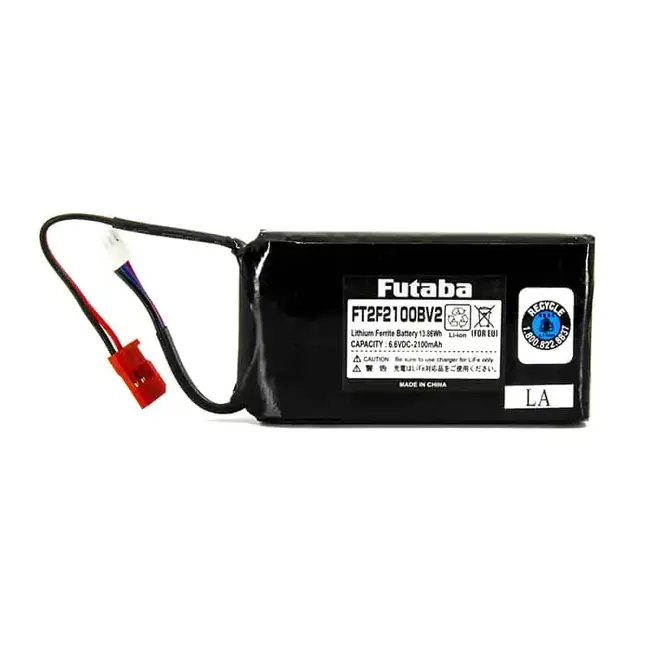

• FT2F2100BV2 LiFe Battery* and Charger
• Switch Harness
• Mini Driver
