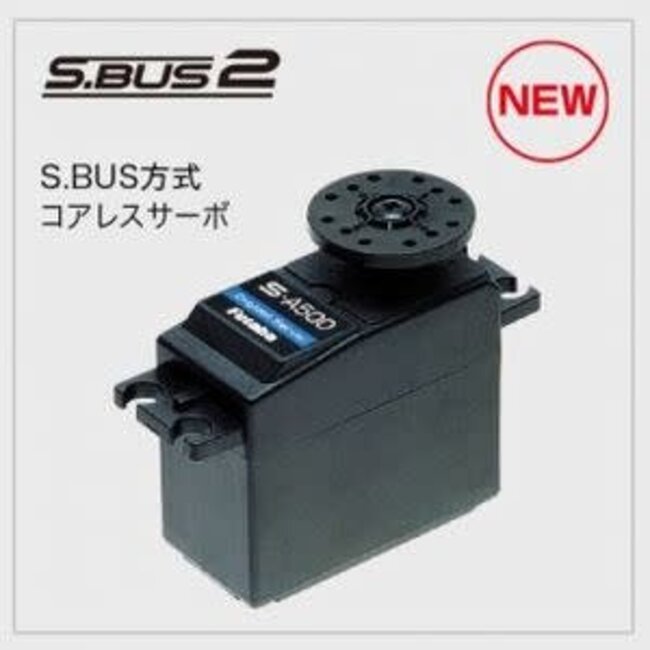

FUTABA HPS-A500 0.11sec/16.8kg 61 grams 30 cc Class

HPS-A500 0.11sec/16.8kg 61 grams 30 cc Class

・High voltage servo for 30cc class aircraft
・Metal 2-3 stage gear
・Aluminum final stage gear / bearing included
・S.BUS system
・Aluminum middle case

・Speed: 0.11sec/60°(7.4V) / 0.13sec/60°(6.0V)
・Torque: 16.8kgf・cm(7.4V) / 13.8kgf・cm(6.0V)
・Dimension/Weight: 40.0×20.0 ×36.8mm/61g

* Power supply: 6.0 to 7.4 V
* In rare cases, hunting may occur due to linkage conditions, fuselage with heavy rudder, etc. In such a case, change the parameters according to the linkage status and aircraft status as follows.
Damper 64→100 Stretcher 4.0→1.0
