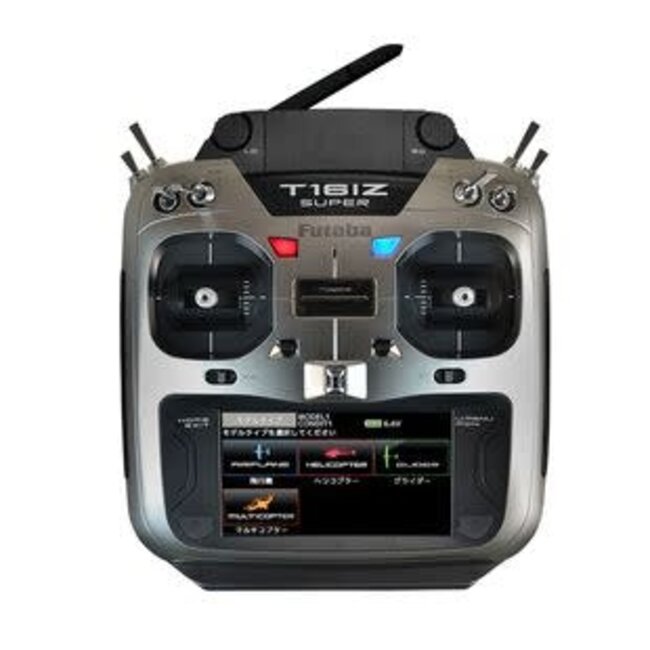

16IZS 2.4GHz incl Batt/USBCharge Lead

FEATURES

FASSTEST SYSTEM: The 16IZ transmitter adopted the bidirectional communication system FASSTest. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels (linear 16 channels + switch 2 channels) 2.4 GHz dedicated system.

S.BUS2 SYSTEM: By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.

USB SIMULATOR CONTROL: The T16IZ offers USB C compatibility for simulator control when used with Windows OS Joystick function.

COLOR TOUCH SCREEN LCD: T16IZ has an updated HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.

MULTI HOLDER: T16IZ Offers Multi holder near the antenna/charging port. It allows for accessories to be mounted using an M3 style screw.

Voice Telemetry: The T16IZ allows for audible telemetry data to be read aloud for easy understanding of crucial parameters while flying.

SECURE DATA (SD CARD): Model data files can be stored on optional microSD card. The microSD card is also used when updating the software/features of the T16IZ.

HIGH CAPACITY LITHIUM POLYMER BATTERY (2000 MAH): The high capacity 2S Lithium Polymer battery gives you extended flight time.

EDITING: The touch panel and two enter keys allows you to edit your model in the manner that is easiest for you.

FUNCTIONS: The internal processor the response time. Most of the mixing functions are operated by curves which give you very precise settings.

STICK: Each stick offers our reliable single ball bearing for each axis. With our high cycle potentiometer this allows for finer and more precise operation.

VIBRATION FUNCTION: Low voltage and other alarms are generated by a vibration motor. Alarms or vibrations to be used can be selected by the owner.

CONTENTS

YOUR T16IZ  INCLUDES THE FOLLOWING COMPONENTS:

• T16IZS Transmitter – Air Version includes ratcheting throttle – Helicopter Version includes smooth throttle
• LT2F2000B Lithium Polymer Battery and USB cable for charging
• Neck Strap
• Manual (Printed short version. Find full version here)

TRANSMITTER SPECS

TRANSMITTER FREQUENCY: 2.4 GHz band

OPERATING SYSTEM: 2-Stick, 18-Channels, 2.4 GHz FASSTest/FASST/T-FHSS/S-FHSS System

POWER SUPPLY: 7.4 V LT2F2000B Lithium-polymer battery

RF POWER OUTPUT: 100 mW EIRP

WEIGHT (with battery): TBD

Compatible receivers as of 29 June2022.

S-FHSS PROTOCOL

• R2008GS
• R2008SB
• R2106SB
• R2001SB
• R2000SBM

T-FHSS TELEMETRY PROTOCOL

• R3001SB
• R3004SB
• R3006SB
• R3008SB

T-FHSS MONO (NON-TELEMETRY)

• R3206SBM
• R3106GF

FASST7 AND FASST MULTI

• R6004FF
• R6008HS
• R6014HS
• R6016HF
• R616FFM
• R617FS
• R6202SBW
• R6203SB
• R6208SB
• R6303SB
• R6303SBE

FASSTest12 and FASSTest18

• R7003SB
• R7006SB
• R7106SB
• R7008SB
• R7108SB
• R7014SB
• R7114SB
• R7306SB
• R7308SB
