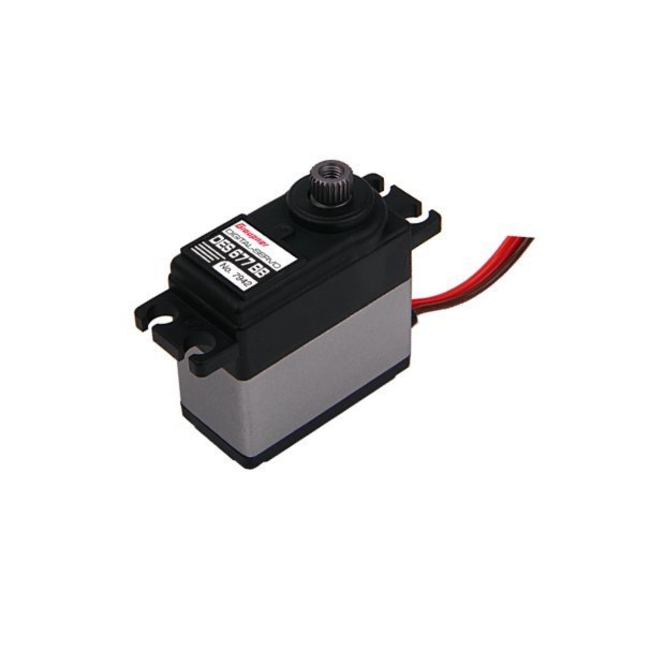

GRAUPNER DES 677BB STANDARD DIGITAL SERVO 7942
Read more.
Brick & Mortar Store
Quick & Secure Shipping
Lots of New Old stock
Proudly WA owned
Product description
GRAUPNER DES 677BB STANDARD DIGITAL SERVO 7942Equipped with precision components like ball bearings to increase durability and longevity, the Graupner DES 677 BB High-Speed Standard Digital Servo is the ultimate combination of torque and speed. The low dead-band technology, high-speed, real-time responses, and Graupner’s exclusive programmable digital circuits makes the DES 677 BB a reliable and excellent performing servo. Ideal choice for helicopters.
The DES 677 BB can be specially programmed to meet your unique specifications via the free Graupner Servo Setup Software.
FEATURES
Coreless motor
Digital servo featuring dynamic torque, excellent speed, superior response and holding torque
Programmable Digital Circuit and SMT circuitry
1024 high resolution
Supporting 1-16µ depending on programming
Covering the wide range of frame rate 20Hz-400Hz
10-bit processing circuit
INCLUDES
DES 677 BB Standard Digital Servo
Horn set
Specifications
Category Standard
Type Digital
Motor Coreless
Speed 4.8V 0.08 Sec/60
6.0V 0.07 Sec/60
7.4V „ÄÄ
Torque 2.04kg @ 4.8V
Torque 2.65kg @ 6.0V
Gear CarbonPoly
Bearing 2BB
Heat sink O
Connector type JR
Size 1.26 x 0.63 x 1.32 in
32.0 x 16.0 x 33.5 mm
Weight 1.01 oz
28.50 g
Horn size √ò 6(25T)
Specifications
Article number
4013389421805
EAN Code
4013389421805
SKU
4013389421805
