GRAUPNER HBS 690BB BRUSHLESS HV DIGITAL SERVO 7981
$80.00Incl. tax
In stock (2)
GRAUPNER HBS 690BB BRUSHLESS HV DIGITAL SERVO 7981
Read more.
Brick & Mortar Store
Quick & Secure Shipping
Lots of New Old stock
Proudly WA owned
Product description

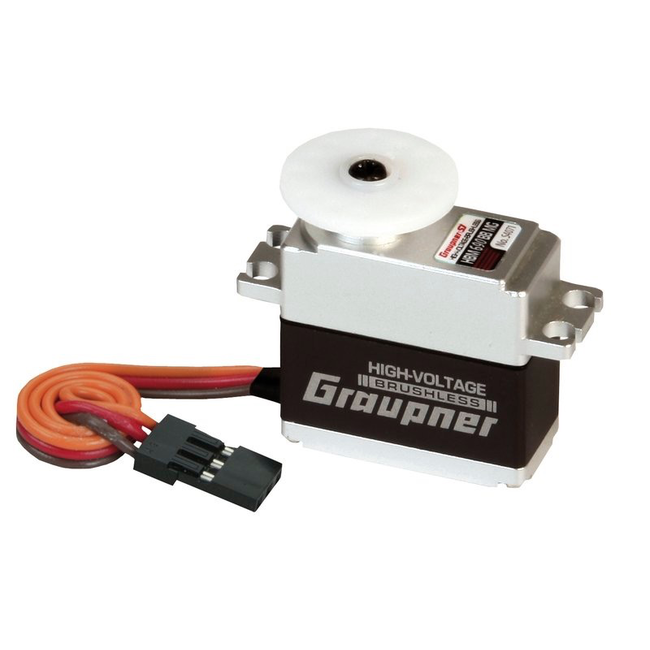

GRAUPNER HBS 690BB BRUSHLESS HV DIGITAL SERVO 7981 High-voltage brushless metal body servo (HBM)
High-voltage, 2-cell LiPo batteries provide a direct power supply. This is the new product range from the digital servo segment, HBM (high-voltage brushless metal body servo).
With a maximum permissible operating voltage of 8.4V, the new battery technology can be used without reservation. Naturally, these servos can also be operated with a conventional 6.0 V supply. The very best production quality tops off this line of our servos.
Brushless motor
Metal body
Direct operation with 2-cell LiPo batteries
Digital servo with dynamic torque, outstanding speed, excellent response characteristics and holding torque
Programmable
2048 high resolution
Bandwidth 20Hz~400Hz
12-bit processing in the circuit
Operating voltage range 4.8 ... 8.4 V
Ball bearings
Metal gearbox
Technical information
Operating voltage neutral [V] : 4,8 ... 8,4
Width [mm]: 16
Brushless: Yes
Gear unit: Metal
Weight [g]: 43
High-Voltage: Yes
Height [mm]: 34,5
Bearings: 2 Ball-Bearing
Overall length [mm]: 35
Servo series: HBM Servo
Torque 5.20kg @ 4.8V
Torque 6.12kg @ 6.0V
Transit speed at 4.8 V, approx. [Sek / 40°] : 0,08
Transit speed at 6.0 V, approx. [Sek / 40°] : 0,07
Transit speed at 7.4 V, approx. [Sek / 40°]: 0,05
Specifications
Article number
4013389462204
EAN Code
4013389462204
SKU
4013389462204
