Great Planes GPMG5290 Ammo 36-50-2300Kv Brushless Inrunner Motor
Fast Shipping
New Old Stock
Brick and Mortar Store
Worldwide shipping
Description

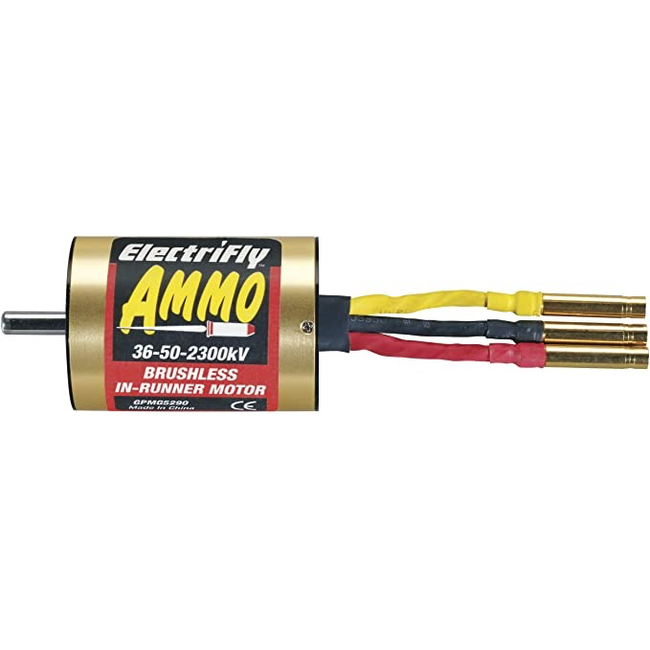

Great Planes GPMG5290 Ammo 36-50-2300Kv Brushless Inrunner Motor This is the Great Planes ElectriFly Ammo
36-50-2300kV Brushless In-Runner 2 Pole Electric Motor.
FEATURES
Brushless, slotless Ammo In-Runner Motors offer an incredible power-
to-weight advantage and almost twice the efficiency of Brushed
motors
Ideal for direct or gear drive use
Up to 89 efficient and virtually maintenance-free no brushes to
wear out
Powered by rare earth Neodymium magnets for high torque and
unmatched heat resistance
Pre-installed gold plated connectors for plug and play operation
when used with compatible ElectriFly Silver Series Brushless speed
controls
Double sealed bearings
Two year warranty
INCLUDES
Great Planes ElectriFly Ammo 36-50-2300kV Brushless Electric Motor
with connectors and four M3x5 machine screws
REQUIREMENTS
Installing in model and connecting to speed control
Propeller, suggested sizes include 10x7E-13x8E
SPECIFICATIONS
Motor Diameter: 1.42 (36mm)
Motor Length: 1.97 (50mm)
Shaft Diameter: .197 (5mm)
Shaft Length: .591 (15mm)
kV Rating: 2300 rpmV
Weight: 8.6oz (243g)
Input Voltage: 14.8-18.5V
Max. Constant Current: 60A
Max. Surge Current: 100A
Max. Constant Watts: 1110W
No Load Current: 2A
