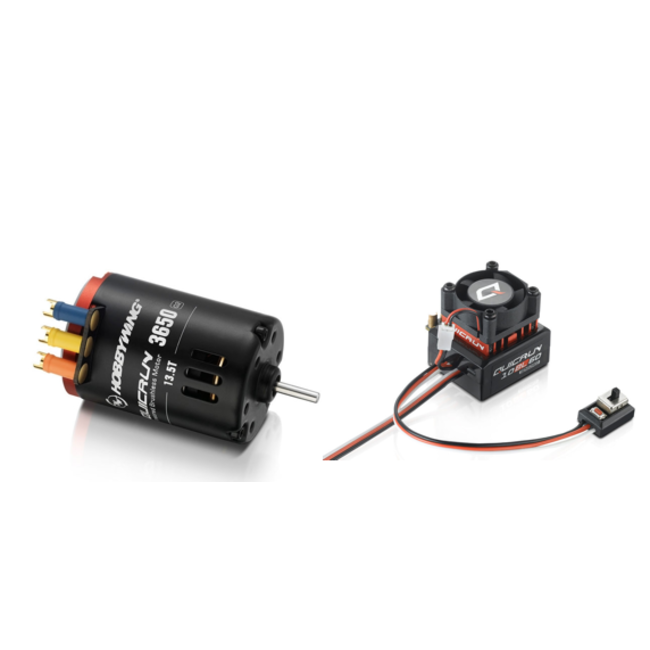

HOBBY WING QUICRUN COMBO-QR10BL60-SD+QR3650SD-10.5T-G2
The built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand.
The silicon O-ring fitted between the end bell and stator helps to conduct inner heat to the unique motor case to maximize cooling for extreme cooling conditions. The end bell is easy to be removed for maintenance purposes and for the replacement of common wearing parts such as rotor and sensor module (Ex bearings).
Customized 3.5mm low impedance bullet connectors soldered to the motor wires guarantee "plug-and-play" and stable connections between the ESC and motor.
When pairing the QuicRun3650 G2 motor with the Hobbwing QuicRun-10BL60-Sensored ESC, the excellent match between ESC and motor will give you a very smooth and linear power band.
Hobbywing QuicRun 3650 SD G2 Features:
- Linear & Smooth Control
- Great Heat-dissipation
- Plug-and-Play
- Re-buildable Design
- Compatible (with QuicRun-10BL60-Sensored ESC)
Spec Check:
- Scale: 1/10th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensored
- Pole Count: 2
- KV Rating: 3600
- LiPo Cells: 2-3S
- No-load Current(A): 2.8
- O.D.(mm): 36 (1.147in)
- Length (mm): 52.8 (2.079in)
- Shaft Diameter (mm): 3.17 (0.125in)
- Weight: 186g
- Timing: Fixed
The QuicRun 10BL60 sensored ESC is specially designed for new beginners and intermediate modelers. This speed controller is designed for practice and daily training of1/10th, 1/12th scale touring cars, buggies, F1 and draft cars as well as 1/10th scale rock crawlers.
Hobbywing patented heat-conductive copper bar cover on the power board of the QUICRN 10BL60, which can efficiently and effectively transfer heat to the integrated CNC machined billet aluminum heat sink housing, combined with reticulate heatsink and high-performance cooling fan can keep your ESC as cool as possible.
With the compact design, it’s applicable to various chassis. With the Dual (Sensored/Sensorless) Drive Mode, it’s compatible with different motors and brings racers two different control feel.
The SET button on the ESC allows the user to easily program or factory reset the ESC with ease.
HobbyWing QuicRun 10BL60 Features:
- High Reliability & Durability
- Efficient Cooling System
- Easy Operation
- Compact Design & SD/SL Dual Mode Supported
- Single-button Programming & Factory Reset
Spec Check:
- Scale: 1/10th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensored
- Waterproof: No
- Cont./Peak Current: 60A/380A
- Input: 2-3S LiPo/6-9 Cells NiMH
- BEC Output: Switch Mode:6V/2A
- Input Wires: Red-12AWG-200mm*1/Black-12AWG-200mm*1
- Output Wires: Blue-12AWG-200mm*1/Yellow-12AWG-200mm*1/Orange-12AWG-200mm*1
- Input Connectors: No
- Output Connecotors: No
- Fan Size: 25.0x25.0x10.0mm
- Fan Voltage Range: 5-8.4V
- Size: 59.5x48.0x42.0mm
- Weight: 59g
