HOBBY WING UBEC-10A-V2-Car 2-6S

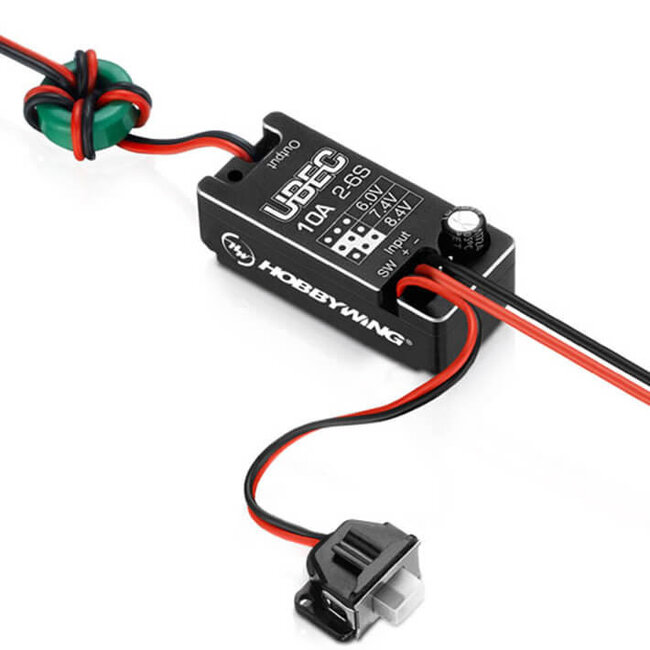

HOBBYWING UBEC 10A (2-6S) V2 CAR

The UBEC uses an efficient DC-DC regulator chip with a conversion efficiency of more than 90%. The all-metal housing is designed to help dissipate heat and reduce electromagnetic interference. UBEC output voltage is adjustable in three stages (6.0/7.4/8.4 V) with a continuous current of 10A and a maximum of 15A. The voltage specifications allow the use for a wide range of servos and electrical equipment such as lights, winches, wipers and etc. At the same time, the UBEC is equipped with overcurrent protection, output short-circuit protection, overheat protection, and IP67 waterproof dust design, and can be widely used on crawlers, trucks, and other electric models as well.

Spec Check:

• Input Voltage: 6V-25.2V (2-6S LiPo)
• Output Voltage: 6.0 / 7.4 / 8.4 V (3 options adjustable)
• Output Current (Cont./Peak): 10A/15A
• Size: 45x20x16.2mm (LxWxH)
• Weight: 34g
•
