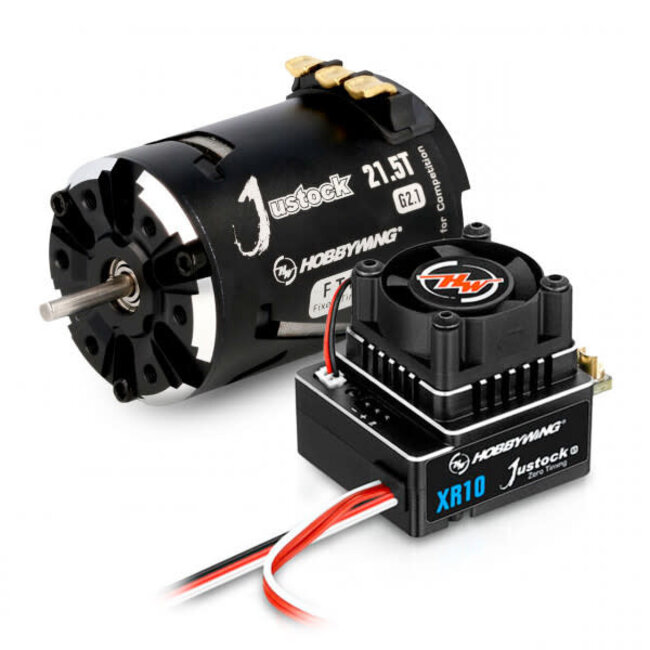

COMBO-XR10-JS6-G3-Black-G2.1
A combination of the JUSTOCK 3650SD G2.1 motor and the XR10 JUSTOCK G3 controller, this combo is perfectly tailored for the ambitious stick or sport rider. The XR10 JUSTOCK G3 controller was developed specifically for racing and training rides. This is ensured by the brand new programming option "RPM Limit" to adapt your limit accordingly depending on the racing requirements - adjustable in stages from 12,500-25,000RPM or even unlimited. In addition, there is the fixed "0" timing, which is often required in races. So get ready for a fair and successful race.
Thanks to new programming options compared to its predecessor, it is now also possible to determine the direction of rotation of the motor and to set the BEC voltage to a certain value.
Features (controller)
- Perfect for competition thanks to RPM limits and 0 timing
- Motor rotation direction freely selectable (CW or CCW)
- Adjustable BEC voltage (6V or 7.4V)
- Robust aluminum housing for ideal heat dissipation
- Built-in capacitors as a space-saving solution compared to external capacitors
- Various protection functions against reverse polarity, overheating, fail-safe and more
- Variety of programming options (LED/LCD programming, Wifi/OTA module, ...)
- Firmware upgrades possible to always be up to date
Features (engine)
- High temperature resistant copper winding
- Powerful neodymium magnets
- Precision ball bearings
- Linear power development
- First-class, linear power delivery
- Easily dismantled for maintenance
Technical data (controller)
Type: | Brushless, sensored |
Current duration/short: | 60A/380A |
Input voltage: | 2S Lipo |
BEC: | 6V / 7.4V at 4A |
Motor types: | Brushless motors (sensored and sensorless) |
Motor limit: | >=10.5T 3650 engine |
Fan: | Yes, operated via the BEC |
Programming: | SET button, LED programming box, LCD programming box, Wifi module, OTA module, separate programming interface |
Dimensions: | 40.9x33.9x32.1mm |
Weight: | 75.4g |
Suitable vehicles: | 1/10, 1/12 on-road and off-road competition and training (e.g. touring car, buggy) |
Technical data (engine)
Type: | Â Brushless/sensor |
Poles: | Â 2 |
Number of revolutions: | Â 20500KV |
Windings: | Â 21.5T |
Number of LiPo cells: | Â 2-3s |
Current idle: | Â 3.0A |
Outer diameter: | Â 35.9mm |
Length: | Â 52.5mm |
Shaft diameter: | Â 3.17mm |
Weight: | Â 175g |
Timing: | Â fix |
Mission: | Â 1/10, 1/12 Crawler and F1 (Stock Class) |
scope of delivery
1x controller
1x motor
(HW38020322)
