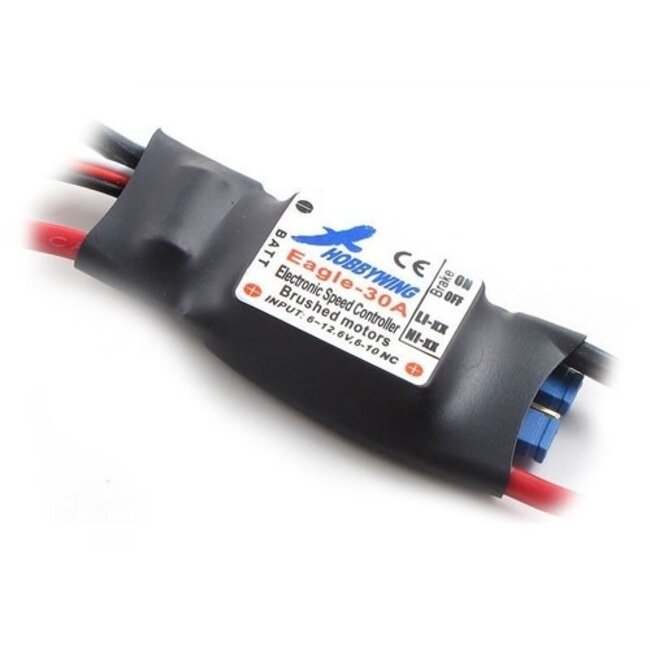

HOBBYWING EAGLE 30A BRUSHED ESC

Compatible with lithium battery and nickel battery.

HobbyWing Eagle ESC Features:

• Safety Arming Feature
• Low voltage cut-off protection to prolong the battery life
• Over-heat protection to prolong the ESC life
• Throttle signal loss protection for safe flight

Spec Check:

• Motor: Brushed
• Output: Continuous 30A, Burst 40A up to 10 seconds
• Input Voltage: 2-3 cells lithium battery or 4-10 cells NiCd/NiMh battery
• BEC: 1A/5V (Linear mode).
• PWM Frequency: 2 kHz
• Size: 45mm (L) * 21mm (W) * 8mm (H)
• Weight: 21g
