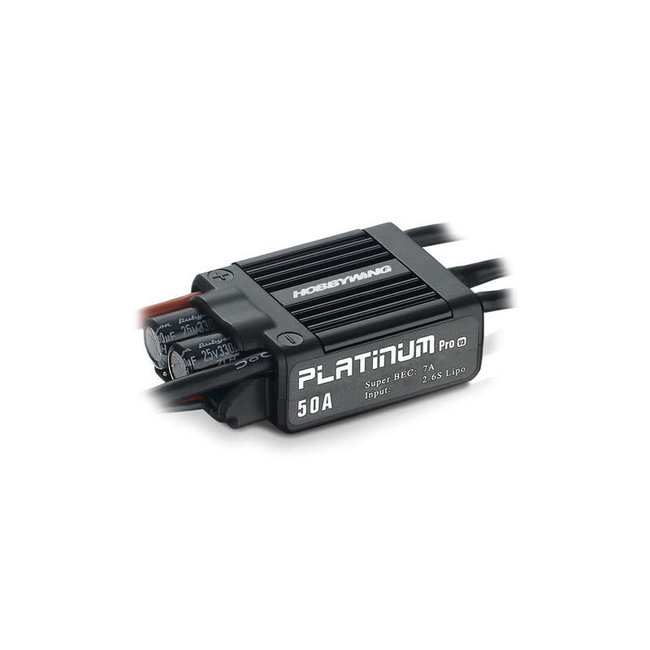

This Platinum 50A V3 ESC can output a continuous current of 50A and peak current of up to 75A. New structure design combined with high performance micro-processor guarantees users efficient heat dissipation, good compatibility (with various motors), high driving efficiency, and etc. The built-in switch mode BEC with a voltage adjustable among 5.2V/6.0V/7.4V, a continuous current of 7A and peak current of 15A can supply enough power for your servos to operate efficiently.
This ESC featuring “Fixed-wing/Helicopter (Linear Throttle)/Helicopter (Elf Governor)/Helicopter (Store Governor)” four flight modes and “Auto Restart (Time)” function guarantees users excellent speed-governing performance in Heli Governor mode and allows users to cutoff output and restart the motor, avoiding possible crash damage caused by improper operation.
Multiple protection features include abnormal input voltage, ESC thermal, throttle signal loss (or Fail Safe), and low voltage cutoff effectively prolongs the service life of the ESC.
HobbyWing Platinum 50A V3 Features:
- New Design & Excellent Performance
- Great Power Output
- Super Built-in BEC
- Four Flight Modes & “Auto Restart” Function
- Multiple Protections
Spec Check:
- Brushed/Brushless: BL
- Cont./Peak Current: 50A/75A
- Input Voltage: 2-6S LiPo
- BEC Output: Switch Mode:5.2V/6V/7.4V,7A
- Input Wires: Red-14AWG-100mm*1/Black-14AWG-100mm*1
- Output Wires: Black-14AWG-75mm*3
- Input Connectors: No
- Output Connecotors: 3.5mm Gold Connectors (Female)
- LCD Program Box: Supported
- WiFi Module: Supported
- Size: 48.0x30.0x15.5mm
- Weight: 49g
