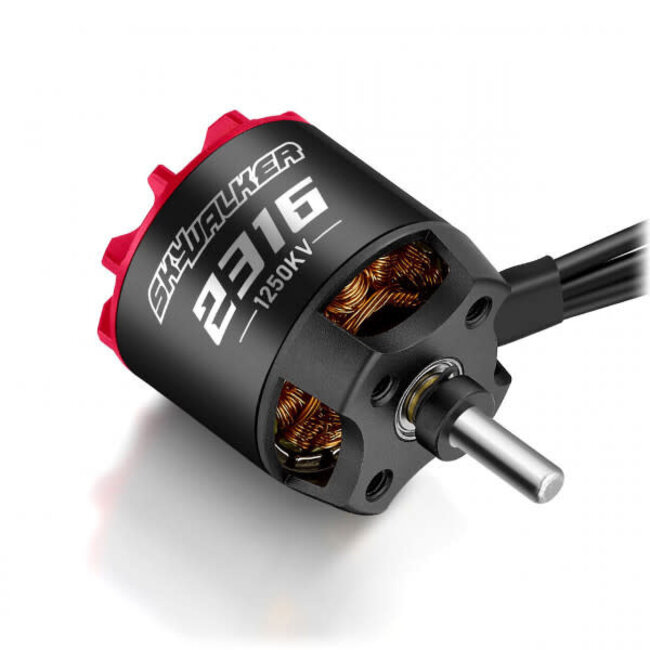

The first generation of the Skywalker motor series brings RC hobby pilots with fixed-wing models a whole new flying experience. They are also a suitable complement to the already established Skywalker ESCs and achieve around 10% more output power than comparable motors with similar specifications.
The Skywalker aircraft motors have a special propeller attachment that ensures an overall higher torque. And the motor, equipped with N48 magnets, takes advantage of exactly that to ensure maximum torque output. Incidentally, no problems due to excessive heating are to be expected. After all, there is a generous cavity in the motor, which, together with the self-draining structure of the top cover, increases the cooling performance. And together with other high-quality components such as the 0.2mm JNEH1200 silicon steel sheet and the high-temperature-resistant enameled wire, these engines are ready to travel the skies for a long time.
The rotor itself has been designed to noticeably reduce potential motor vibrations and ensure smoother operation overall. The rotor is also secured through the interaction of the various components in order to further increase the reliability of the Skywalker motors.
Features:
Technical Specifications:
| Type: | Brushless |
| kV Rating: | 1250kV |
| No-Load Current: | 1.7A/14.8V |
| Resistance: | 38.5m Ohm |
| LiPo Cells: | 3-4S LiPo |
| Slots & Poles: | 12N14P |
| Max. cont. Current: | 41A/54s |
| Max. cont. Power: | 615W/54s |
| Phase Cable: | 18AWG, 100mm |
| Bearing: | 684ZZ (D9 x d4 x 4) |
| Diameter: | 28.8mm |
| Length: | 50mm |
| Shaft Diameter: | 4mm |
| Weight: | 79g |
| Recommended ESC: | Skywalker V2 30A-50A |
| Props: | 3S: 9x4.5E, 10x5E,10x6E 4S: 7x6E, 8x6E |
| Clip Mounting Hole Thread: | D:12mm-3 x M2.5 |
| Base Thread: | D:16mm-2 x M3 D:19mm-2 x M3 |
Delivery:
1x Skywalker motor 2316 SL 1250kV
1x Manual
