JIYI P2 PRO FLIGHT CONTROLLER MULTIROTOR

The latest offering from JIYI has arrived, the P2 Pro Multirotor AutoPilot Flight Control System. The guys over at JIYI have spent an additional 6 months developing and testing the P2 Pro system and we believe you may be pleased with the results!

The pro version now includes one key take off and landing, set point landing, waypoint flights and can also support octocopters with a diameter up to 1200mm making it the perfect solution for large aerial photography / videography multirotor platforms.

The P2 Pro system is suitable for multirotors with a maximum diameter of 1200mm and suits many of the commonly used multirotor configurations including, octocopters, X type quads and hexcopters.

The system offers superior stability and precise spot hovering making it perfect for your aerial photography and videography. With several flight modes the P2 Pro system covers a multitude of flying styles from novice to the budding aerial photographer and advanced sport flyer.

The P2 Pro system offers USB connectivity and is compatible with windows XP, SP3 and Windows 7, which will allow you to configure and fine tune your multirotor. The V2 version has revised firmware for improved overall performance.

Features:
• Supports airframes I4, X4 / hexcopter I6, X6, IY6, Y6 / I8, X8, V8,
• Supports PPM, PWM and SBUS receivers (minimum 6 channels)
• Provides superior stability and precise spot hovering
• One key take off and landing, set point landing and waypoint flights
• Perfect for frames up to 1200mm diameter
• Designed for X-type and hexcopter
• Supports PWM ESC below 490hz
• Suits PCM or 2.4Ghz radio systems
• Compatible with windows XP, SP3, Windows 7
• Flight modes: GPS, headless mode, intelligent orientation control, Hover and return to home.
• Low voltage protection
• Micro USB connectivity
• Cell phone compatible

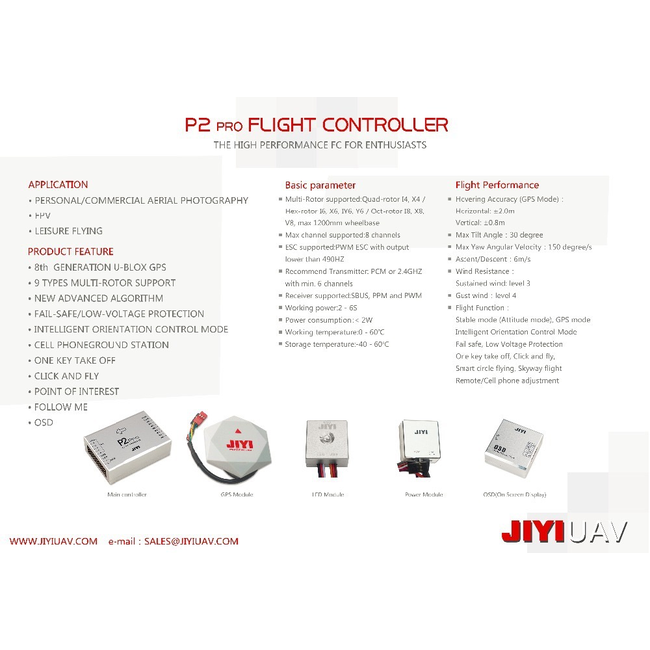

Specs:
Working Voltage: Main controller 4.8V ~ 5.5V
LED/ Power Module: Input 7.4v ~ 6V (recommend 2S~6S LiPo) Output 2A @ 5V
Power Consumption: <2W
Working Temperature: 0C – 60c
Storage Temperature: -40C +60c
Hovering Tolerance: Horizontal level ±2m, vertical Level ±0.8m
Maximum Tilting Angle: 30°
Maximum Vertical Speed: 6m/s

Component Weights And Dimensions:
Main Controller Weight: 36g
GPS Compass Module Weight: 45g
LED Module Weight: 11g
PMU Module Weight: 18.53g
Main Controller: 55 √ó 38 √ó 17mm
GPS Compass Module: 64.50 √ó 11mm
LED Module: 25 √ó 23 √ó 10mm
PMU Module: 30 x 28 x 10mm

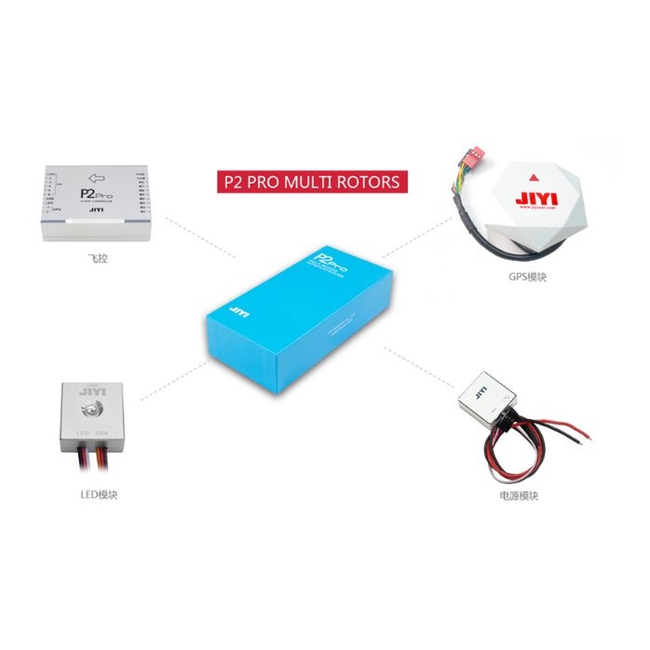

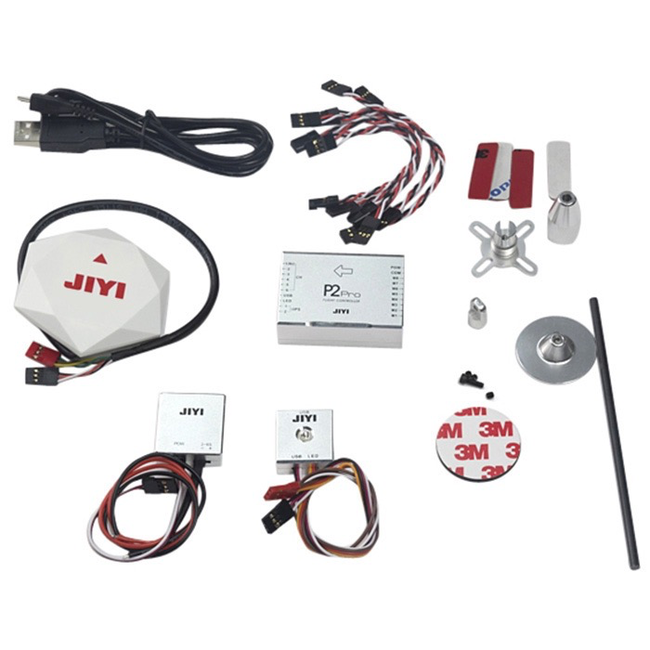

Package Contains:
Main Controller
GPS Compass Module
LED module
PMU module
Jumper cables
Fixtures and fittings
USB Cable
