2 AXIS MARTINEZ Gimbal Controller PCB'S
Read more.
Brick & Mortar Store
Quick & Secure Shipping
Lots of New Old stock
Proudly WA owned
Product description

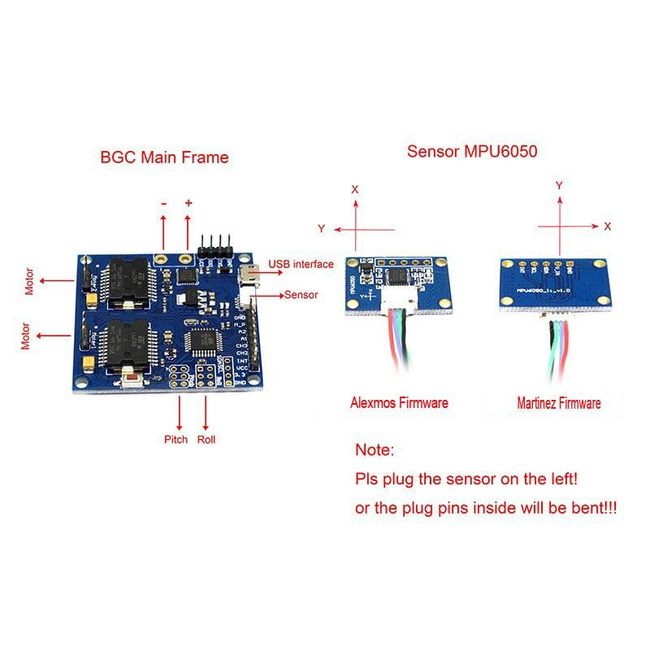

2 AXIS MARTINEZ Gimbal Controller This controller is for use with brushless direct drive (BLDC) motors. Included sensor unit with gyro and accelerometer is mounted on the camera platform; the controller unit receives data from IMU to define camera inclination angles. PID-controller calculates the amount of compensation and sends command to the power unit, which controls the current in the windings and thus the direction of the vector of magnetic field in the stator. Magnetic field moves the rotor to the right position.
Controller is pre-flashed with latest open source firmware (ex. v49_r161) and includes to aluminum heat sinks for the motor drivers.
SpecificationsÔªø:Ôªø
USB connector (no FTDI needed)
Stabilized VBUS (USB port)

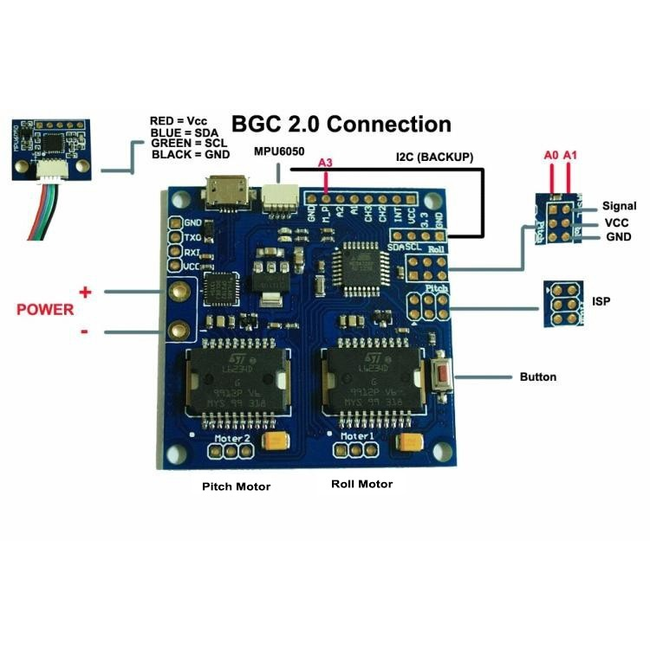

Pin layout optimized GND, A1 and A2 GND, multi-port, 5V
L6234 brushless motor driver
2 outputs for brushless motors
4 receiver inputs
6 analog inputs
Serial port available
Power LED (blue)
Small LEDs on the USB
Dimensions 50 mm x 50 mm
Standard MK style mounting holes 45 mm x 45 mm
2 instead of 4 glass diodes SOT23
5V better stabilized
Shifter lever on the I2C Bus (3.3V to 5V)
Pull reduced (for better edges)
Bootloader and firmware of Atmega328 already flashed with the last version
Specifications
Article number
MTGBC1302
SKU
MTGBC1302
