Product description

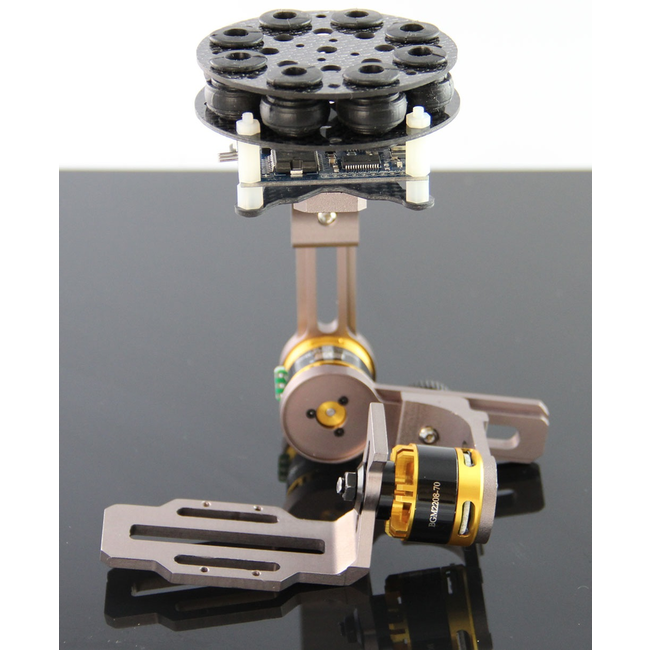

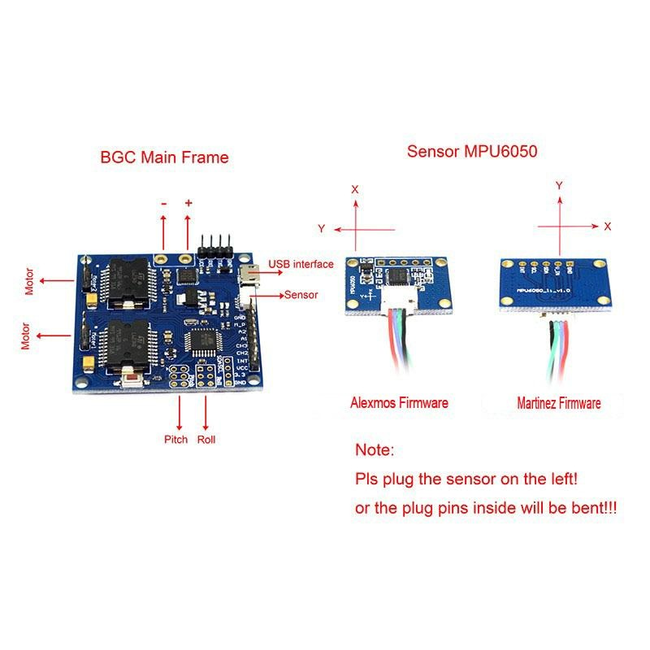

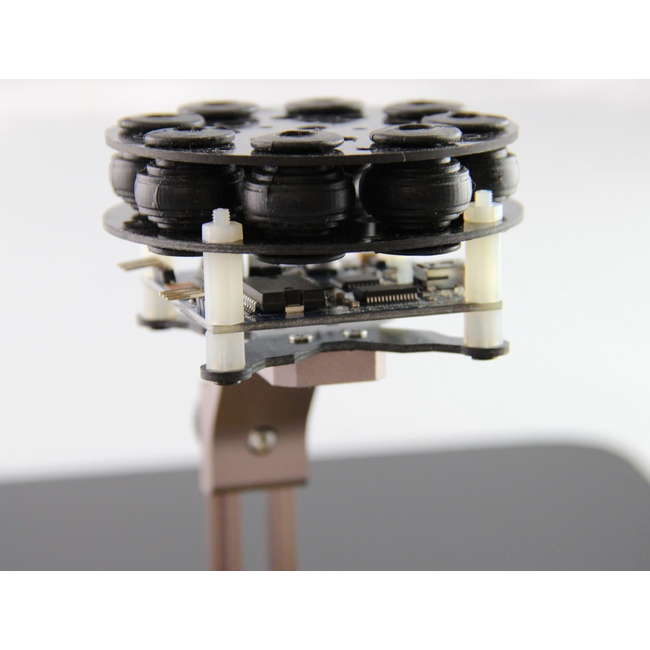

COMPLETE 2 AXIS GIMBAL 22-28 70T FOR CAMERAS 150_300g (Gopro Size)Pre-assembled unit This gimbal is designed for GoPro cameras. The thumb screws on each axis allow you to easily adjust the CG without any tools. The motors are pre-wired, so no need to solder servo cable to the motors! SPECIFICATIONS: Camera: GoPro or similar Gimbal Weight w/motors: 275g Gimbal Motor: maytech 2212 This gimbal includes the controller which is for use with brushless direct drive (BLDC) motors. Included sensor unit with gyro and accelerometer is mounted on the camera platform; the controller unit receives data from IMU to define camera inclination angles. PID-controller calculates the amount of compensation and sends command to the power unit, which controls the current in the windings and thus the direction of the vector of magnetic field in the stator. Magnetic field moves the rotor to the right position. Controller is pre-flashed with latest open source firmware (ex. v49_r161) and includes to aluminum heat sinks for the motor drivers. SpecificationsÔªø:Ôªø USB connector (no FTDI needed) Stabilized VBUS (USB port) Pin layout optimized GND, A1 and A2 GND, multi-port, 5V L6234 brushless motor driver 2 outputs for brushless motors 4 receiver inputs 6 analog inputs Serial port available Power LED (blue) Small LEDs on the USB Dimensions 50 mm x 50 mm Standard MK style mounting holes 45 mm x 45 mm 2 instead of 4 glass diodes SOT23 5V better stabilized Shifter lever on the I2C Bus (3.3V to 5V) Pull reduced (for better edges) Bootloader and firmware of Atmega328 already flashed with the last version

Specifications

Article number
MTGBCOMPLETE 2 AXIS 2228
SKU
MTGBCOMPLETE 2 AXIS 2228
