Description
OS Engines Brushless Outer Motor OMA-5010-810

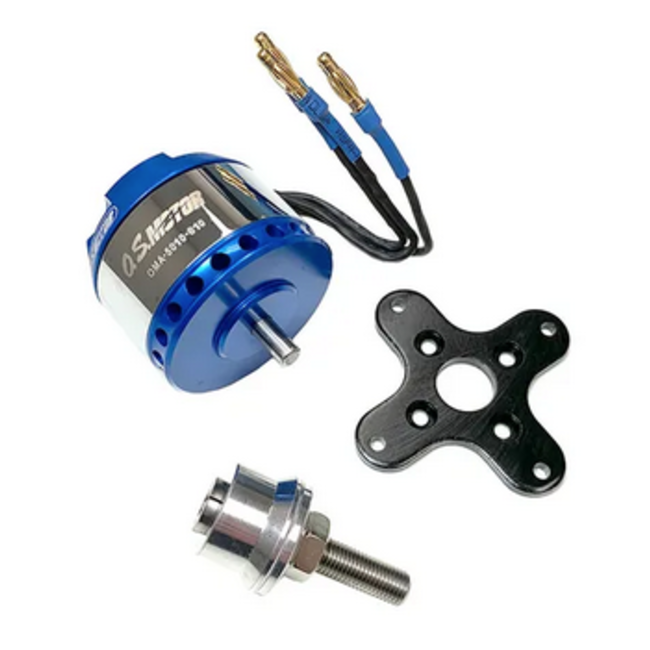

This OS Engines Brushless Motor corresponds to a 52 (8.5ccm engine) 4 stroke glow motor. Comes with propeller adapter, motor mount, screws, gold connectors and shrink stock.
O.S. Engine's outrunners have 3 large bearings, reinforced mid-ring (outer rotor can) and are balanced. Which gives both longer service life and higher power. In addition, they O.S have their own developed cooling system
Specs
- Diameter                   50mm.
- Length                       42mm
- 42mm. kVÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 810
- Power                        814W
- Power cover               45A (Max 80A 5sec)
- Power cover unloaded 1,8A/10V
- Phase resistance         24.5 mm
- Number of poles      14
- Turn                          20
- Weight                 234g.
- Shaft Diameter          6mm
- Axle length                11.7mm
- Wire length:Â Â Â Â Â Â Â Â Â Â Â Â Â Â 110mm
- Contact Type             4mm Round Gold Connector
- Voltage                     11,1V-14,8V (3S-4S LiPo)
- Regulator                  60-80A (depending on propeller selection, see list below)
- Propeller                   12X8E to 14x10E
