Description
The power source for 60-sized aircraft.

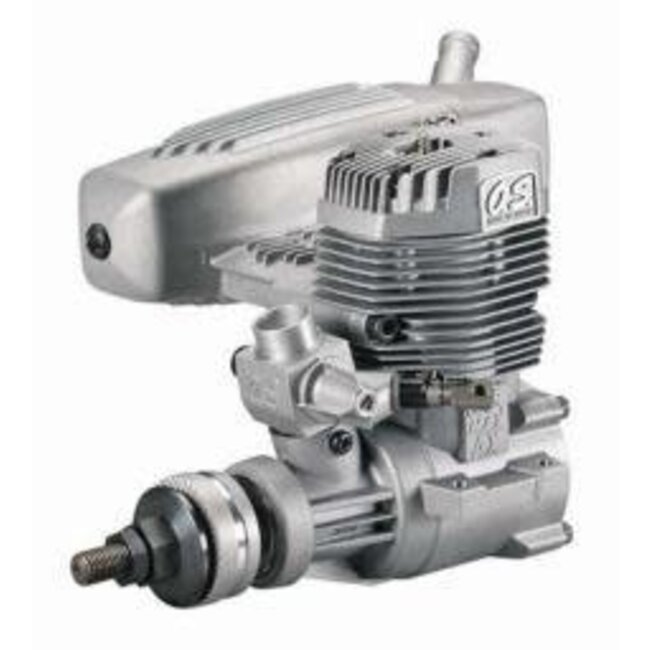

Power up your big bird the easy way: simply swap out your 61FX with the awesome 75AX ABL! It uses the same mount and fits the exact same bolt pattern, so there’s no modifications required. The angular head not only looks sharp, it also significantly increases surface area for better cooling. A diagonally positioned needle eliminates the need for a remote needle valve. Plus, you get a Power Box muffler that's small in size, but robust in volume.
- Fits the same mount and bolt pattern as the 61FX.
- The angular head design looks great and significantly increases surface area for better cooling.
- Includes a Power Box muffler, designed with more volume for increased power while still being very compact.
- A diagonally-placed needle means no remote needle valve is needed.
Product Specifications
| Manufacturer # | 17400 |
| Bore | 1.02" (25.8mm) |
| Crankshaft Threads | UNF5/16 - 24 |
| Crankshaft Type | Threaded |
| Cylinders | Single |
| Displacement | 0.75 cu in (12.3cc) |
| Engine (Only) Weight | 20.39 oz (578g) w/o muffler |
| Power Type | Glow |
| Muffler Type | 2-piece aluminum |
| Muffler Weight | 6.28 oz (178 g) |
| Oil Type & Content | At least 16% synthetic lubricant |
| Plug Type | O.S. #8 |
| Product Height | 4.1" (103.5mm) crankcase botton to top of cylinder head |
| Product Length | 3.7" (94.5mm) from back plate to front of drive hub |
| Product Width | 2.4" (61mm) at mounting tabs |
| Prop Range | 13x8-10 - 14x6-8 |
| RPM Range | 2,000 - 11,000 |
| Stroke | 0.93" (23.5mm) |
