Introducing

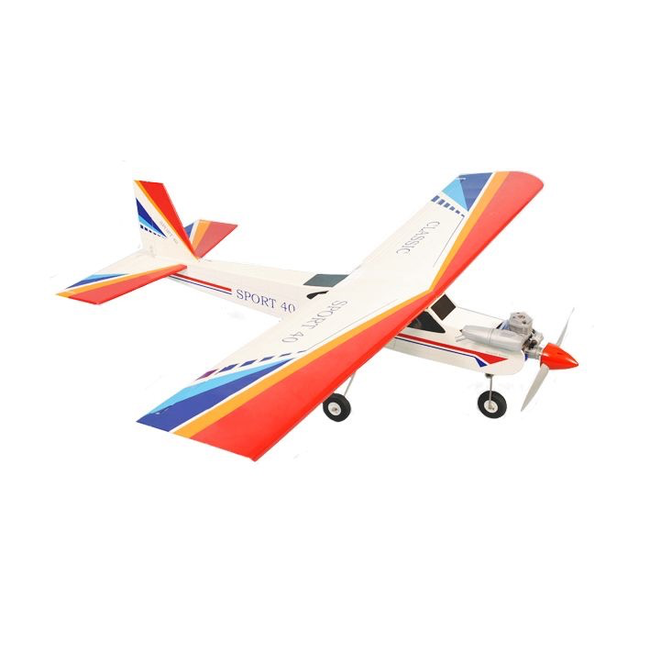

    This is the almost-ready-to-fly. This plane is a well designed 40-46 size trainer for beginner pilots. It has sturdy all balsa/ply wood construction and is very stable in flight. You can fly this plane after 1-2 hours of installation. All the hardware are included (servo wire, fuel tank, wheel/landing gear, etc). You only need to separately purchase the nitro engine and radio system.

Technical data

- Wingspan: 1437mm (56.5in)
- Length: 1145mm (45 in)
- Flying weight: 2400-2700 gr
- Wing area: 35 dm2
- Wing loading: 79g/dm2
- Wing type: Naca airfoils
- Covering type: V-kote film
- Spinner size: Plastic 58mm (included)
- Radio: 4 channel minimum (not included)
- Servo: 5 standard servo: 2 aileron; 1 elevator; 1 rudder; 1 throttle (not included)
- Recommended receiver battery: 4.8-6V / 800-1200mAh NiMH (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine
- Engine: .40-.46 / 2-stroke (not included)
- Motor: brushless outrunner
- Experience level: Beginer
- Plane type: Trainer
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: RIMFIRE .46 (not included)
- Lipo cell: 4-6 cells / 4000-5000 mAh (not included)
- Esc: 50-60A (not included)

Feature

- Designed for compatibility with both GP and EP flight
- Extremely lightweight laser-cut all-wood construction
- All hardware included

Colour chart

Not update...

Packing

BOX DIMENSION
   - 1019mm X 383mm X 108mm (L x W x H)
