Introducing

    The new Yak54 is enhanced with design and structural upgrades that boast a fresh, progressive look and make them extreme aerobatic performers to be reckoned with. This plane allows pilots to achieve unlimited potential for sport and 3D flight - harriers, blenders, knife-edge, torque rolls and more. The Yak54 offers lightweight balsa and light plywood construction dressed in genuine ORA COVER for a vibrant look. Also in the kit is a complete hardware package, an instruction manual, stick-on decals. Hardware items include aluminum landing gear, wheels, engine mount, fuel tank, control horns, clevises, and control rods. This Yak54 is the best choice for you.

Technical data

- Wingspan: 1684mm (66.3 in)

- Length: 1605mm (63.1 in)

- Flying weight: 4700-5200 gr

- Wing area: 54.7 dm2

- Wing loading: 87g/dm2

- Wing type: Naca airfoils

- Covering type: Genuine ORACOVER®

- Gear type: Aluminum Hi-grade for main gear and spring wire for tail gear (included)

- Spinner size: Plastic 70mm (included)

- Radio: 4 channel minimum (not included)

- Servo: 6 standard hitorque servo: 2 aileron; 2 elevator; 1 rudder; 1 throttle (not included)

- Recommended receiver battery: 4.8-6V / 1200-2000mAh NiMH (not included)

- Servo mount: 21mm x 42 mm

- Propeller: suit with your engine

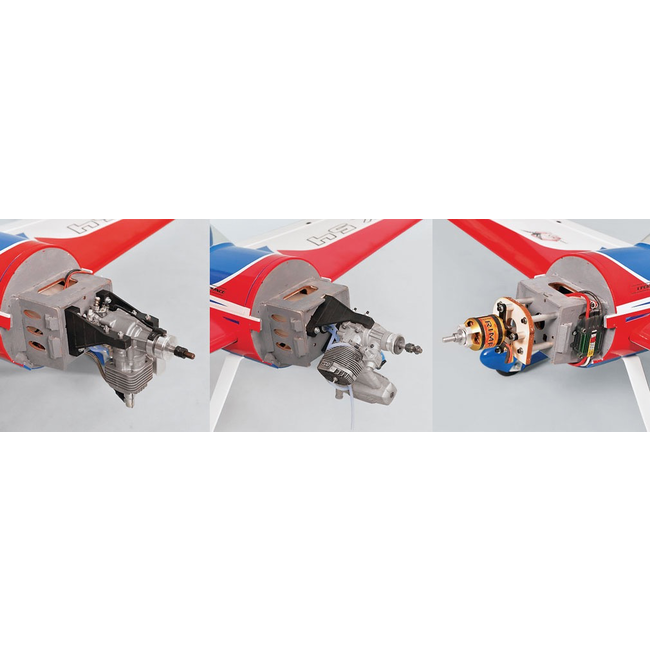

- Engine: .120 / 2-stroke or .120/4-stroke glow engine or 20cc gas engine (not included)

- Motor: brushless outrunner 2000-2400 W, 450 KV (not included)

- Gravity CG: 137 mm (5.3in) Back from  the leading edge of the wing, at the fuselage

- Control throw Ailerons: Low: 11mm up/down, 10% expo; High: 13mm up/down, 10% expo

- Control throw Elevators: Low: 11mm up/down, 12% expo; High: 13mm up/down, 12% expo

- Control throw Rudder: Low: 35mm right/left, 15% expo; High: 60mm right/left, 15% expo

- Experience level: Intermediate

- Plane type: Scale Aerobatic

RECOMMENDED MOTOR AND BATTERY SET UP

- Motor: RIMFIRE .120 (not included)

- Lipo cell: 6-12 cells / 4000 – 5500mAh (not included)

- Esc: 80-100A (not included)

Feature

- Capable of both precise and extreme 3D aerobatics

- Designed for compatibility with both GP and EP flight

- Genuine Oracover covering

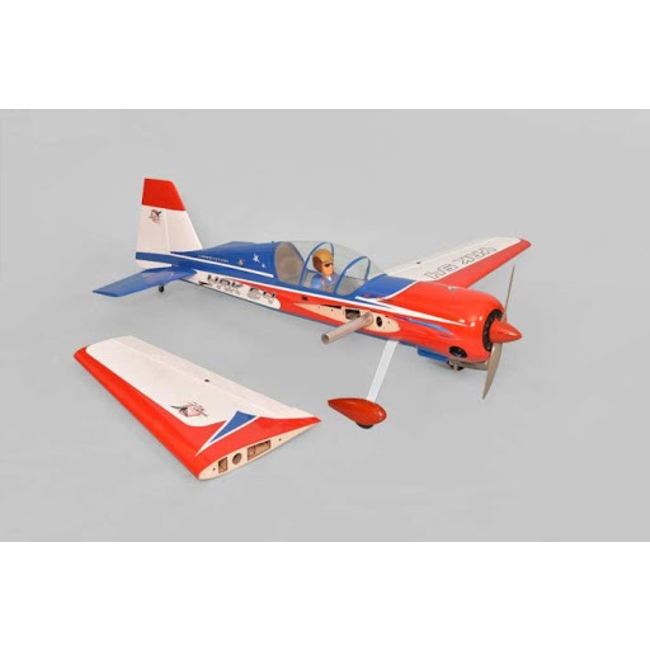

- Bolt-on two-piece wing for easy transport and setup at the field

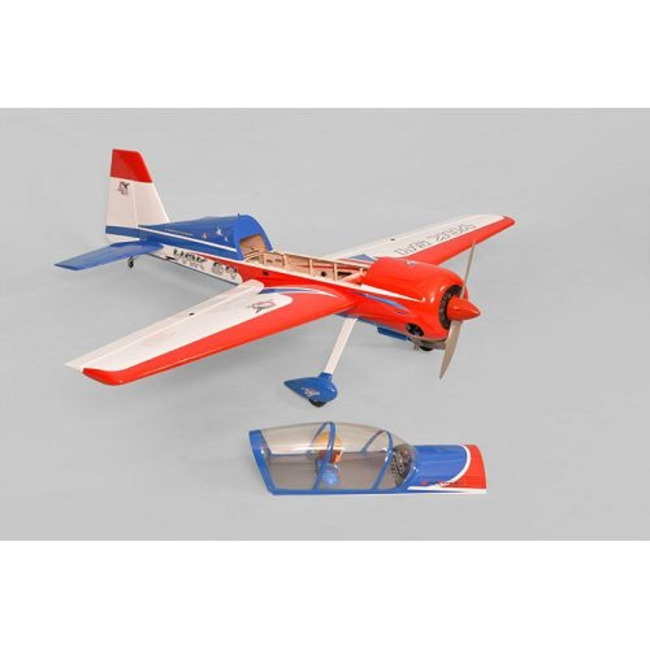

- Removable canopy for easy change lipo battery and set up radio

- Extremely lightweight laser-cut all-wood construction

- Durable factory-painted fiberglass cowl

- Prepainted pilot figure, preinstalled in cockpit

- All hardware included

MANUAL DOWNLOAD
