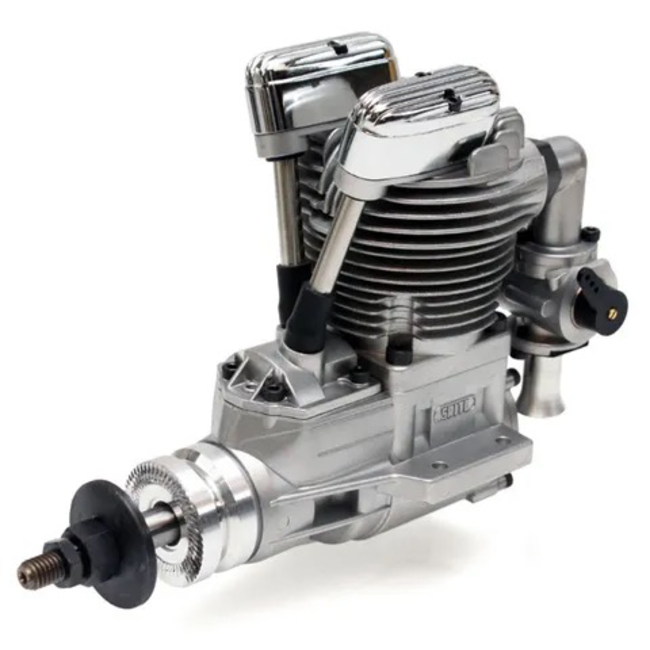

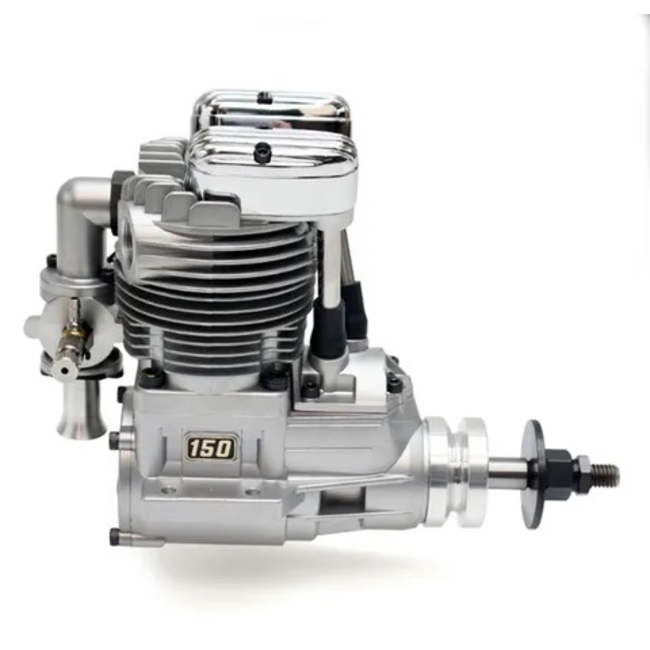

SAITO FA-150B 4-Cycle Glow Engine Read more.
Features
Overview
The 1.50S is actually a bored-out 1.20S for an incredible power-to-weight ratio. With over 20% greater displacement, the 1.50S will happily swing an APC 16x8 prop at 8,800 rpm with 15% fuel.
LINK TO SAITO HAND BOOK BOOK https://www.saito-mfg.com/e-book/index.html
Specifications
| Application: | Airplane |
| Benchmark Prop: | 16x8 APC @ 8800 |
| Bore: | 1.33 in (34.00 mm) |
| Carb Type: | Barrel 2 Needle Valve |
| Crank Type: | Ball Bearing |
| Crankshaft Threads: | M8 x 1.25mm |
| Cylinder Type: | AAC |
| Cylinders: | Single |
| Displacement: | 1.50 cu. in. (24.58 cc) |
| Engine (Only) Weight: | 30 oz |
| Fuel Type: | Glow |
| Mounting Dimensions: | 138 x 69 x 134 mm |
| Muffler Type: | Cast |
| Prop Range: | 16x8 - 18x6 |
| RPM Range: | 2000 - 10500 |
| Stroke: | 1.08 in (27.60 mm) |
| Type: | 4-stroke |
(SAITO150B)
