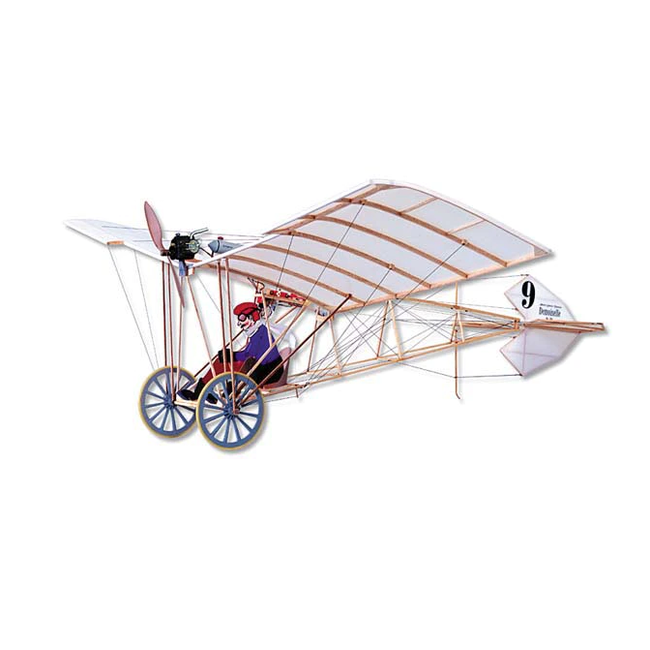

Name: SIG KIT 1909 DEMOISELLE KIT 1.105mm Span
SKU: SIGRC90
Price: 238.00 AUD
Availability: InStock

Description



Travel back to yesteryear when courageous young men created magnificent flying machines to break the bonds of mother earth and soar with the eagles. With the 100th anniversary of manned flight approaching, who else but SIG can help you experience the thrill and excitement of these early aviators as you break the bonds of the local flying field, taking to the air indoors.
	Designed to fly indoors or in no-wind conditions in the backyard, each of our Pioneers of Flight airplanes give you the experience of flight like their full size counterparts. Check out the operational, fully articulated flying stab on the 1909 Demoiselle, the replica engines, and the early aviator pilot figure. And with state-of-the-art electric motors and miniature electronics, the air space inside your local gym truly becomes a pioneering adventure.
Each SIG Pioneer of Flight airplane features laser-cut parts for outstanding accuracy and ease of assembly. You'll also find easy-to-use Lite-Span covering material, simulated rigging, pull-pull lines, wheels, tires and SIG hardware in every kit. Of course, it wouldn't be a SIG airplane without full size plans and a complete, fully illustrated instruction manual that makes building these planes as much fun as flying them. All at a price that belongs in the last century.

Wing Span

44.5 in

1105 mm

Wing Area

509.75 sq in

32.9 dm²

Fuselage Length

35 in

889 mm

Weight w/o battery

6.5 - 7.5 oz

184 - 213 g

Radio Required

3 channel, 2 micro servos, 5A ESC (not included)

Electric Motor Required

Set Up Specifications

Accessories

Maxx Products HRC2212-0840 (not included)

Elevator	1 1/2	inch	38	mm	Up
	1 1/4	inch	32	mm	Down
Rudder	1 7/8	inch	48	mm	Right and Left
Center of Gravity	4 1/4	inch	108	mm	From leading edge
Dihedral		degrees		degrees
Incidence	+ degree wing, degree stabilizer


Propeller	SIGEP1047 10x4.75 electric prop or
	GWS 10x5 electric prop
Covering	Covering NOT included!

Demoiselle Kit Instruction Manual Click to open in a new window.

	Complete Pdf (3.3 Mb) Download
