Description

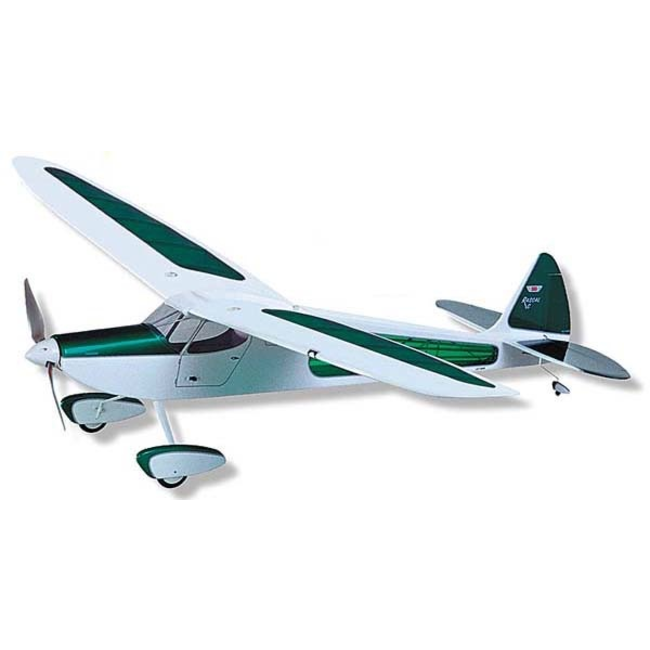

There was a simpler time when the lines of a model airplane could have an almost magical effect on a modeler. The Rascal R/C is that kind of model. Specifically designed to be powered by either a geared Speed 400 electric motor or .049-.074 R/C glow engines, the Rascal performs like no other plane in its class.
Loops, rolls and many other magical maneuvers are but a take off away. This CAD aided design is almost totally laser-cut with quality graded SIG AAA balsa. This kit features full sized, rolled plans, a completely illustrated instruction manual, SIG hardware, beautiful decals including a full color instrument panel, and a gorgeous set of molded wheel pants.

¬†


The Rascal with a .061 Glow Engine	Easy Access Bottom Hatch for Battery Pack and Radio Equipment	Plenty of Room for Geared Speed 400 Motors

KEY FEATURES:

Wingspan

49 in

1245 mm

Wing Area

324 sq in

20.9 dm¬≤

Length

32.5 in

825.5 mm

Flying Weight - Electric
Inc. 7-Cell Nicad
Battery Pack weight

22 - 24 oz

625 - 680 g

Flying Weight - Glow

18 - 20 oz

510 - 567 g

Radio Required
(not included)

3-Channel - Rudder, Elevator, and Throttle

Power
(not included)

¬†

Set Up Specifications

¬†

Accessories

Electric - Speed 400 Motor and Gear Drive Unit
Glow - .049 - .074 2-Stroke Glow Engine

¬†

Elevator	¬†	¬† 1/4	inch	6	mm	Up and Down	¬†
Rudder	¬†	¬† 3/8	inch¬†	10	mm	Right and Left
Center of Gravity		0¬†¬†¬†¬†¬†	inch	0	mm	At the wing spar
Dihedral	¬†	¬†	degrees	¬†	degrees	¬†	¬†
Incidence	¬†	+ 0 degree wing, 0 degree stabilizer				¬†	¬†
Engine Offset		¬†3 degree down, 0 degree right				¬†	¬†
¬†	¬†	¬†	¬†	¬†	¬†	¬†	¬†
¬†	¬†	English		Metric		Number Required
Main Wheels	¬†	1¬† 7/8	inch	48	mm	2	¬†
Fuel Tank	¬†	2	ounce	59	cc	1	¬†
Battery Pack		7 or 8 cell 600AE Nicad				1	¬†
Spinner	¬†	1.5	inch	38	mm	1	¬†
Covering	¬†	2 rolls depending on trim scheme

SIG KIT RASCAL
