Electric R/C Car Series no.689

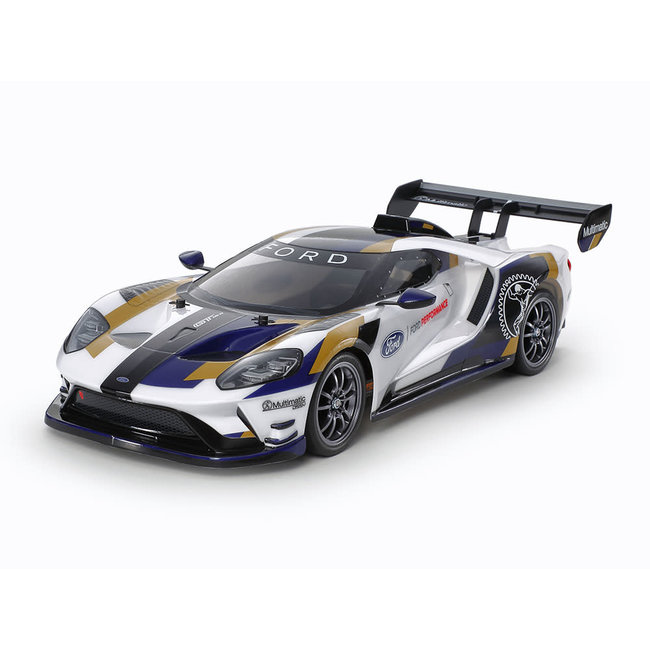

1/10 R/C 2020 Ford GT Mk II (TT-02)
Item No: 58689
Length: 479mm. Image shows painted and assembled kit.
| Mesmerizing Modern Classic Announced in 2019, the GT Mk II is based upon the Ford GT, and the performance has been thoroughly tuned without limitations related to race and public road regulations. A 3.5-liter V6 twin turbo engine capable of 700hp is employed, and the body was refined for aerodynamic efficiency. Only 45 of the full size car are to be produced, but Tamiya is on hand with this R/C model assembly kit depicting the car. The body is molded in polycarbonate, and the kit comes with stickers to apply the black, blue and gold sections of the livery, as well as various logos. |
Â

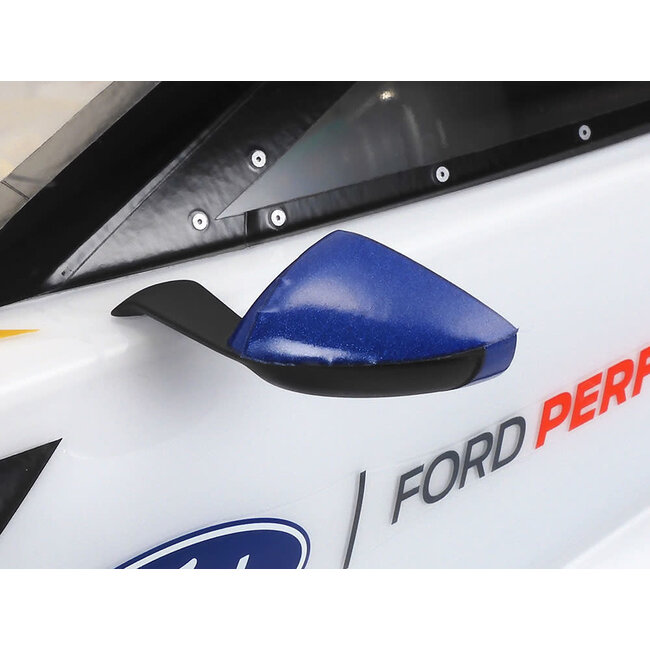

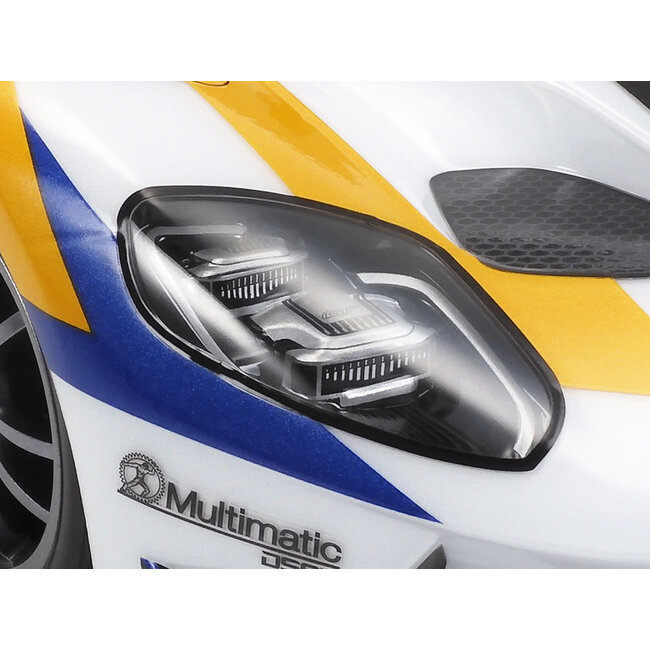

 ★The ultra-sleek, honed form of the body design is captured expertly in lightweight, durable polycarbonate. |  |  ★Light cases are separate polycarbonate parts; a paint job and stickers give a highly realistic finish. | |  ★Dedicated, separately molded plastic components are used to depict the 2020 GT Mk II's distinctive side mirrors. |
Â

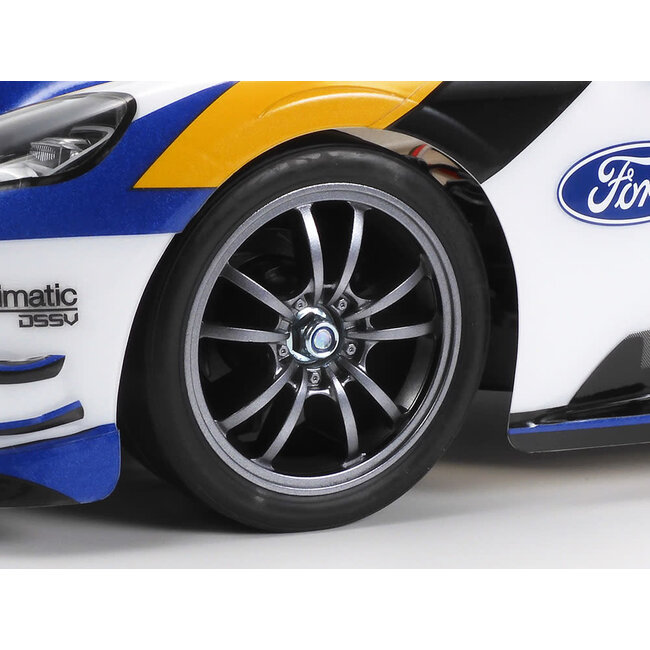

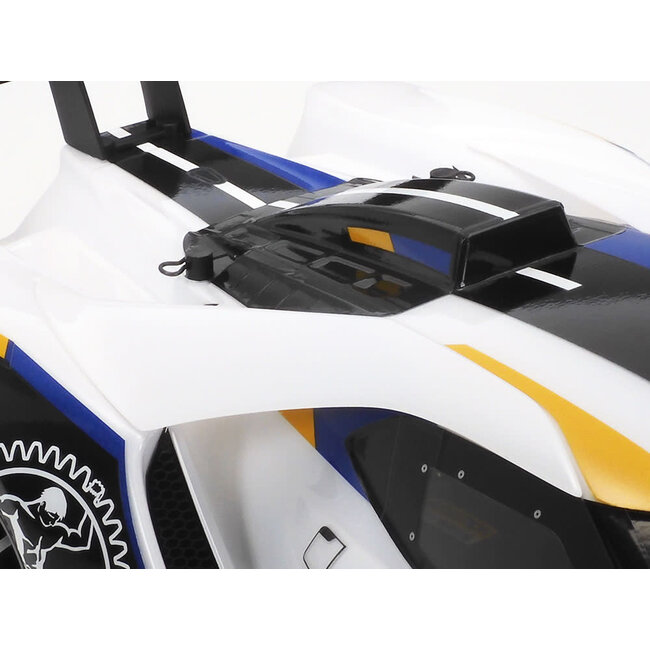

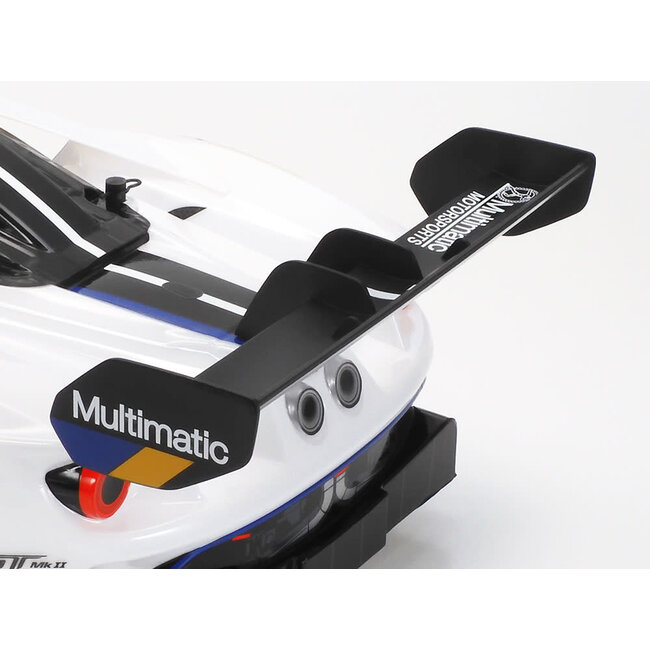

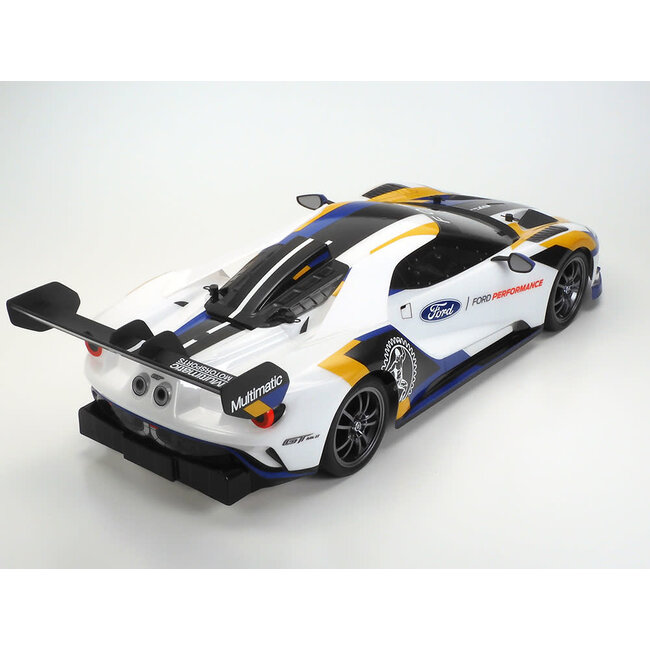

 ★Buttresses connecting roof and rear fenders are separate parts. The tapered door design is also captured. | |  ★The rear of the car has an authentic look, with recreations of the big wing and prominent diffuser. | |  ★Gun metal color 10-spoke wheels are paired with semi-pneumatic tires for great looks and performance. |
Â
| TT-02: Adaptable, balanced shaft driven 4WD The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gun metal color 10-spoke wheels use tread patterned semi-pneumatic tires. |
Â
 | |  | | ★Left: Resin ball links in the steering linkage joints make for smooth, comfortable motion. ★Right: Wheel hubs are shaped to look like brake discs. |
Â
 | |  | | ★Left: Motor cover includes removable cooling duct (not attached in image). ★Right: This image gives a closer look at the rear double-wishbone suspension with friction dampers. |
Â
| Specifications ★Length: 479mm, Width: 188mm, Height: 112mm ★Wheelbase: 257mm　★Tire Width/Diameter: 27/67mm (Front & Rear) ★Bathtub-type Frame ★Shaft-Driven 4WD ★Front/Rear 4-Bevel Resin Differentials ★3-Piece Steering Tie-Rod ★4-Wheel Double Wishbone Suspension ★Front/Rear Friction Dampers ★Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions) ★Type 540 Motor ★Electronic Speed Controller (ESC) is sold separately. |
Â
| Separately Required Items ★2-channel R/C system w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger |
