Special Edition R/C Product
1/10 R/C Saint Dragon 4WD (2021)
Item No: 47459

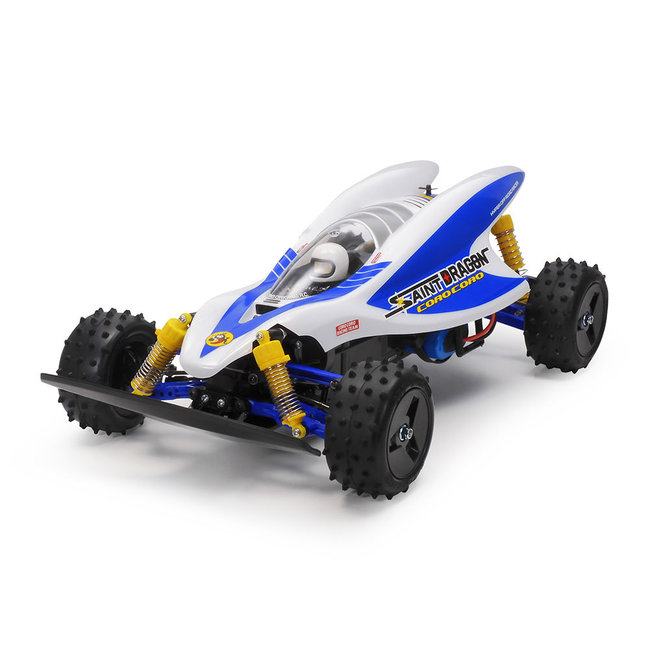

Length: 390mm. Image shows assembled kit.
| Enter... This R/C assembly kit recreates the 4WD buggy Saint Dragon which was the main model of a popular 1980s Japanese comic. The chassis consists of a tough bathtub frame plus front and rear gearboxes with suspension attached. 4-wheel double wishbone suspension uses CVA oil dampers for a superior ride, and a front stabilizer for a firm setup. The stylish body is molded in polycarbonate and pre-painted white, just requiring application of stickers to finish it. |
Â
| Efficient Shaft-Driven 4WD The chassis features a shaft-driven 4WD drivetrain married to a lightweight and tough bathtub frame that employs front and rear gearboxes with the suspension attached to them; that suspension utilizes upper "I" and lower "H" arms, and offers a ground-hugging drive. CVA oil dampers and a front stabilizer contribute further to an excellent drive. Both gearboxes house a gear differential, and are compact to ensure plentiful ground clearance. The kit also features an aluminum motor mount for superior heat dissipation. |
Â

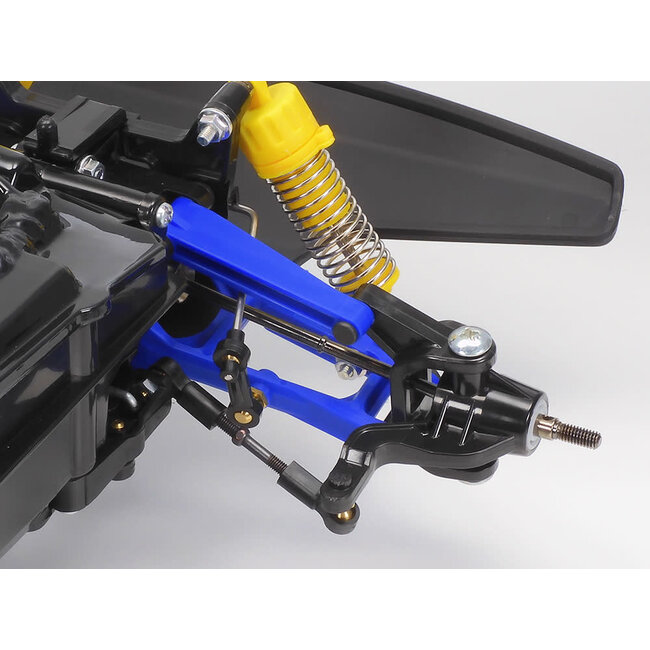

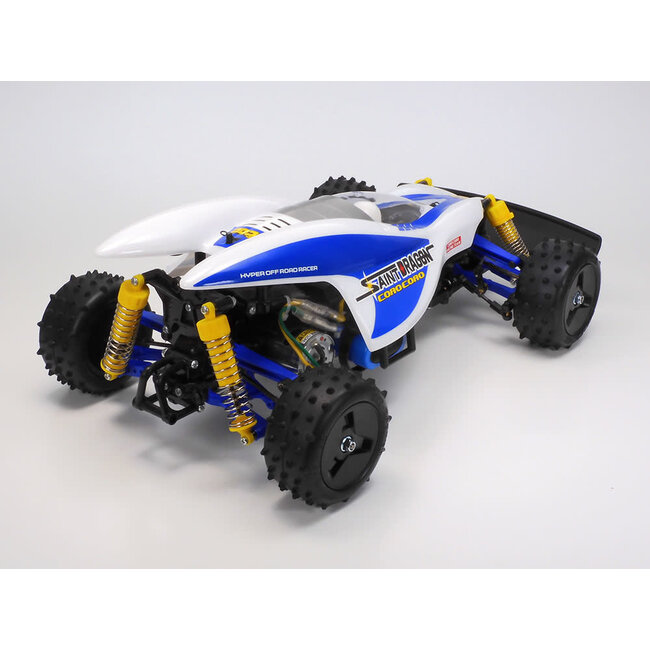

 ★The flowing, dynamic body lines are a real treat; it is pre-painted in white, and pre-cut, just requiring application of stickers. |  |  ★A durable, easy-maintenance layout employs a bathtub frame with front and rear gearboxes screw-attached to it. | |  ★Double-wishbone suspension features upper "I" and lower "H" arms, and employs a front stabilizer to minimize roll when cornering. |
Â

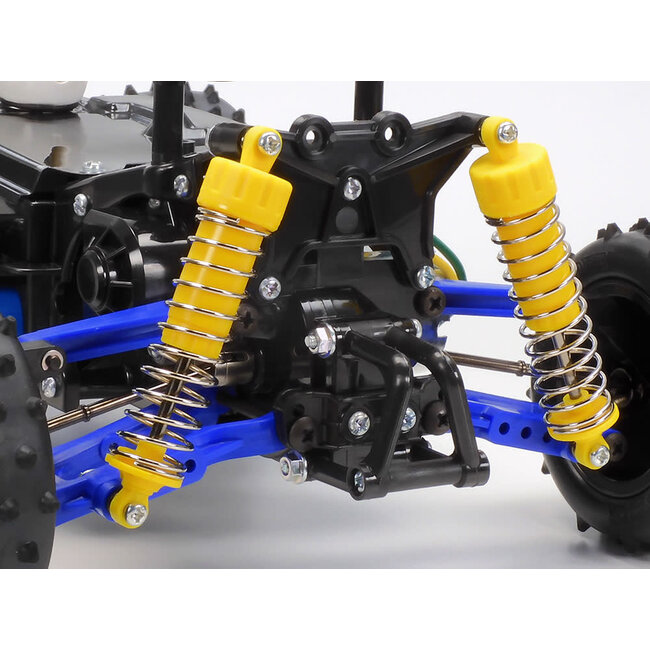

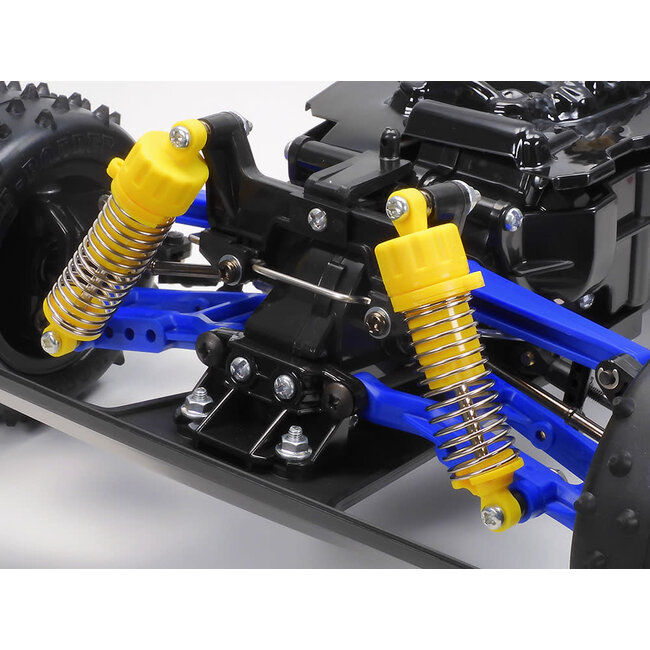

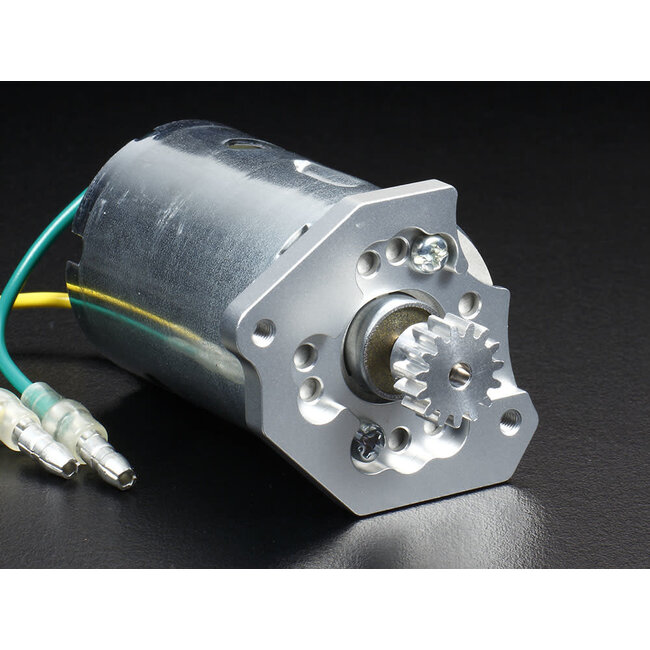

 ★CVA oil dampers give exemplary shock absorption that translates into a highly controllable drive. | |  ★An aluminum motor mount not only boosts the model's rigidity, it also helps with motor heat dissipation. | |  ★This image is a close up on the CVA oil damper-fitted rear double wishbone suspension. |
Â

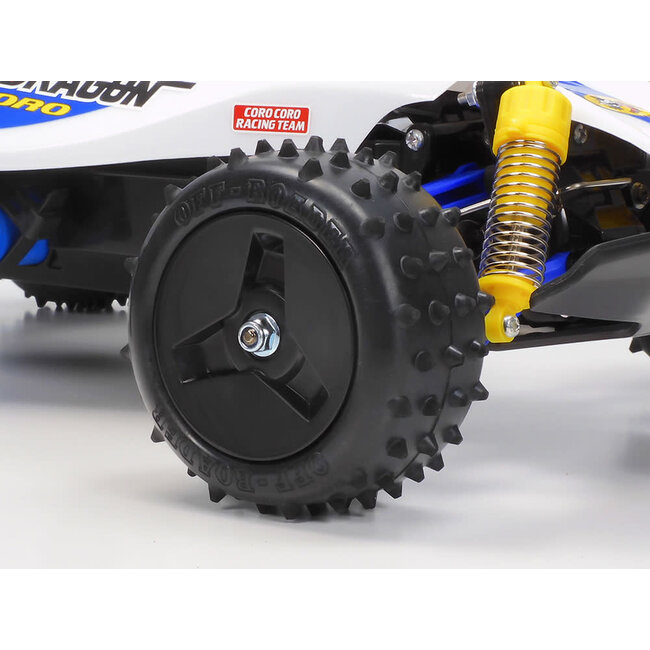

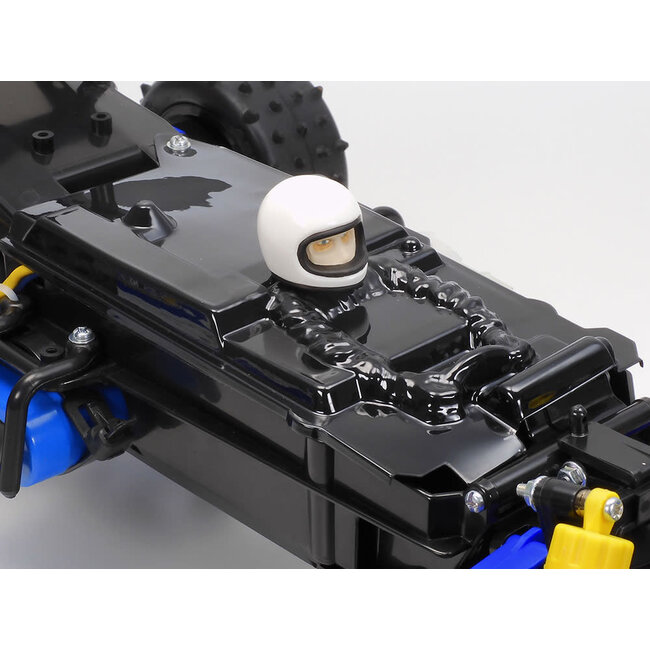

 | |  | | ★Left: Dish wheels attract less mud when driving; they are paired with grippy spike tires. ★Right: The polycarbonate chassis cover includes a depiction of driver arms. The helmet is a separate part. |
Â
| Specifications ★Length: 390mm, Width: 240mm, Height: 135mm ★Wheelbase: 260mm ★Minimum ground clearance: 23mm ★Tread: 203mm (front), 194mm (rear) ★Bathtub frame ★Tire width/diameter: 38/83mm (front and rear) ★Shaft-driven 4WD ★3-bevel differential gears (front and rear) ★3-piece steering tie-rod ★4-wheel independent double wishbone suspension ★Gear ratio = 7.68:1 ★Type 540 Motor ★Electronic Speed Controller (ESC) is sold separately. |
Â
| Separately Required Items ★2-channel R/C system w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger |
