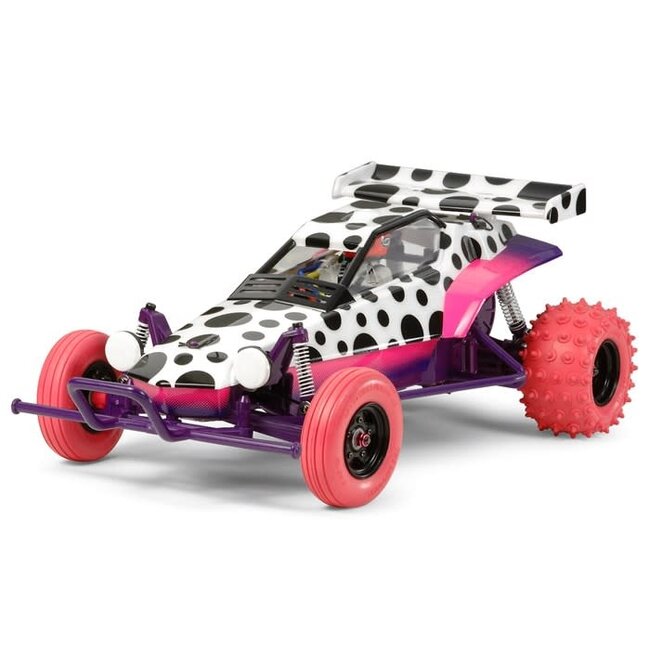

The Hornet is built around a simple yet robust chassis with an ABS box type frame and durable front swing axle and rear rolling rigid suspension setups. The rear oil dampers give it the muscle to take on tough surfaces, while the gearbox is a sealed design to help keep out dirt and debris; the differential gear inside ensures smooth cornering. Three-piece wheels are employed front and rear, and paired with front grooved and rear pin spike tires. Black tires are also included in the kit.
Specifications
★Length: 400mm, width: 230mm, height: 150mm. Weight: 874g ★Wheelbase: 251mm ★Ground clearance: 16mm ★Type 540 motor ★Rear-wheel drive ★Tread: 172mm (front), 185mm (rear) ★3-bevel differential gear ★2-piece steering tie-rod ★Independent swing axle front suspension ★Rolling rigid axle rear suspension ★Gear ratio = 8.2:1 ★Contact your local Tamiya Agent regarding the ESC.
Separately Required Items
★2-channel R/C system w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger
Chassis assembly instruction manual (PDF)
