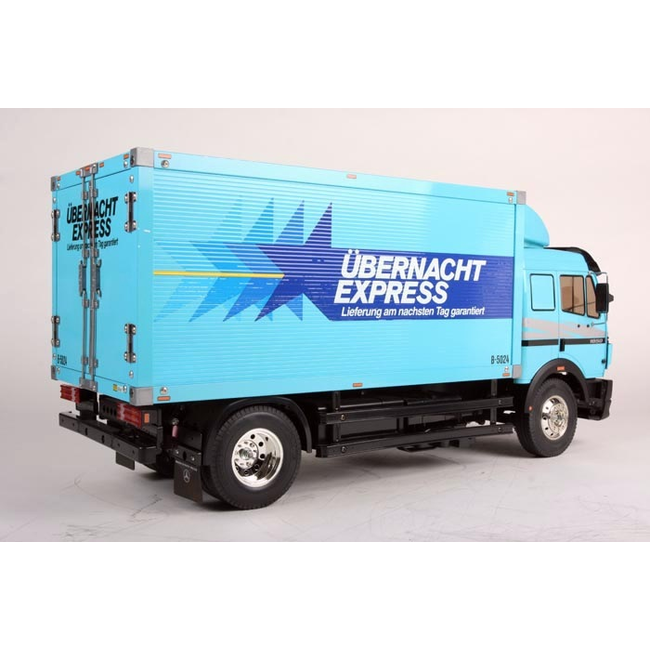

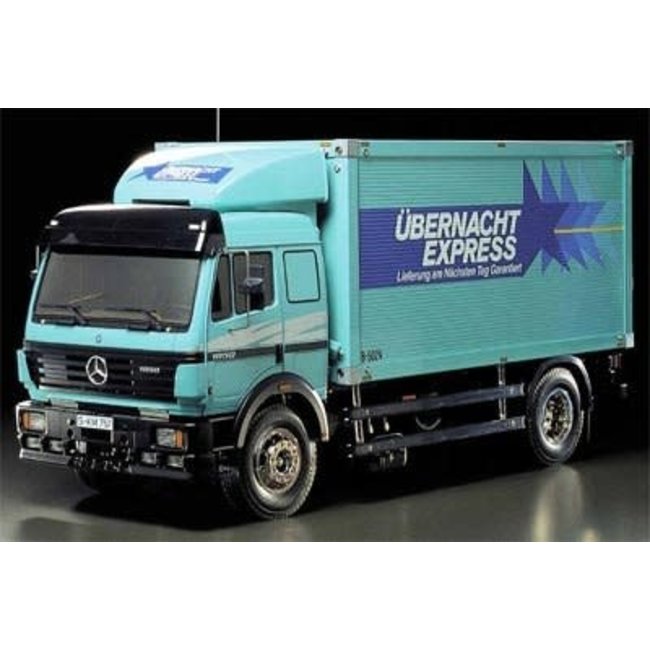

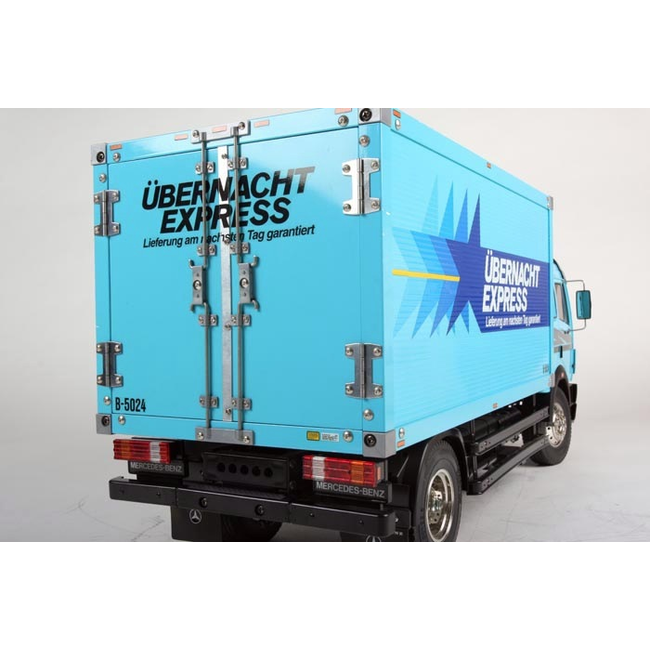

TAMIYA 1/14 SCALE MERCEDES-BENZ 1850L DELIVERY TRUCK

Tamiya made 1/14 Mercedes Benz 1850L (56307) On-Road Tractor Trucks assembly kit

• The 1850L delivery truck is regarde as a new trend setter with its aerodynamically sophisticated appearance and extremely reliable mechanics. Tamiya&39;s model of the Mercedes-Benz 1850L realistically captures the looks of the full-sized truck.

Features:

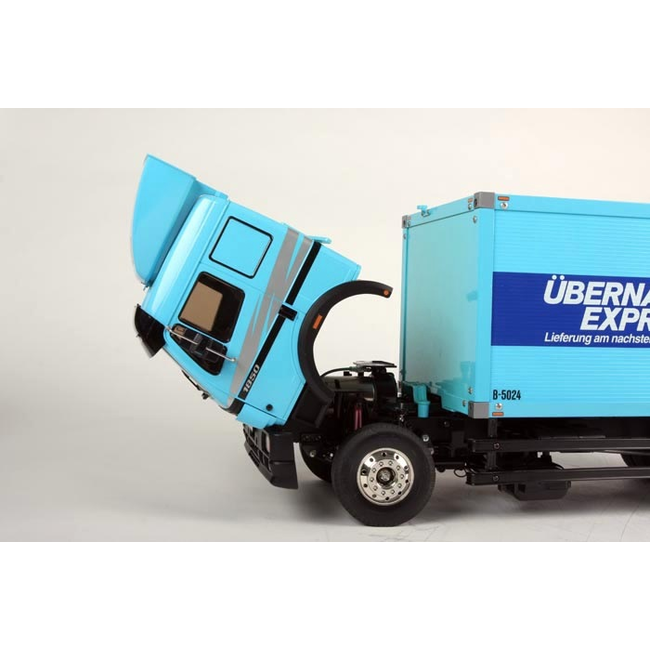

• Cab-Over Style
• Leafspring Suspension

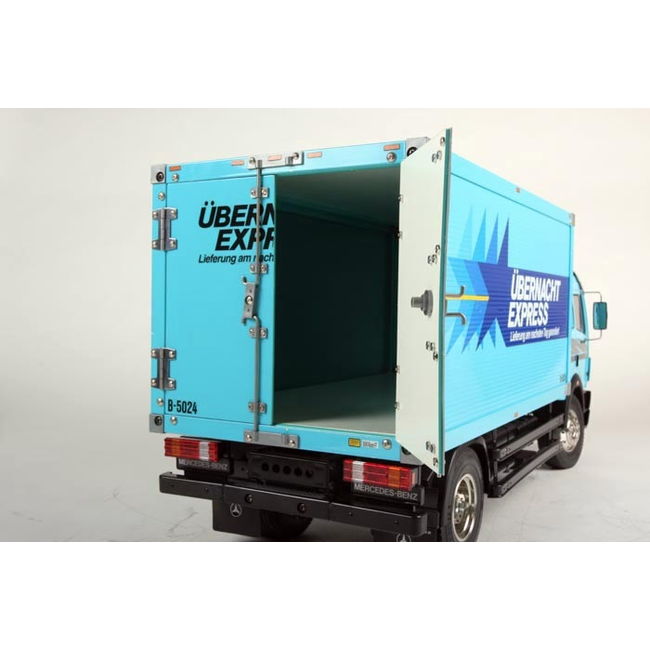

• Built-in Freight Box
• Rubber Tires
• Hop-up Parts Available

Specifications:

• Scale: 1/14
• Length: 22.36 inches (568mm)
• Width: 7.95 inches (202mm)
• Wheelbase: 14.17 inches (360mm)
• Front Tread: 6.14 inches (156mm)
• Rear Tread: 5.43 inches (138mm)
• Weight: 8.84 lbs. (4010g)
• Chassis: Aluminum ladder
• Suspension: Solid Axle
• Damper Type: Metal friction
• Drive Train: Gearbox (3-speed)
• Gear Ratio: 10.6:1 - With the 3-speed gearbox, 10.6:1, 17.7:1 and 32.4:1 are possible
• Differential Type: Bevel Gear
• Engine: Electric 540
• Wheels & Tires: Chrome/Radial
• Body Type: Styrene(plastic)
• Radio Control Unit: (not included) Can be operated with a 2-channel radio but a 4-channel system is recommended for potential future options.
• Trailer: The Mecedes-Benz 1850L has a built-in trailer made of high quality aluminum.
• Battery: Requires a 7.2V battery and charger

• Euro Truck Required items (not included)

  • 4 x AA Batteries
  • 7.2v NiMh Battery
  • NiMh Charger
  • 2 x Servo
  • Radio Transmitter & Receiver
  • Electronic Speed Controller (ESC)
  • Optional: Tamiya semi truck multi function unit #56523
  • Recommended Tools:
  • Large Philips head screwdriver
  • Small Philips head screwdriver
  • Modelling knife
  • Long nose pliers
  • Side cutters
  • Scissors
  • Tweezers
  • Plastic cement
  • Instant cement
  • Synthetic rubber cement
  • File
  Important: If you are going to use A Tamiya truck with A ( mfc-01 )  MFU (Multi Function Unit). It is strongly recommended   only use an analogue remote controller like the Futaba T6L

Spare Parts & Hop Up Options:

• 56501 - Tractor truck electrical unit set
• 56503 - Tractor truck oil shocks
• 56507 - Telescopic antenna
• 56508 - Truck aluminum front wheels (1 pair)
• 56509 - Truck aluminum rear wheels (1 pair)
• 56510 - Tractor truck sound effects set

Suggested Paint Colors:

• TS-41 - Coral Blue
• TS-56 - Brilliant Orange
• X-18 - Semi Gloss Black
• X-24 - Clear Yellow
• XF-11 - J.N. Green
• XF-26 - Deep Green
• XF-27 - Black Green
• XF-66 - Light Grey
