Rc Mercedes-Benz Actros
-
Description

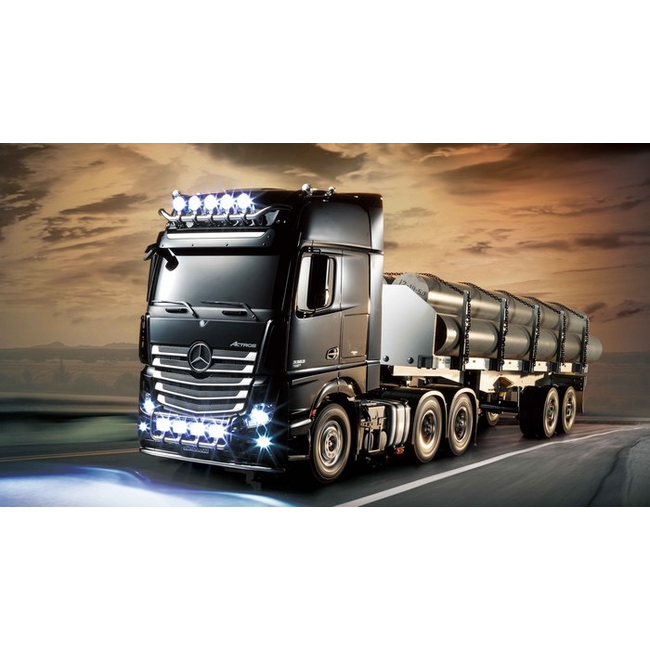

The 2012 Truck of the Year award-winning Actros series is the flagship of the world's leading truck manufacturer, Daimler AG (Germany). This R/C model assembly kit recreates the dual rear axle-driven Actros 3363 6x4 GigaSpace model, which runs on a 15.6-liter turbocharged inline-6 engine capable of 630hp. The model's highly detailed body breathtakingly captures the powerful form of the truck, including depictions of auxiliary lights on cab roof and bumper. Its ladder frame chassis features aluminum side channels with resin cross members, while the suspension employs leaf springs and friction dampers. An assembly type 3-speed transmission allows gear changes via separately available 4-channel transmitter.
Realistic Lights, Sounds, and Vibration
Tamiya Multi-Function Control Units (included for Japanese market only, available separately overseas) offer light, sound, and vibration operation to accompany your R/C truck experience. Engine sounds have been digitally recorded from an actual truck, and together with air horn, gear shifting, and many other realistic sounds, give you the feeling that you are driving the real thing! Headlights, brake lights, fog lamp, hazard lights and turn signal operations are also at your fingertips.
Specifications
●Length: 538mm, Width: 195mm, Height: 305mm, Weight (without optional parts): Approx. 3.9kg ●Wheelbase: 237＋103mm ●Tread: 155mm (Front), 138mm (Rear, Double Tire) ●Chassis: Aluminum & Polycarbonate Resin Ladder Frame ●Suspension: Front/Rear Leaf Springs ●Caster Angle (Front/Rear): 0°/0° ●Camber Angle (Front/Rear): 0°●Toe Angle: 0°(Front & Rear) ●Dampers: Aluminum Dummy Dampers (Front & Rear) ●Drivetrain: Rear Double Axle Drive ●Transmission: 3-gear transmission (gear shifting operated via transmitter) ●Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1 ●Diff. Gear: 3-bevel diff ●Motor: Type 540 ●Tire Width/Diameter: 30mm/85mm (Front), 22mm/83mm (Rear) ● Requires 4-channel radio, 7.2V battery pack & charger, and TS paint. (sold separately).
Euro Truck Required items (not included)
- 4 x AA Batteries
- 7.2v NiMh Battery
- NiMh Charger
- 2 x Servo
- Radio Transmitter & Receiver
- Electronic Speed Controller (ESC)
- Optional: Tamiya semi truck multi function unit #56523
- Recommended Tools:
- Large Philips head screwdriver
- Small Philips head screwdriver
- Modelling knife
- Long nose pliers
- Side cutters
- Scissors
- Tweezers
- Plastic cement
- Instant cement
- Synthetic rubber cement
- File
Important: If you are going to use A Tamiya truck with A ( mfc-01 ) MFU (Multi Function Unit). It is strongly recommended only use an analogue remote controller like the Futaba T6L
