Special Edition R/C product
1/10 R/C Thunder Dragon (2021)
Item No: 47458

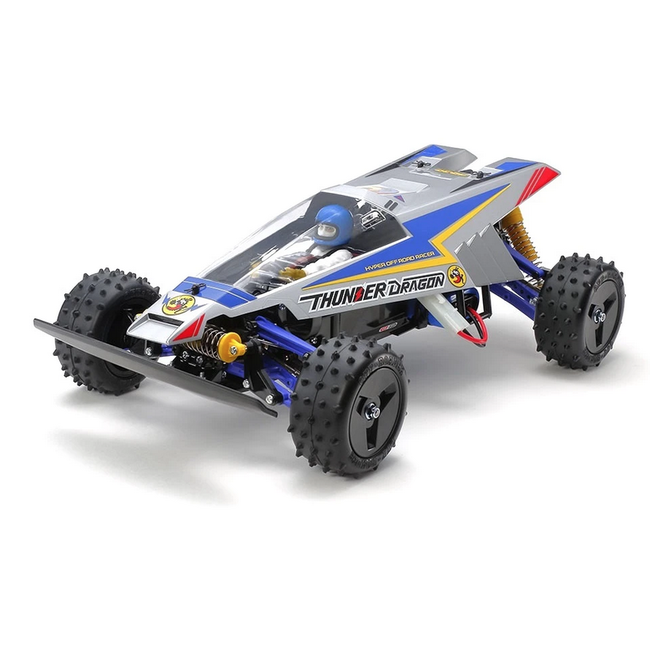

Length: 390mm. Image shows painted and assembled kit.
| Thunder & Flame This assembly kit creates an updated re-release version of the classic R/C off-road buggy Thunder Dragon, which appeared in a Japanese cartoon in the 1980s. Its ABS bathtub frame is tough and allows easy maintenance, while 4-wheel double wishbone suspension uses CVA oil dampers and a front stabilizer for a superior ride. Sealed gearboxes front and rear contain differentials with die-cast 3-bevel types for smooth, superior handling feel, and semi-pneumatic spike tires give great grip. The streamlined body is molded in polycarbonate, with non-canopy sections painted in silver. It is pre-cut for convenience. |
Â
| Tough Shaft-Driven 4WD The midship motor, shaft-driven 4WD chassis is based around a lightweight and tough monocoque, with 4-wheel independent double wishbone suspension attached to gearboxes: an easy maintenance layout using upper "I" and lower "H" arms. Dual CVA oil dampers at the rear and a single one in the front monoshock setup are joined by a front stabilizer for optimal flex. Gear differential units front and rear are in sealed gearboxes, and an aluminum motor mount further improves reliability. |
Â
 ★Front double wishbone suspension utilizes upper "I" arms and lower "H" arms for a ground hugging drive. |
 |
 ★A front monoshock setup employs a CVA oil damper and helps limit roll when your buggy is cornering. |
|
 ★A close-up on the aluminum motor mount, which facilitates rigidity and superior heat dissipation. |
Â

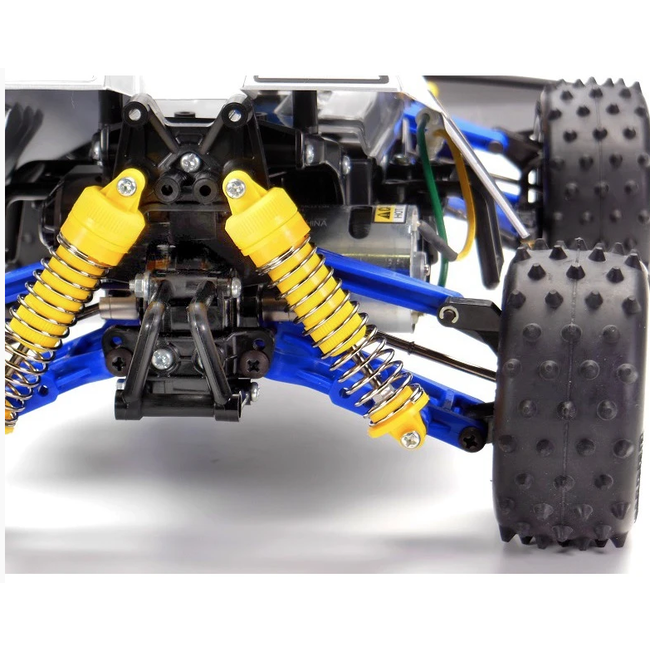

 ★The double wishbone suspension setup at the rear employs dual CVA oil dampers for a smooth ride. |
|

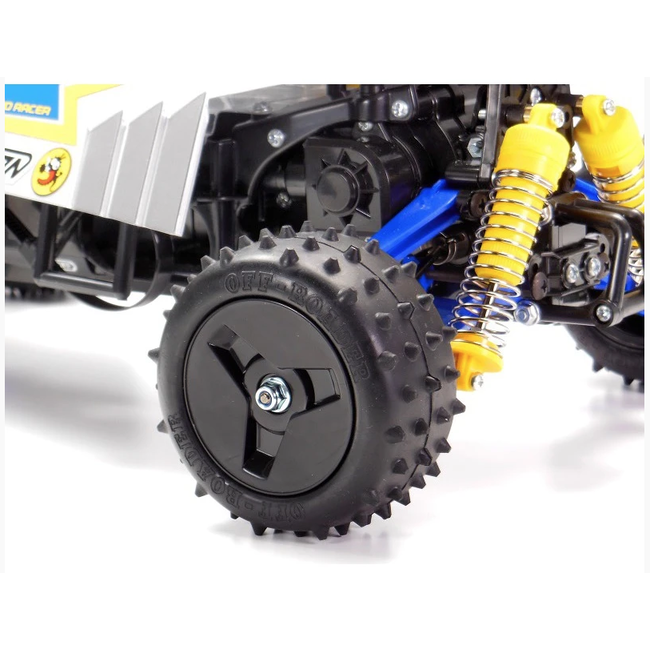

 ★Dish design wheels help mud and dirt to slide right off, and are paired with grippy spike tires. |
|
 ★A polycarbonate chassis cover provides protection from dirt, and features a driver figure for realism. |
Â
| Specifications ★Length: 390mm, Width: 240mm, Height: 139mm ★Wheelbase: 260mm ★Minimum ground clearance: 23mm ★Tread: 203mm (front), 194mm (rear) ★Bathtub frame ★Tire width/diameter: 38/83mm (front and rear) ★Shaft-driven 4WD ★3-bevel differential gears (front and rear) ★3-piece steering tie-rod ★4-wheel independent double wishbone suspension ★Gear ratio = 7.68:1 ★Type 540 Motor ★Electronic Speed Controller (ESC) is sold separately. |
Â
| Separately Required Items ★2-channel R/C system w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger |
