Electric R/C Car Series no.685
1/10 R/C Comical Hotshot (GF-01CB)
Item No: 58685
Length: 345mm. Image shows assembled kit.
| Wonder Shot! This assembly kit creates the Comical Hotshot, an exciting off-road buggy inspired by that Tamiya legend the Hotshot. It comes with a stylish polycarbonate body pre-painted in red and with body mount holes already made; depictions of megaphone rear exhausts add a nice touch. The front bumper has space for the installation of four separately-sold LEDs. The GF-01CB chassis employs highly capable gear-driven 4WD and is paired with ST block bubble tires - take it for a spin on- or off-road and you'll have a whale of a time! |
| GF-01: Seriously Stable 4WD This gear-driven 4WD chassis is based around a lightweight and tough monocoque frame, with power provided by the centrally-positioned motor. Sealed gearboxes protect from dust and debris and are integrated into the frame, while the built-in differential gears provide smooth cornering. This is reinforced by 4-wheel double wishbone suspension with CVA oil dampers and a two-piece tie rod steering setup with the servo on the left for excellent response. Two-piece wheels are joined by ST block bubble tires, and a range of Hop-Up Option parts are available to hop-up your model. |

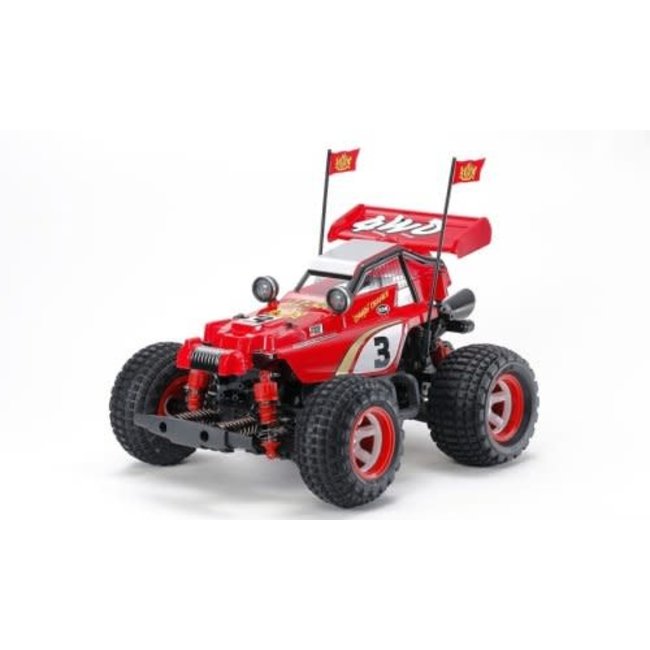

 ★The legendary Hotshot body is reinterpreted in polycarbonate, and makes a great pairing with the oversized tires. |
 |
 ★This image gives a closer look at the front double wishbone suspension, which employs high performance CVA oil dampers. |
|

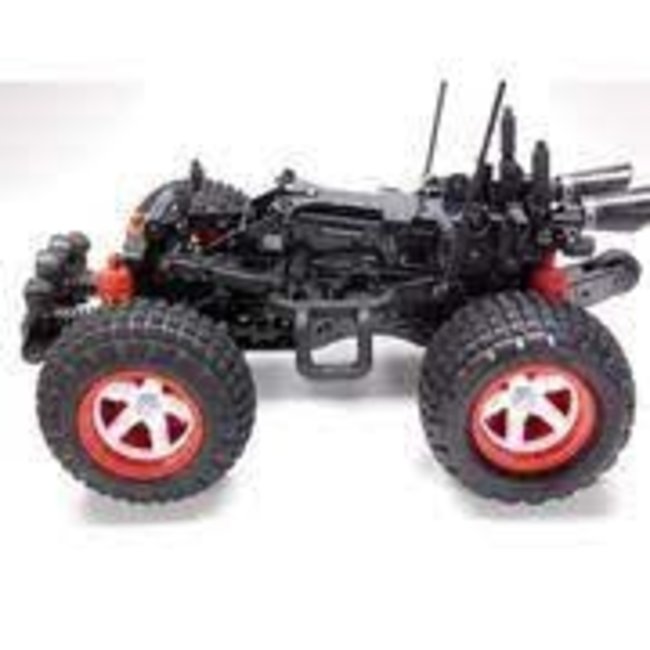

 ★Positioned behind a side guard in the center of the monocoque chassis, the motor powers the model via a gear-driven setup. |
 |
|
 |
|
★Left: Wide tread gives superb stability, even when wheelie-ing. Like the front, the rear setup is also double-wishbone with CVA dampers. ★Right: These exciting two-piece wheels utilize red rims and white spokes to match the body colors. ST bubble block tires give a capable drive. |
 |
|
 |
|

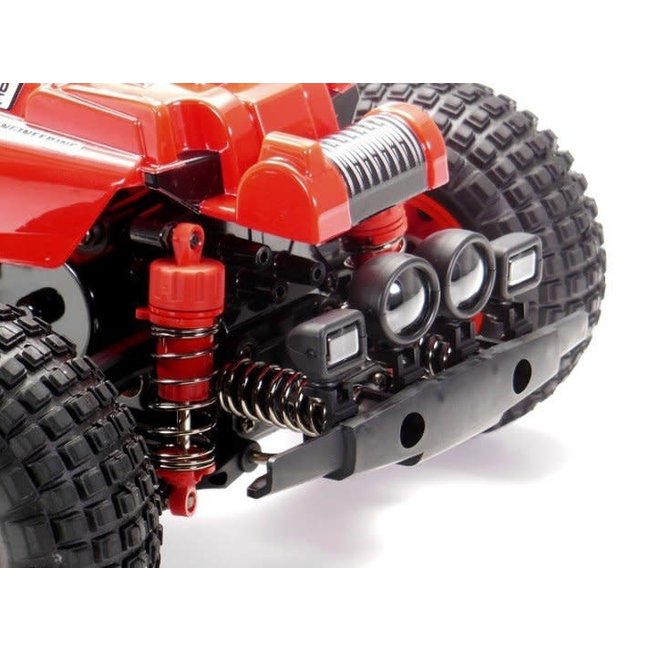

★Left: Depictions of big megaphone design exhaust tips add real character to the model, and a wheelie bar helps prevent it tipping during wheelies. ★Right: Four each of square and round light pods are included, and can have separately sold LEDs installed to give your model a fresh look! |
| Specifications ●Length: 345mm ●Width: 244mm ●Height: 191mm ●Tread: 188mm (Front), 184mm (Rear) ●Tire Width/Diameter: 46mm/99mm (Front), 56/99mm (Rear) ●Gear-Driven 4WD ●Monocoque Frame ●3-Bevel Differentials ●2-Piece Steering Tie-Rod ●Front & Rear Double Wishbone Suspension ●CVA Oil Dampers ●Gear Ratio = 18.03:1 ●Type 540 Motor ●Requires Electronic Speed Controller (separately sold) |
| Separately Required Items ●2-Channel R/C Unit with ESC ●Battery Pack & Charger ●R6/AA/UM3 batteries for transmitter |
