Electric R/C Car Series no.678
1/10 R/C Comical Avante (GF-01CB)
Item No: 58678

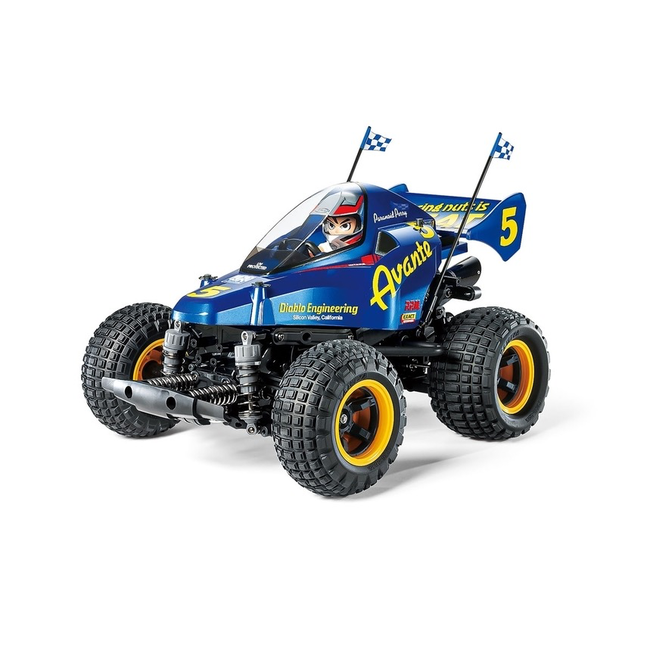

Length: 345mm. Image shows painted and assembled kit.
| Comical Avante! This R/C model assembly kit creates a 4WD buggy, with a lightweight and durable stylized polycarbonate version of the legendary Avante body. Paint it up in iconic Avante metallic blue, apply the familiar stickers, and voila! A new, Comical Avante! A T-shirted figure is included in the kit for installation at the wheel, as are left and right flags, plus depictions of stylish megaphone muffler ends. The GF-01CB chassis is a gear-driven unit that provides a thrilling drive and super wheelies when you jam on the throttle. |
 ★The charm of the legendary Avante is encapsulated in this bold new body design, sure to thrill R/C veterans and newcomers alike! |
 |
 ★This image shows the model viewed from the rear, with the chequered flags left and right giving the model a nice accent. |
|
 ★An figure is included in the kit for assembly. Choose from a multitude of stickers to get the figure looking just how you want. |
 |
|
 |
|
★Left: Give your model a totally new look by installing separately sold LEDs! This image shows round polycarbonate cases. ★Right: Squared off polycarbonate cases are also included, as shown here. Use whatever combination you feel suits your car! |
 |
|
|
★Left: The rear end is home to a pair of stylish parts depicting "megaphone" mufflers to give your car that bit of extra edge! ★Right: Why not take a look at the Comical Avante in action? We have a video on the official Tamiya YouTube page awaiting your viewing pleasure... |
| GF-01: Seriously Stable 4WD This gear-driven 4WD chassis is based around a lightweight and tough monocoque frame, with power provided by the centrally-positioned motor. Sealed gearboxes protect from dust and debris and are integrated into the frame, while the built-in differential gears provide smooth cornering. This is reinforced by 4-wheel double wishbone suspension with CVA oil dampers and a two-piece tie rod steering setup with the servo on the left for excellent response. Two-piece wheels are joined by ST block bubble tires, and WR-02 or GF-01 Hop-Up Option parts are available to hop-up your model. |
 |
|
 |
|
★Left: The GF-01CB chassis has a wide stance for superior balance, even during wheelies. It's compatible with WR-02 and GF-01 Hop-Up Options. ★Right: This cross section of the monocoque gives a close-up on the gear-driven powertrain, which supplies reliable and smooth four-wheel drive. |
 |
|
 |
|
★Left: Four-wheel double wishbone suspension employs CVA oil dampers to ensure that your model can take plenty of bumps in its stride. ★Right: Yellow rims and dark gray spokes are a winning combination. New ST block bubble tires will give a drive to remember! |
| Specifications ●Length: 345mm ●Width: 240mm ●Height:174mm ●Tread: 188mm (Front), 184mm (Rear) ●Tire Width/Diameter: 46mm/99mm (Front), 56/99mm (Rear) ●Gear-Driven 4WD ●Monocoque Frame ●3-Bevel Differentials ●2-Piece Steering Tie-Rod ●Front & Rear Double Wishbone Suspension ●CVA Oil Dampers ●Gear Ratio = 18.03:1 ●Type 540 Motor ●Requires Electronic Speed Controller (separately sold) |
| Separately Required Items ●2-Channel R/C Unit with ESC ●Battery Pack & Charger ●R6/AA/UM3 batteries for transmitter |
MANUAL DOWNLOAD
