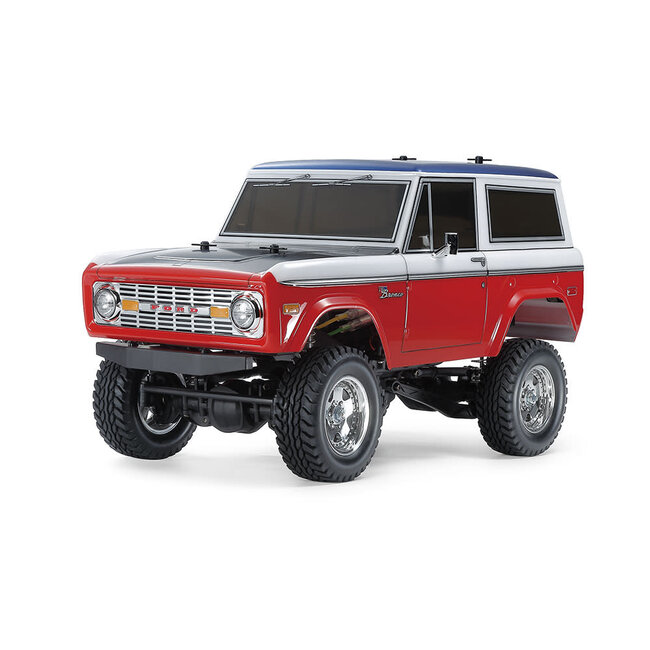

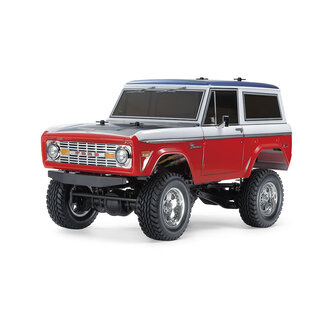

The first generation Ford Bronco was relatively compact and extremely capable off-road, and this 4WD car joined numerous races. This R/C model assembly kit recreates the Baja Bronco, which was sold from 1971 to 1975 to commemorate victory in a major desert race. Its polycarbonate body captures the 1973 Bronco form in style, with a black sticker to use on the engine hood, and plated parts for the front grille, light covers and side mirrors. It can be paired with separately sold LEDs to light up the front and rear.
CC-02 Chassis - Off Road, Evolved
Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with plated five-spoke wheels and grippy block pattern tires, and is setup for the 242mm S wheelbase.
Specifications
★Length: 395mm, width: 196mm, height: 215mm ★Wheelbase: 242mm ★Tread: 160mm (front), 163mm (rear) ★Tire width/diameter: 33/90mm (front & rear) ★Ladder frame ★Longitudinal motor, shaft-driven 4WD ★3-bevel differential gears ★4-link rigid suspension (front & rear) ★Gear ratio = 17.33:1 (using kit-standard 16T pinion) ★Type 540 motor ★Contact your local Tamiya Agent regarding the ESC
Separately Required Items
★2-channel R/C system ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger
Â
Â
The boxy early Bronco body is recreated in polycarbonate.
A gleaming plated front grille adorns the front.
Side mirrors are separately molded parts.
Taillights use separately molded light cases that are compatible with LEDs (sold separately).
5-spoke plated wheels are paired with block pattern tires.
The front-midship motor is paired with a central gearbox, and provides power to the front and rear via propeller shaft.
4-link rigid suspension has axle housings front and rear, each with 4 plastic link arms as well as oil dampers.
Axle housings contain 3-bevel differential gears, which can be locked with re-assembly.
