Special Edition R/C Product
1/10 R/C Fire Dragon (2020)
Item No: 47457

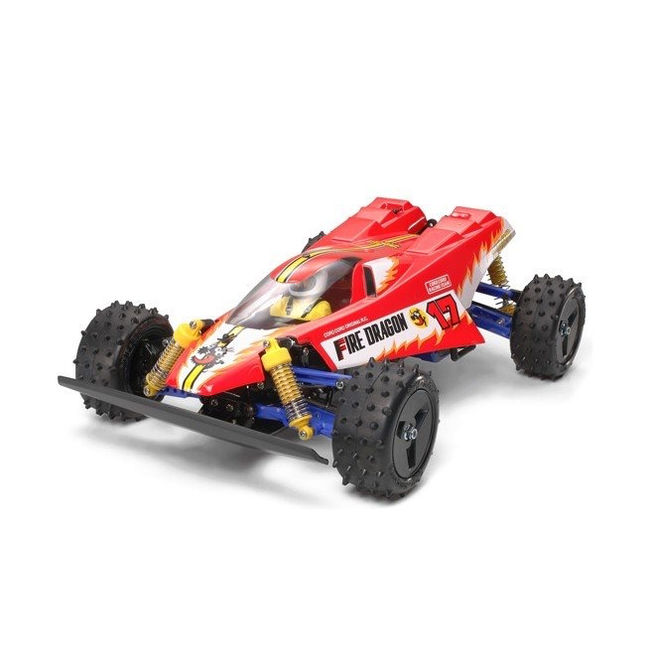

Length: 390mm. Image shows painted and assembled kit.
| Light a Fire! This is an updated re-release version of the Fire Dragon, a 4WD buggy originally sold in 1989 and based upon a car in the popular 1980s Japanese comic "Rajicon Boy." Its polycarbonate body features a distinctive swept form, is pre-painted in red, and is even pre-cut for your convenience - just apply the included stickers. An unpainted driver figure is also included for installation in the cockpit. The chassis is an efficient shaft-driven 4WD unit, with front and rear gear differentials in sealed gearboxes, plus 4-wheel independent double wishbone suspension featuring CVA oil dampers. Spike tires give plenty of grip both on- and off-road. |
Â
| Efficient Shaft-Driven 4WD The Fire Dragon (2020) chassis features a shaft-driven 4WD drivetrain married to a lightweight and tough bathtub frame that employs front and rear gearboxes with the suspension attached to them; that suspension utilizes upper "I" and lower "H" arms, and offers a ground-hugging drive. Both gearboxes house a gear differential, and are compact to ensure plentiful ground clearance. The kit also features an aluminum motor mount for superior heat dissipation. |
Â
 |  |  | | ★Left: The stylish, streamlined body features distinctive flared sides. It is pre-painted in red and pre-cut for convenience. ★Right: CVA mini oil dampers are employed on the front suspension. A stabilizer helps combat roll in corners for a stable drive. |
Â
 | |  | | ★Left: A polycarbonate dust cover for the chassis helps protect the innards from the potentially damaging effects of dust and dirt. ★Right: The Fire Dragon's rear suspension also features CVA oil dampers (short type), for smooth and consistent suspension stroke. |
Â
| Specifications ★Length: 390mm, Width: 240mm, Height: 139mm ★Wheelbase: 260mm ★Minimum ground clearance: 23mm ★Tread: 203mm (front), 194mm (rear) ★Bathtub frame ★Tire width/diameter: 38/83mm (front and rear) ★Shaft-driven 4WD ★3-bevel differential gears (front and rear) ★3-piece steering tie-rod ★4-wheel independent double wishbone suspension ★Gear ratio = 7.68:1 ★Type 540 Motor ★Electronic Speed Controller (ESC) is sold separately. |
Â
| Separately Required Items ★2-channel R/C system w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger |
