The Big Knight Hauler is here

This 1/14 scale R/C Tractor Trucks Item features an originally designed truck body. Hood, large roof spoiler, interior, and lights (clear orange parts), which have been artistically rendered in exquisite detail. Grill, tank, exhaust and steps have been beautifully rendered with metal plated parts. Kit includes stickers and 540 motor. 7.2V battery pack and R/C system are sold separately. Powered by it's motor driven with a 3-speed transmission, which has no problem turning the dual rear axles. Each axle is supported with leaf spring and shocks. The metal C-Channel ladder frame, keeps the power to the pavement.

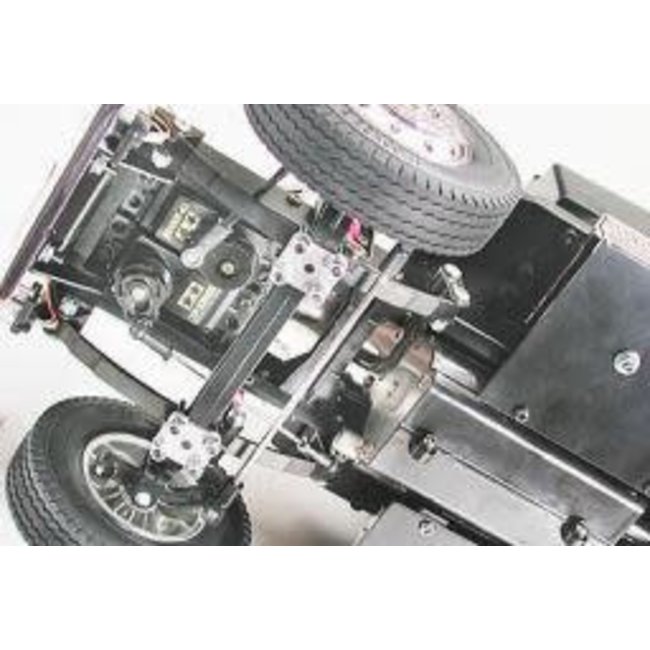

This R/C model assembly kit recreates a massive boxy, customized truck like those seen in North America. The model's ladder frame chassis features aluminum side channels with resin cross members and is equipped with a highly realistic suspension utilizing metal leaf springs and friction dampers. A front-mounted motor and 3-speed transmission power the two rear wheel axles, which are fitted with built-in differentials to enable smooth cornering. A 4-channel R/C system and multi-function unit allow you to drive the vehicle and experience realistic lights, sounds and vibrations.

The realistic, lengthened body features newly-designed parts depicting front and rear bumpers, front grille, air cleaners and muffler covers. Muffler covers are made from metal tubing. Features a tough ladder frame construction with aluminum side channels and plastic cross members. Realistic drivetrain setup sees the front mounted motor powering twin rear axles. Metal leaf spring dampers with built-in coil springs provide durable suspension. Newly-designed 1/14 scale driver figure included. Coupler is included to enable connection with any currently available Tamiya 1/14 scale trailer.

Tractor Truck Multi-Function Control Unit

Tamiya presents incredible sound and action options for the Tractor Truck Knight Hauler or any 1/14 scale R/C Tractor Truck with the all-new R/C Tractor Truck Multi-Function Control Unit. This system, when mounted on the truck is located inside the cabin with speaker to the front and the MFC-01 unit to the rear. The control unit is mounted inside the left tool box for easy access.

A 4-channel R/C system activates all functions

By using the transmitter sticks and the trims you can control the truck movements (forward/backward running and turns) and also the horn, the support legs when item 56505 Motorized Support Legs is mounted (sold separately), the headlights, position lamps, roof lamps and speed indicators. You can also activate the back lamp, tail lamps and blinkers/hazard lamps as well as engine revving.

20 LED for 9 light functions

All lamps employed with the multi function unit are high brightness type LED. They are employed to reproduce headlights, position lamps, roof lamps, speed indicators, fog lamps, back lamp, tail lamps and blinkers/hazard lamps, which can be turned on/off with the transmitter.

Features

• Enjoy that customised mood, enhanced by metal plated parts such as the front bumper and radiator grille.
• The roof also features plated horn and light bezel parts. LEDs can be inserted to light up your model!
• Plated side mirror parts also include kerb mirrors. Moving metal stays allow adjustment of mirror position.
• Further detail is added to the oversized air cleaners, with photo-etched parts depicting air intakes.

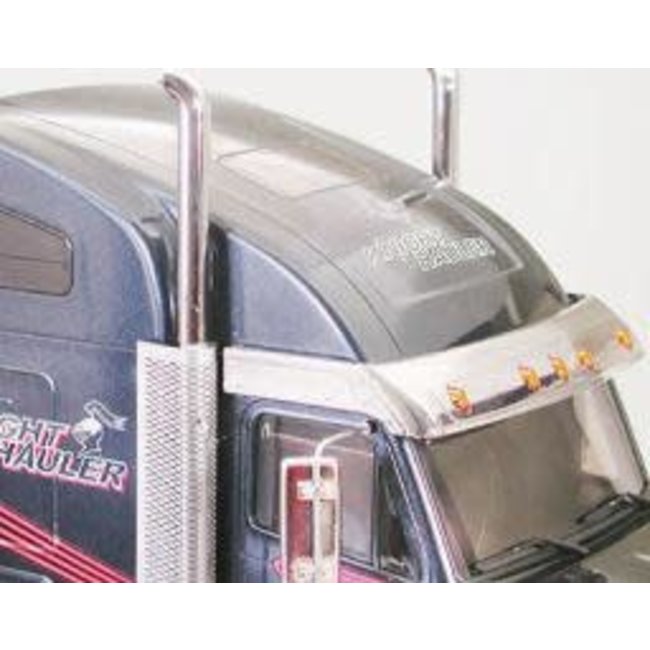

• The cab oozes a custom mood, enhanced by parts such as the bulky metal plated sun visor.
• Lowered step provides storage location for MFC unit. Fuel tanks are also mounted low under the body.
• Use the coupler to attach any of Tamiya's 1/14 scale trailers, and listen out for the different engine sound.
• Model utilizes metal pipes to depict mufflers, while their optional covers are gleaming metal-plated resin.
• Low-down rear bumper offers multiple lamp positions, compatible with LEDs. Fender parts are included.

The Knight Hauler can be equipped with 4 different semi-trailers (available separately)

Tamiya proposes 4 different semi-trailers that can be adapted to the Knight Hauler: A boxcar semi-trailer, a tank-trailer, a flatbed semi-trailer and a pole-trailer. When coupled with the Knight Hauler, you obtain a 1m long realistic truck. When using the multi function unit, which contains an electronic speed controller, you can run your truck very slowly. With sound and light effects, you will swear this is an actual truck.

Boxcar Semi-Trailer ITEM 56302 Tank-Trailer ITEM 56303 Flatbed Semi-Trailer ITEM 56306 Pole-Trailer ITEM 56310

Tamiya Color Spray For The Knight Hauler TS-64 Dark Mica Blue ITEM 85064

Basic specifications of the Knight Hauler

Total length: 630mm, Total width: 186mm, Clearance: 19mm, Weight Fully-Equipped: about 3,1kg (without multi function unit) Wheelbase: 476mm Tread F/R: 156/138mm Chassis Material: Aluminum and polycarbonate plastic Chassis Shape: Ladder Type Frame Suspension: Front and Rear Rigid Axle w/Metal Leaf Springs Caster Angle-F/R: 0deg/0deg Camber Angle-F/R: 0deg/0deg Toe Angle-F/R: 0deg/0deg Damper: F/R Aluminum Dummy Dampers Drive train: 2-axle Transmission: 3-gear transmission (gear shifting operated via transmitter) Gear Ratio: 1st gear 32.49:1, 2nd gear 17.76:1, 3rd gear 10.66:1 Diff. gear system: F/R Bevel Gear Diff Motor: RS540 (standard in the kit) Tire Width: F/R both 22mm Tire Diameter: F/R both 88mm

U.S.A. Truck Required items (not included)

• 4 x AA Batteries
• 7.2v NiMh Battery
• NiMh Charger
• 2 x Servo
• Radio Transmitter & Receiver
• Electronic Speed Controller (ESC)
• Optional: Tamiya semi truck multi function unit #56511
• Recommended Tools:
• Large Philips head screw driver
• Small Philips head screw driver
• Modelling knife
• Long nose pliers
• Side cutters
• Scissors
• Tweezers
• Plastic cement
• Instant cement
• Synthetic rubber cement
• File

Important: If you are going to use A Tamiya truck with A ( mfc-01 )  MFU (Multi Function Unit). It is strongly recommended   only use an analogue remote controller like the Futaba T6L .
