Electric R/C Car Series no.698
1/10 R/C Lotus Europa Special (M-06)
Item No: 58698

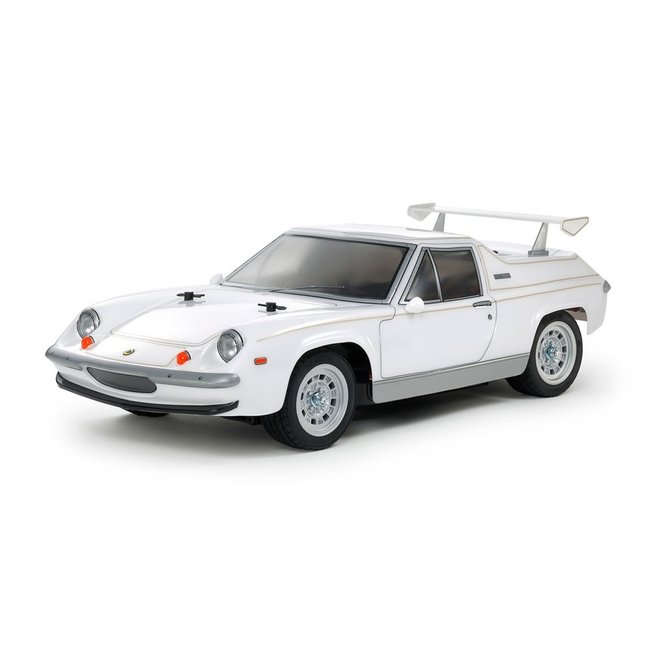

Length: 390mm. Image shows painted and assembled kit.
| A Special One The Lotus Europa debuted in 1966, showcasing what was then a revolutionary midship layout, with a lightweight FRP body, and making a global splash thanks in part to its top-class cornering. In 1972, perhaps the finest model in the series was released - the Europa Special with 126hp, 1.6-liter inline-4 engine, optional 5-speed transmission and aluminum wheels. This R/C model assembly kit recreates the Europa Special developed by legendary Lotus founder Colin Chapman. A polycarbonate body captures the sharp, low-slung form in style, with separate parts for light cases, side mirrors and rear wing. Stickers are included for decoration of the model, including depiction of stylish gold pinstripe details. |
Â
 ★The distinctive, low-profile Europa Special form is captured in style by a lightweight polycarbonate body. |
 |

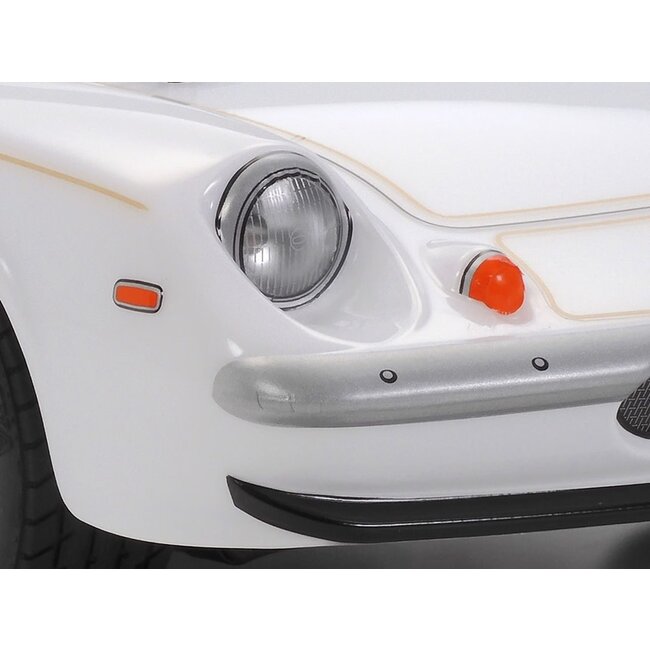

 ★Separate parts are included for headlight cases; they are compatible with separately sold LEDs. |
|

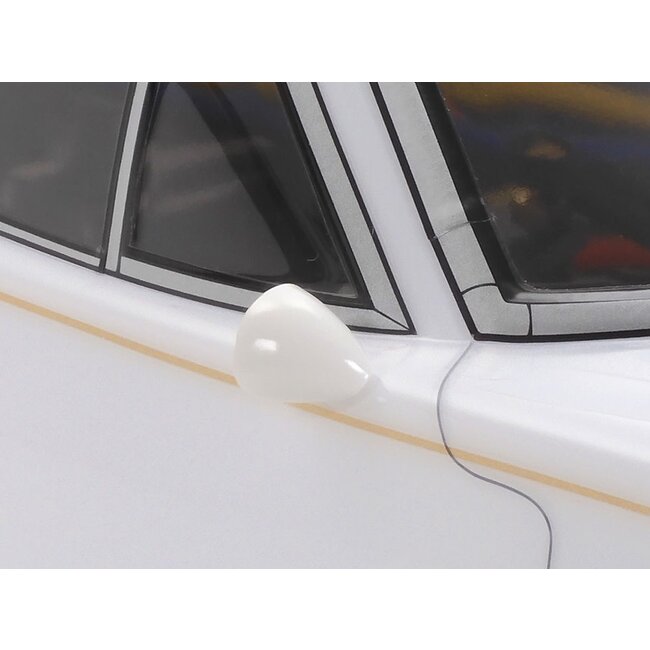

 ★Dedicated, separately molded plastic depictions of the minimalistic side mirrors add further realism. |
Â
 |
|
 |
|

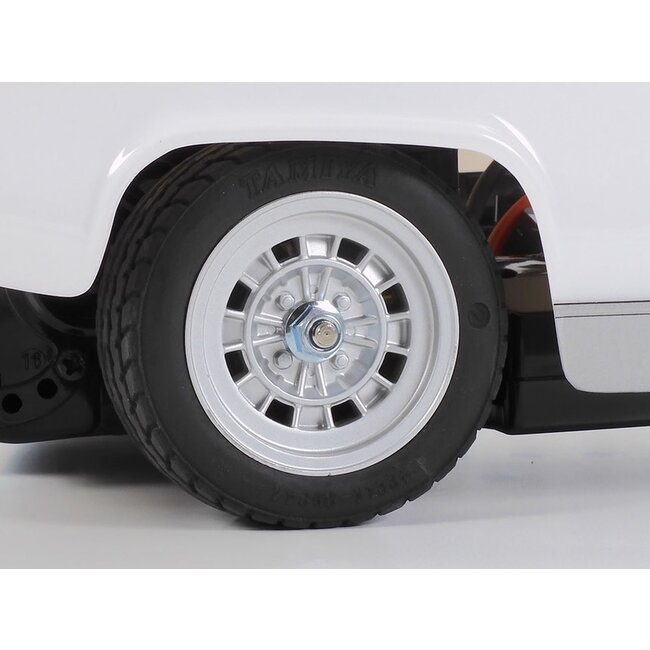

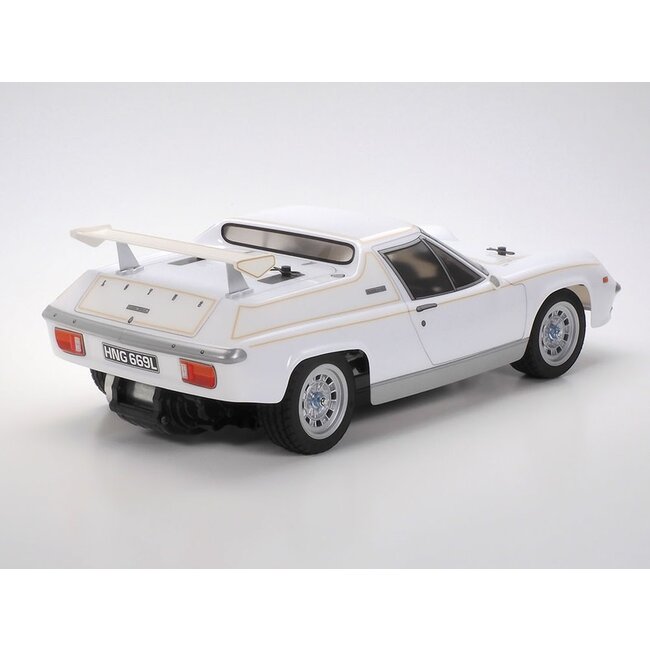

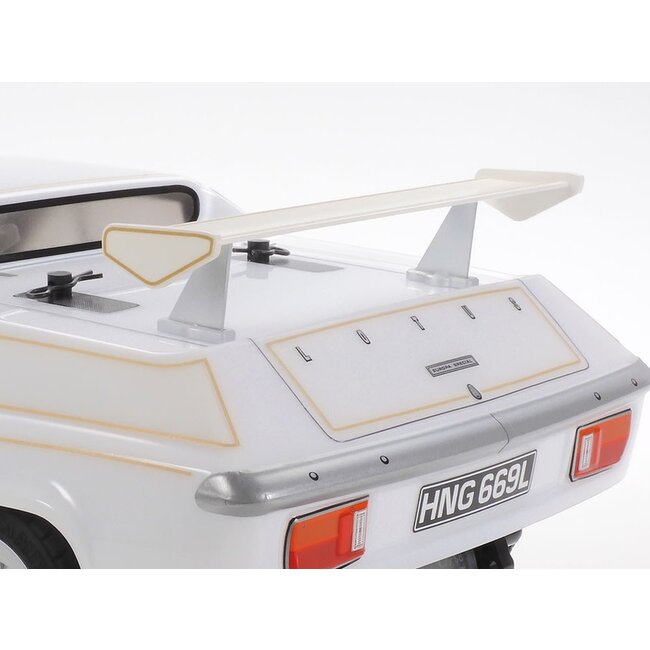

★Left: A depiction of an optional rear wing is also included. Stickers are provided for gold pinstripes. ★Right: Dish type wheels are perfect for this classic sports car; treaded semi-pneumatic tires have inserts. |
Â
| Great RR Performance from the M-06 The M-06 chassis features a rear-mounted motor, rear-drive setup and has a longitudinally-mounted battery pack, with R/C equipment positioned on either side for optimum balance and a low center of gravity. 4-wheel double wishbone suspension uses dish design wheels, equipped with 60D radial tires at the front and 60D super radial (hard) tires at the rear. In addition, a 3-piece steering linkage offers nimble handling response. |
Â
 ★The M-06 chassis' three-piece steering linkage ensures you have great control and direct steering feel. |
|

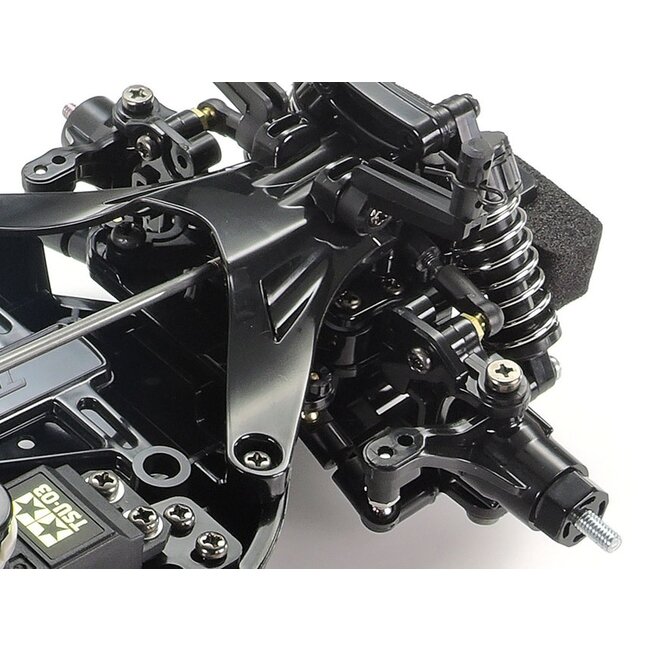

 ★A close-up on the independent double wishbone front suspension setup, which employs friction dampers. |
|

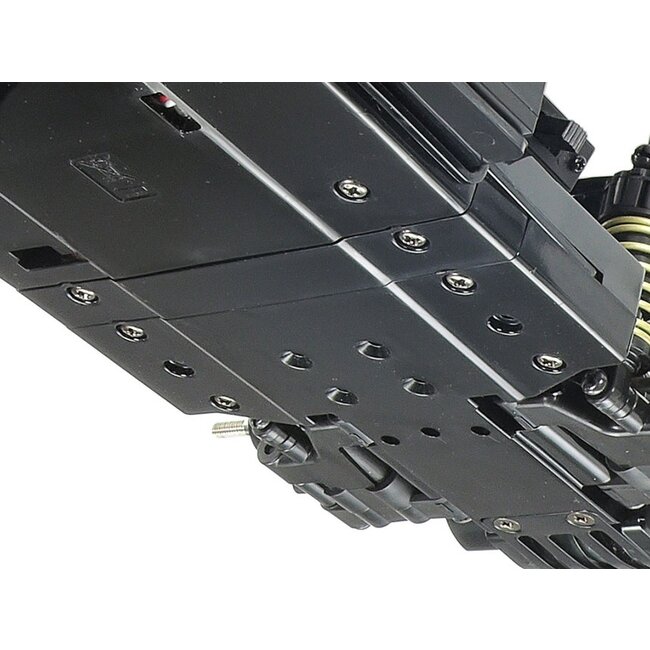

 ★With rear re-assembly, 210mm, 225mm and 239mm wheelbases are possible. This model uses 225mm. |
Â
 |
|
 |
|

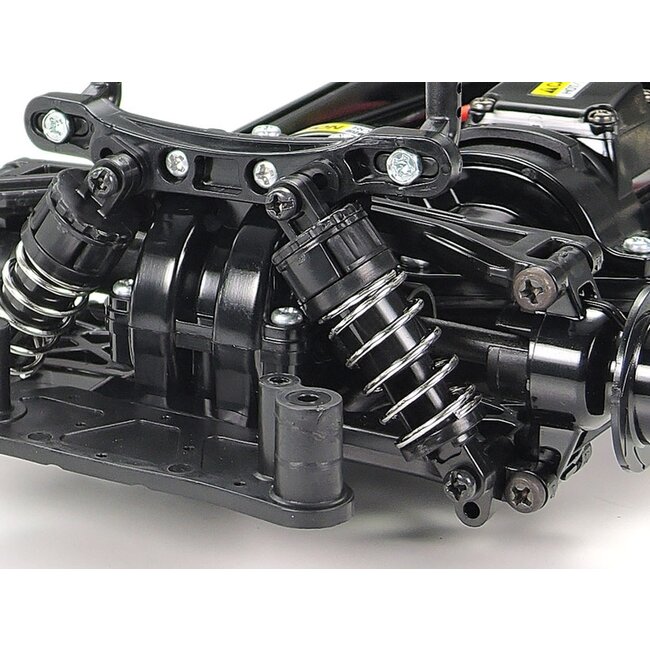

★Left: The rear-mounted motor, rear-wheel drive setup provides the model with excellent traction at the rear. ★Right: A close-up on the rear suspension. Use separately sold pinion gears to achieve different gear ratios. |
Â
| Specifications ★Length: 390mm, width: 176mm, height: 114mm ★Wheelbase: 225mm ★Tread (front/rear): 138mm ★Rear-motor, rear-wheel drive ★3-bevel differential gear ★3-piece steering tie-rod ★4-wheel independent double wishbone suspension ★Front/rear friction dampers ★Gear ratio = 5.8:1 (using kit-standard 20T pinion) ★Tire width/diameter (front/rear): 25mm/59mm ★Type 540 motor ★Requires an Electronic Speed Controller (sold separately) |
Â
| Separately Required Items ★2-Channel R/C System w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger |
