Description

Electric R/C Car Series no.592
1/10 R/C Rock Socker (CR-01)
Item No: 58592

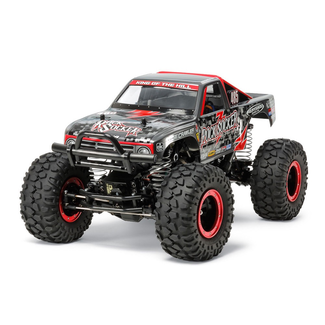

Length: 435mm. Image shows assembled and painted kit.

Sock it to 'em Good！
This R/C model assembly kit recreates a rock crawling vehicle like those seen in popular U.S. events where the massive machines vie for time or crawling ability over impossible-looking obstacles. The lightweight yet tough polycarbonate racing truck body comes with a host of marking stickers for decoration. The tough CR-01 chassis is up to the rock crawling challenge, its durable ladder frames featuring aluminum side channels and resin cross members as well as a 4-link rigid suspension with oil dampers and progressive springs. The motor is placed in a central position, with planetary gears enabling low-speed shaft-driven 4WD. Front and rear differentials can be locked. Large-diameter tires feature a tread pattern which extends to the sidewalls, and are fitted to beadlock wheels.

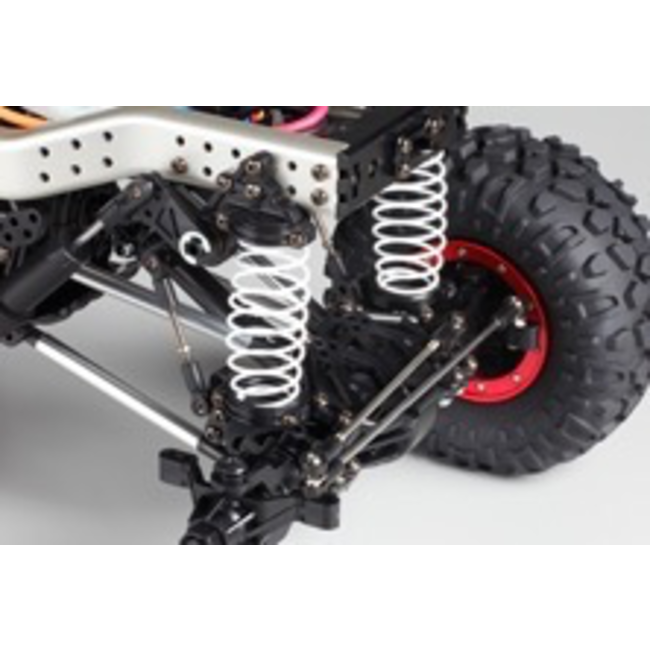

■Left: Short progressive springs team up with the 4-link rigid suspension for amazing climbing ability.

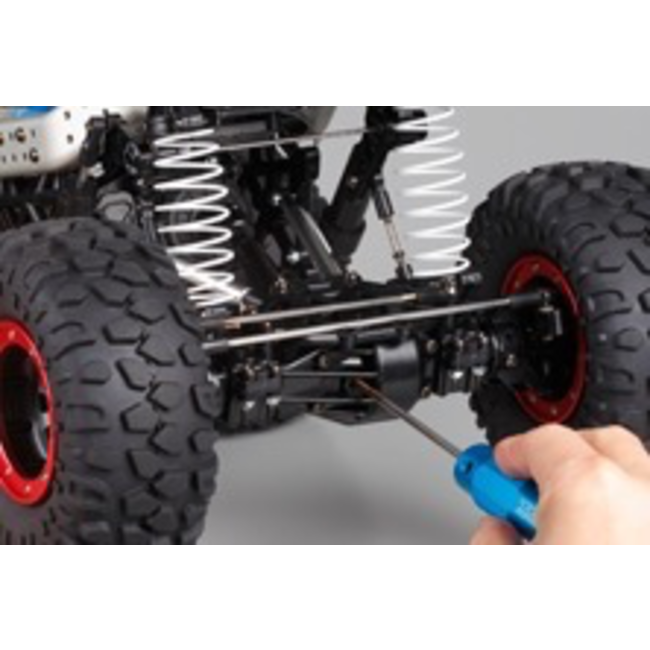

■Right: Front and rear axle housings contain 3-bevel diffs which can be locked without opening up the housings.

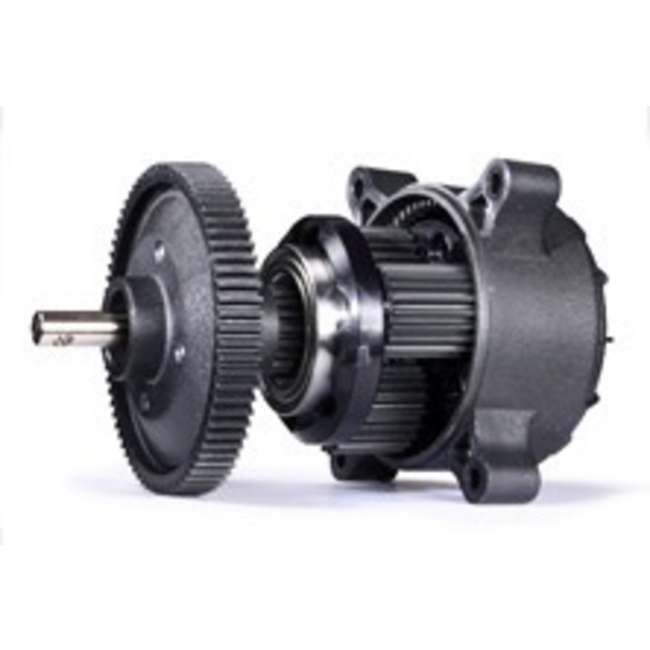

■Left: The compact gearbox transfers power to all four wheels and its small size enables a better center of gravity.

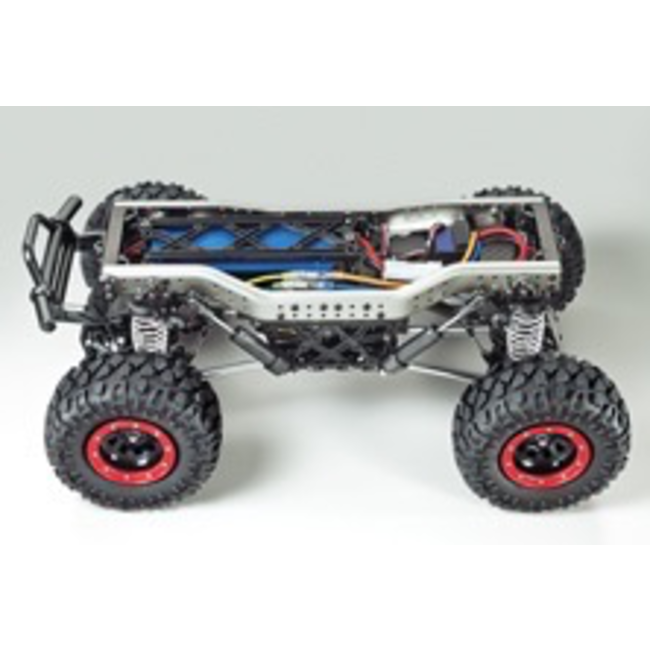

■Right: A plethora of metal parts used around the CR-01 chassis make for a durable and effective drive.

Specifications
●Length: 435mm ●Width: 265mm ●Height: 215mm ●Weight: 2,309g (not including R/C equipment and battery pack) ●Wheelbase: 288mm ●Tread (Front & Rear): 208mm ●Tire Width/Diameter (Front & Rear): 57/125mm ●Aluminum & Resin Ladder Frame ●Shaft-Driven 4WD ●Front/Rear 3-Bevel Differentials (locked as standard) ●Planetary Gearbox ●Front/Rear 4-Link Rigid Suspension ●Front/Rear CVA Shock Units ●Gear Ratio = 32.4:1 ●Type 540 Motor ●Requires Electronic Speed Controller (sold separately)

Separately Required Items
●2-Channel R/C Unit with ESC　●Battery Pack & Charger ●R6/AA/UM3 batteries for transmitter

MANUAL DOWNLOAD

TAMIYA ROCK SOCKER 58592 1/10 SCALE 4X4 OFF ROAD ROCK CRAWLER CR-01 CRAWLER CHASSIS KIT
