Electric R/C Car Series no.679
Suzuki Swift sport (M-05)
Item No: 58679

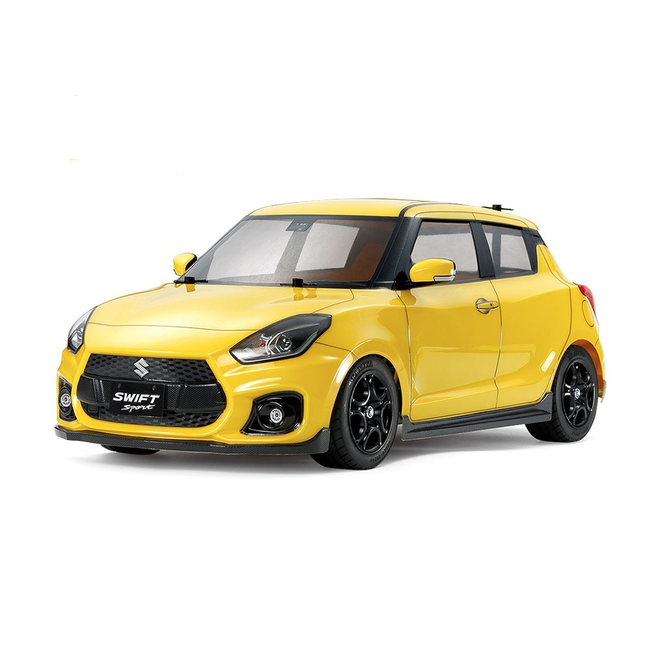

Length: 381mm. Image shows painted and assembled kit.
| The Hottest Hatch? Suzuki's popular hot hatch underwent a model change in 2017, receiving a revamped body and a 140hp 1.4-liter turbocharged engine driving the front wheels. This R/C model assembly kit depicts that car, with a polycarbonate body to recreate the stylish Swift sport form. A full set of stickers is included to recreate details across the body, and the model is based upon the proven M-05 chassis. |

 |
 |
 |
|

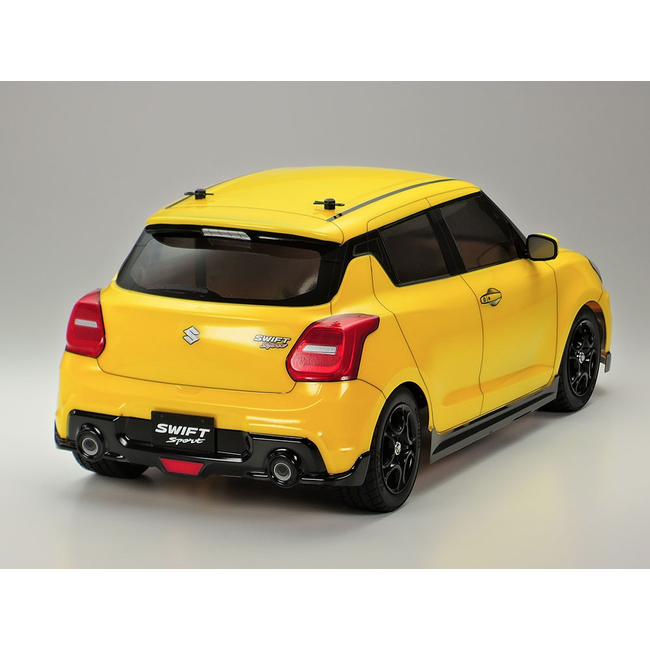

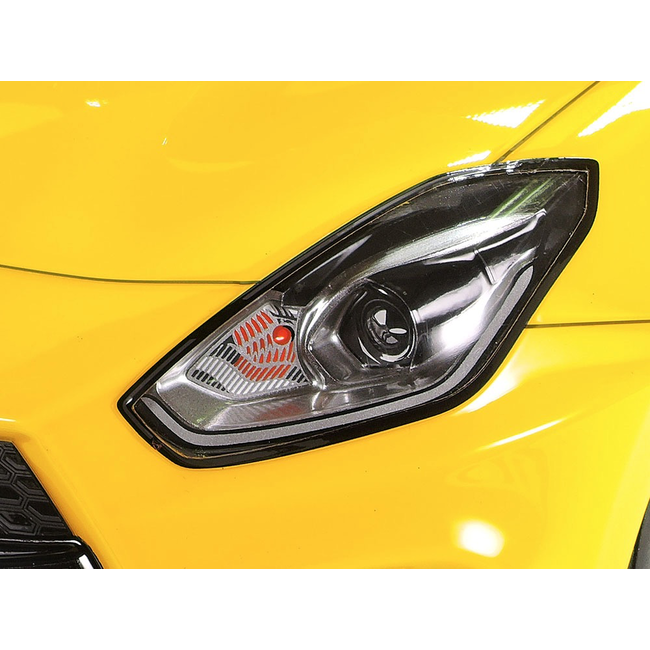

‚òÖLeft: The muscular Swift sport body with twin exhausts is molded artfully in lightweight polycarbonate. ‚òÖRight: Polycarbonate light cases are separate parts, and provide a detailed accent at the front. |

 |
|
 |
|

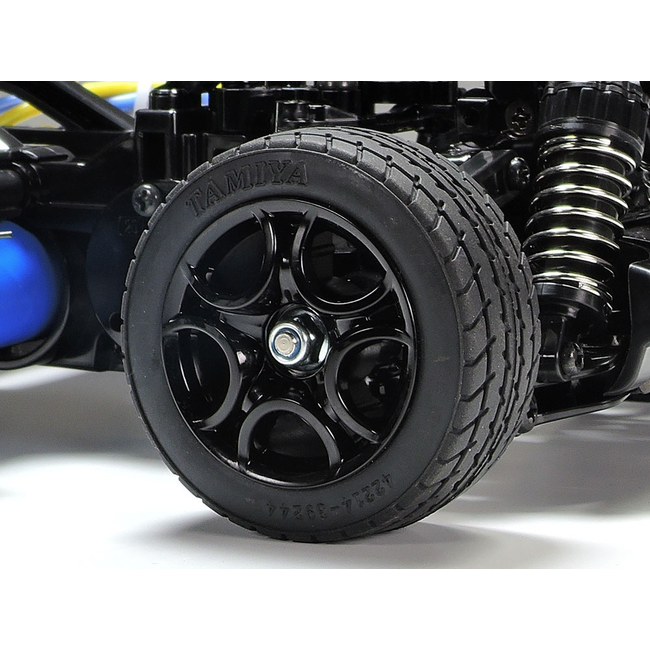

‚òÖLeft: Separately molded side mirrors with integrated turn signals are dedicated parts for this model. ‚òÖRight: Black 5-spoke wheels are a perfect foil for the brightly colored body. Tires have inner sponges. |

| M-05: Low Center of Gravity, High Performance! The front wheel drive M-05 chassis features a lightweight, narrow, durable, and easy-assembly semi-monocoque resin frame. Gearbox, motor, battery pack, receiver, servo and ESC are positioned for optimum weight distribution and a low center of gravity. Ground-hugging 4-wheel independent double wishbone suspension and the 3-piece steering linkage provide stable high-speed cornering. 5-spoke wheels are molded in black and have tires with realistic tread patterns and inner sponge. In this kit, the chassis is setup with the 239mm L wheelbase. |

 |
|
 |
|

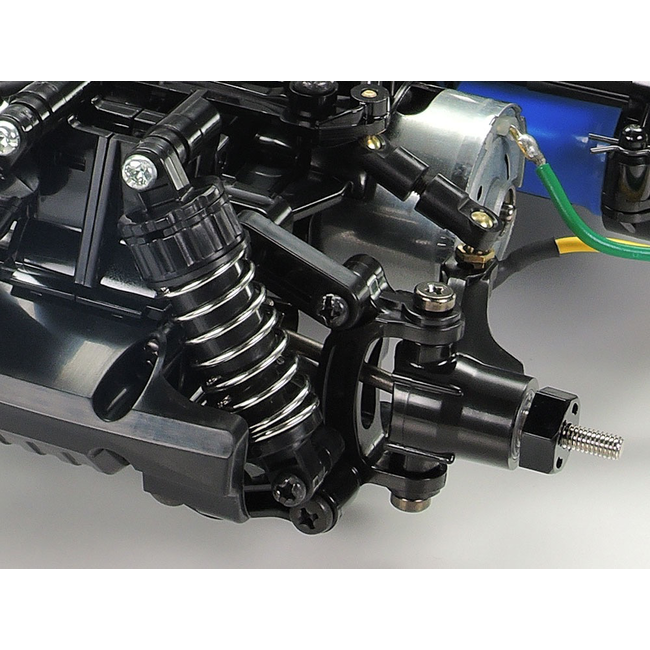

‚òÖLeft: A centerline steering servo is at the heart of the 3-piece steering tie-rod for superb response. ‚òÖRight: This image gives a closer look at the front double-wishbone suspension with friction dampers. |

 |
|
 |
|

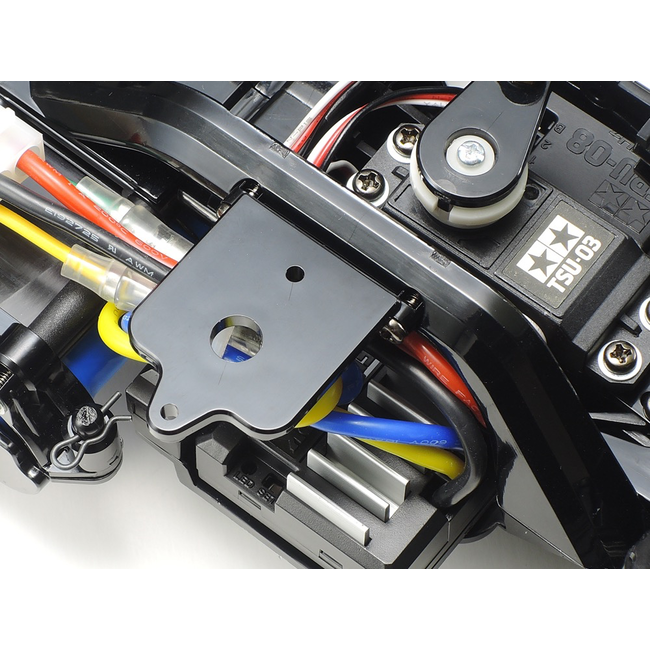

‚òÖLeft: The kit includes a transponder stay component, which is a must for those who want to race. ‚òÖRight: The rear section can be re-configured for three different wheelbases (this model: 239mm). |

| Specifications ‚òÖLength: 381mm, Width: 167mm, Height: 145mm ‚òÖWheelbase: 239mm ‚òÖTread (Front & Rear): 138mm ‚òÖTire Width/Diameter (Front & Rear): 25/59mm ‚òÖMonocoque Frame ‚òÖ3-Bevel Differential Gear ‚òÖFront-Wheel 2WD ‚òÖ3-Piece Steering Tie-Rod ‚òÖ4-Wheel Double Wishbone Suspension ‚òÖ;Front & Rear Friction Dampers ‚òÖGear Ratio = 5.8:1 ‚òÖType 540 Motor ‚òÖRequires an Electronic Speed Controller (sold separately) |

| Separately Required Items ‚òÖ2-Channel R/C System w/ESC ‚òÖR6/AA/UM3 batteries for transmitter ‚òÖBattery Pack & Charger |

MANUAL DOWNLOAD
