Electric R/C Car Series no.632
1/14 R/C Team Hahn Racing MAN TGS (TT-01 Type-E)
Item No: 58632
Length: 438mm. Image shows assembled and painted kit.
| Hahn-tastic!!! This is an exciting R/C model assembly kit recreating the Team Hahn Racing MAN TGS truck which stars on the truck racing circuit in Europe. The realistic body is a 4-piece set made from lightweight and durable polycarbonate, with separately molded plastic side mirrors, coupler and rear bumper parts. The TT-01 Type-E chassis is a proven performer, and here is fitted with dedicated new wheels and tires for the model. |
| Evolved Chassis The bathtub frame of the evolved shaft-driven 4WD TT-01 Type-E has its motor and battery close to the ground for lower center of gravity and optimum balance. Mounted on the bathtub frame is a fiberglass reinforced nylon upper deck and gear covers improving rigidity, as well as a 3-piece tie rod providing a smoother steering action. The low center of gravity, great balanced design, 4 wheel double wishbone suspension system, and front and rear differential gears all come together to produce excellent operating ability. 70mm-diameter radial tires are paired with metal plated wheels developed just for this model; the high sidewalls make for forgiving turns. |

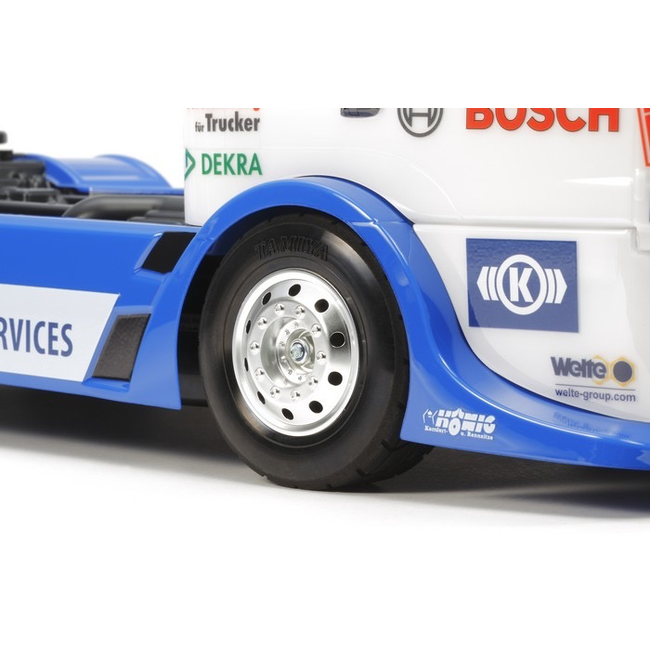

 ★Beatifully detailed plated wheels and 70mm-diameter tires were designed just for this model. |
 |
 ★Engine, turbocharger and frame are succinctly depicted. Side mirrors, coupler, etc. are separately molded. |
|
 ★Light cases for headlights are provided, and can be lit up with the aid of separately sold LEDs. |
 |
|
 |
|

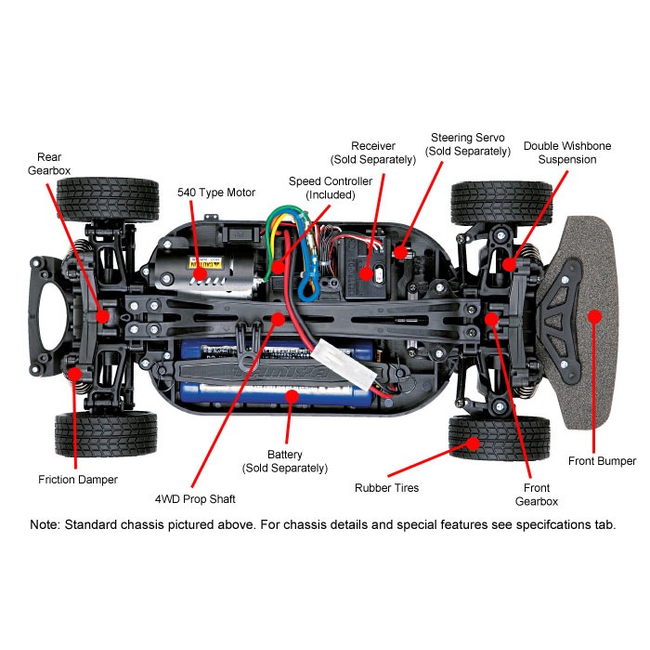

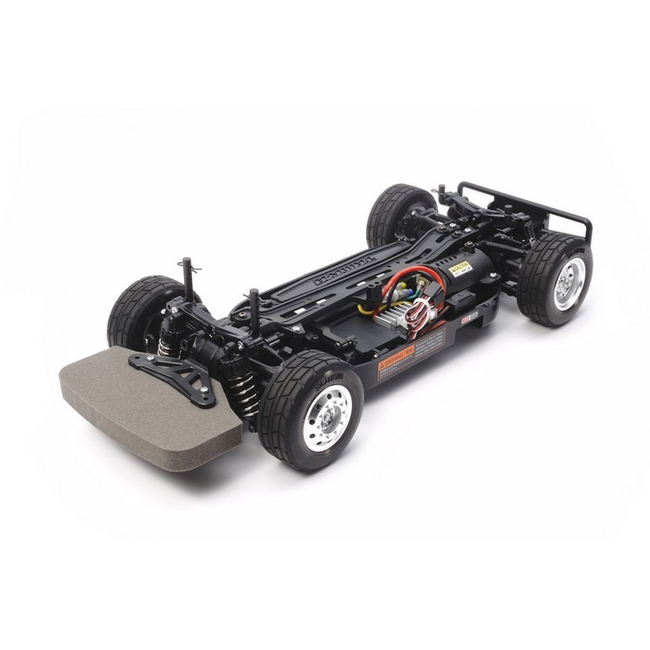

★Left: The TT-01 Type-E chassis is a tried and tested unit that offers controllable shaft-driven 4WD. Plenty of Hop-Up option parts are available! ★Right: The form of the tractor head is artfully depicted using a 4-piece polycarbonate body. Multiple stickers are included to recreate markings. |
| Specifications ●Length:438mm, Width: 190mm, Height: 207mm ●Wheelbase: 257mm ●Tire Width/Diameter: 28/70mm ●Bathtub Type Chassis Frame ●Longitudinally-Mounted Motor Shaft-Driven Full-Time 4WD ●F/R 3-Bevel Differentials ●3-Piece Steering Tie-Rod ●4-Wheel Double Wishbone Suspension ●F/R Friction Dampers ●Gear Ratio=8.35:1 ●Type 540 Motor ●Requires an Electronic Speed Controller (sold separately) |
| Separately Required Items ★2-channel R/C system with ESC ★Battery pack and charger ★Batteries for transmitter |
MANUAL DOWNLOAD
